H792x 3G/4G Router User Manual

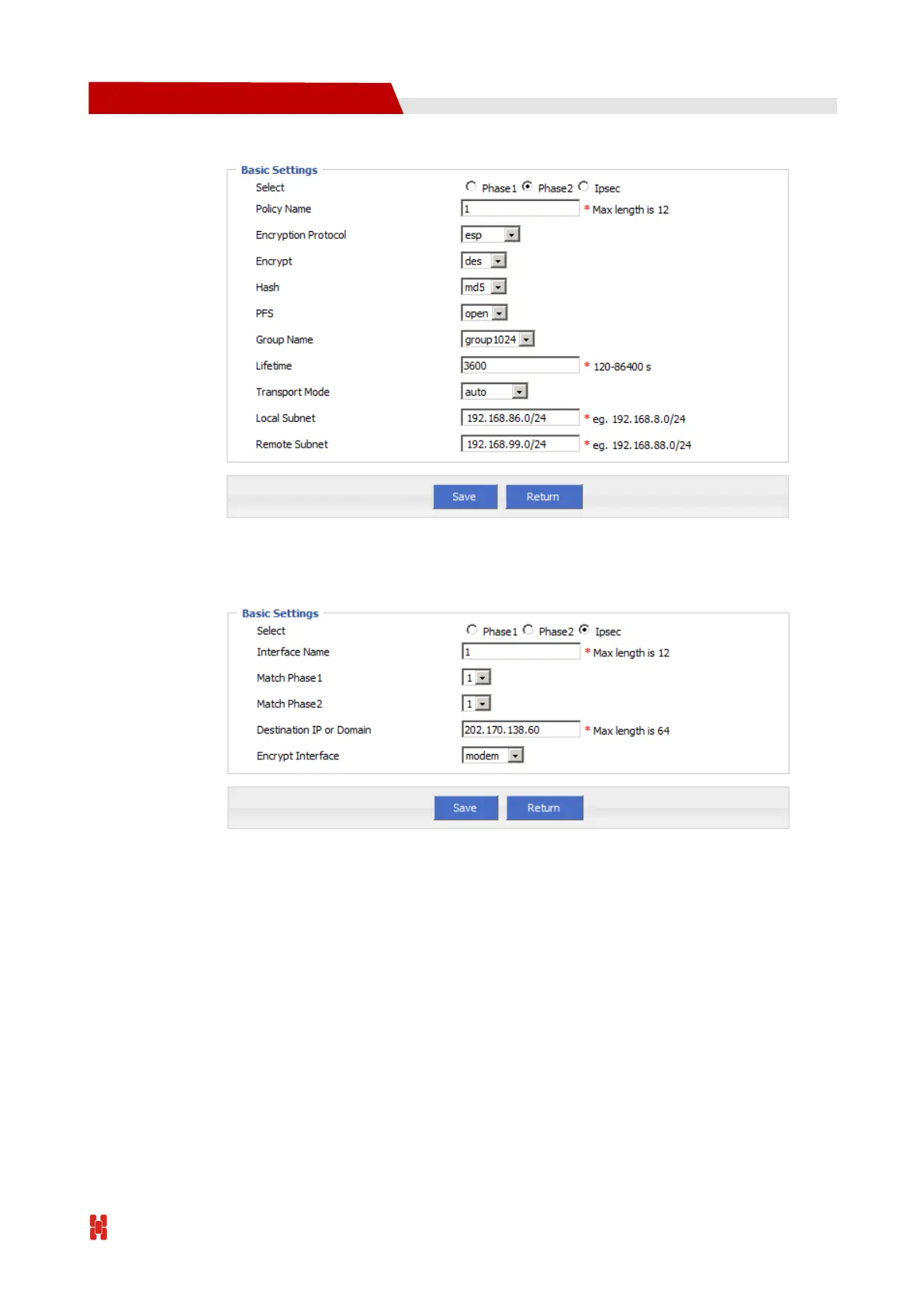

Figure 6-4 IPSec Phase 2
Figure 6-5 IPSec
Company router server should have same setting but the identity and subnet setting for
the company router server should be the opposite of those for H792x 3G/4G Router.
Result
After setting H792x 3G/4G Router and company router parameter, they can connect each
other by IPSEC, and ping peer subnet, you could check status by click “view” button.
