Appendix
User’s Manual, DU3310103-MRI / rev.3 - 02.05.2019
11-5
OUT gas sockets on gas
supply group
•
No. 1 sockets for O
2
• No. 1 sockets O
2
- AIR for active scavenger feeding
• No. 1 fresh gas connector for external use for ex. TO AND FRO (selectable
by apposite membrane keyboard on the front shelf - AUX).
Other
• Socket for recycle of exhaust monitor gas
• Connection for anaesthetic gas scavenging (optional device: active type, or
passive type)

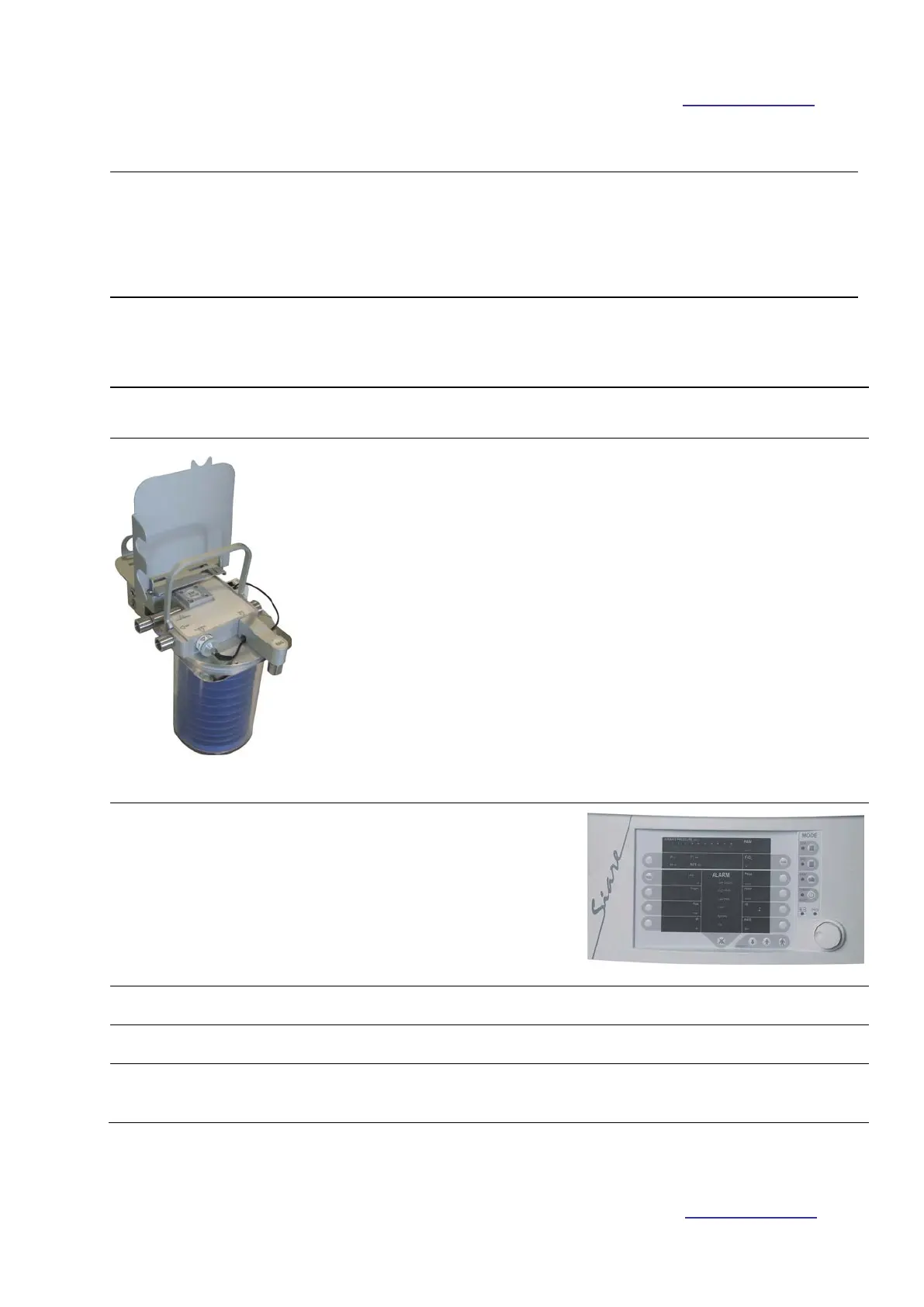

BREATHING SYSTEM
Compact system with automatic connections, easy dismountable and
autoclavable
It allows the ventilation in modality: real open circuit, semi-closed circuit, closed
circuit at low flows.
The system also allows the spontaneous and manual ventilation in case of
anaesthesia unit breakdown or machine off.
Top special CO
2
absorber canister of 1,5 Kg with rapid connection: this allows
canister replacement also during interventions (the canister is autoclavable and
reusable).
The recycling system is a selective type, hence the soda lime and fresh gas
consumption are reduced to the minimum.
The heated valves group reduces the condensation and heats the fresh gas.
The transition from one ventilation modality to another is completely controlled by
the ventilator without any user’s action on valves group.
LUNG VENTILATOR
User’s interface Dual colour display 165 x 145 mm with membrane keyboard and encoder
Control modality Electronic by microprocessor
Dead space
compensation system
Automatic
