Control panel for manual ventilation

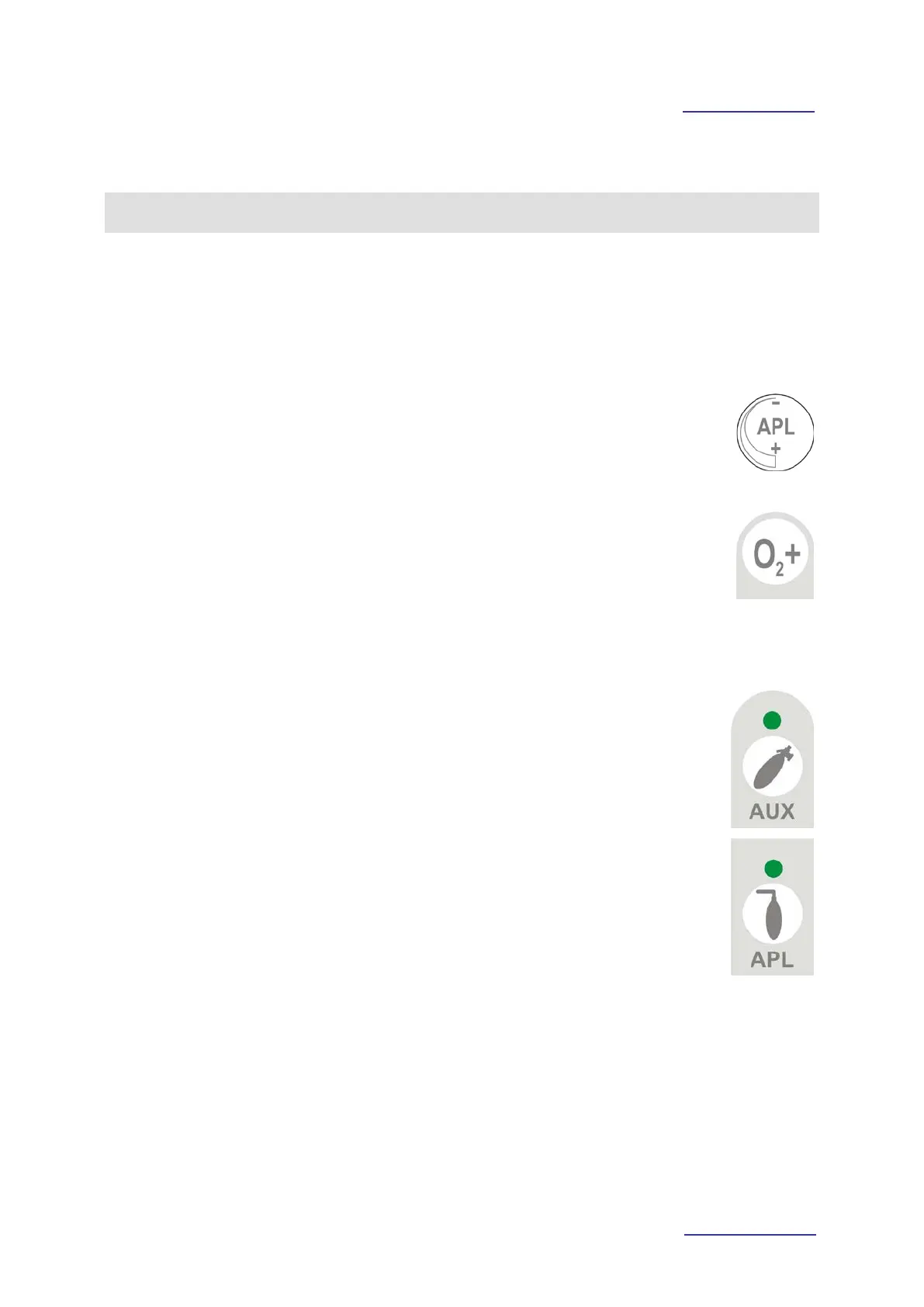

On the left side of work-shelf it is positioned a small control panel to
manage all the operations of manual ventilation with the valves group.
This panel includes the following functions.
•
The APL valve for the adjustment of airways maximum pressure
during manual ventilation.
The pressure increases by turning clockwise the valve knob and
it decreases by turning counter-clockwise.
The range of regulation is around from 0 to 50 cm H
2
O.
•
Electronic O
2
By-PASS button. By pressing this button pure
OXYGEN is released into the anaesthesia circuit with a flow of
approximately 35 l/min.
Fresh gases exit selection control: enabling of fresh gases exit
connector (AUX).
Fresh gases exit selection control: enabling of valves group
(APL).
