2.2.2 Reflector
The reflector reflects the sender light beam back to the receiver in the sender/receiver
unit. Various versions are available for differing demands (internal duct diameter,
contamination measurement). The possible versions are identified with a type code in the
same manner as for sender/receiver units.

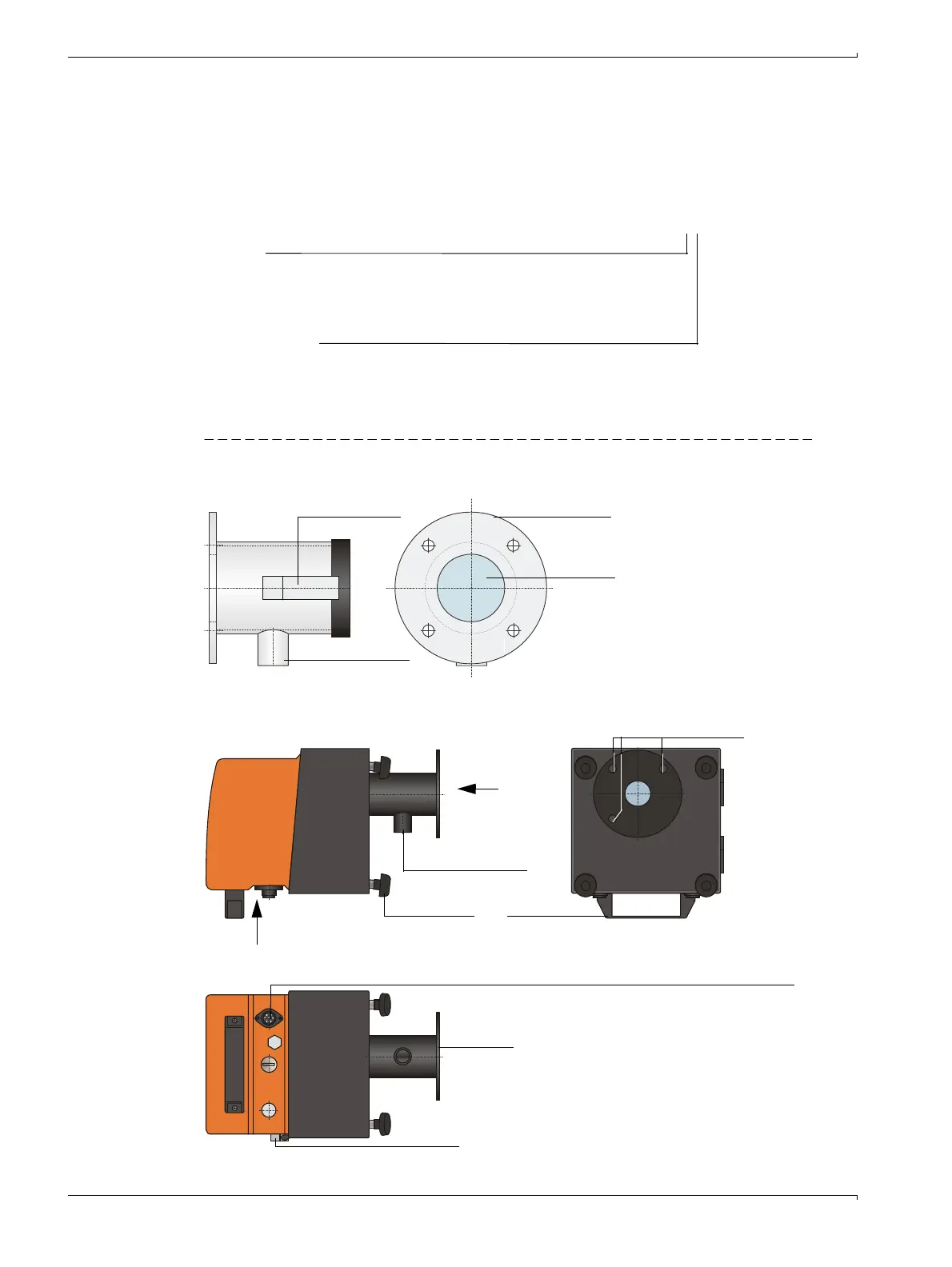

Figure 10 Reflector
Reflector DHT-RXX
Version:
- 5: for DUSTHUNTER T50
- 0: Without contamination measurement
- 1: With contamination measurement
Measuring path:
- 0: Short (0.5 ... 2.5 m)
- 1: Medium (2 ... 5 m)
- 2: Long (4 ... 8/12 m)
Purge air connector
A
A
B
B
Connectorn for connection cable for contamination measurement (only for DUSTHUNTER T200
Flange
Mounting holes
Knurled screw Handle
Reflector für DUSTHUNTER T50
Reflector for DUSTHUNTER T100/T200
Hinge
Flange
Reflector
CAMLOCK clip
Purge air connector
