Operating Instructions GM35
Probe Model
Technical specifications, consumables and spare parts
8009389/07-2006 © SICK MAIHAK GmbH • Germany · All rights reserved 101
10.2.3 GPP measuring probes

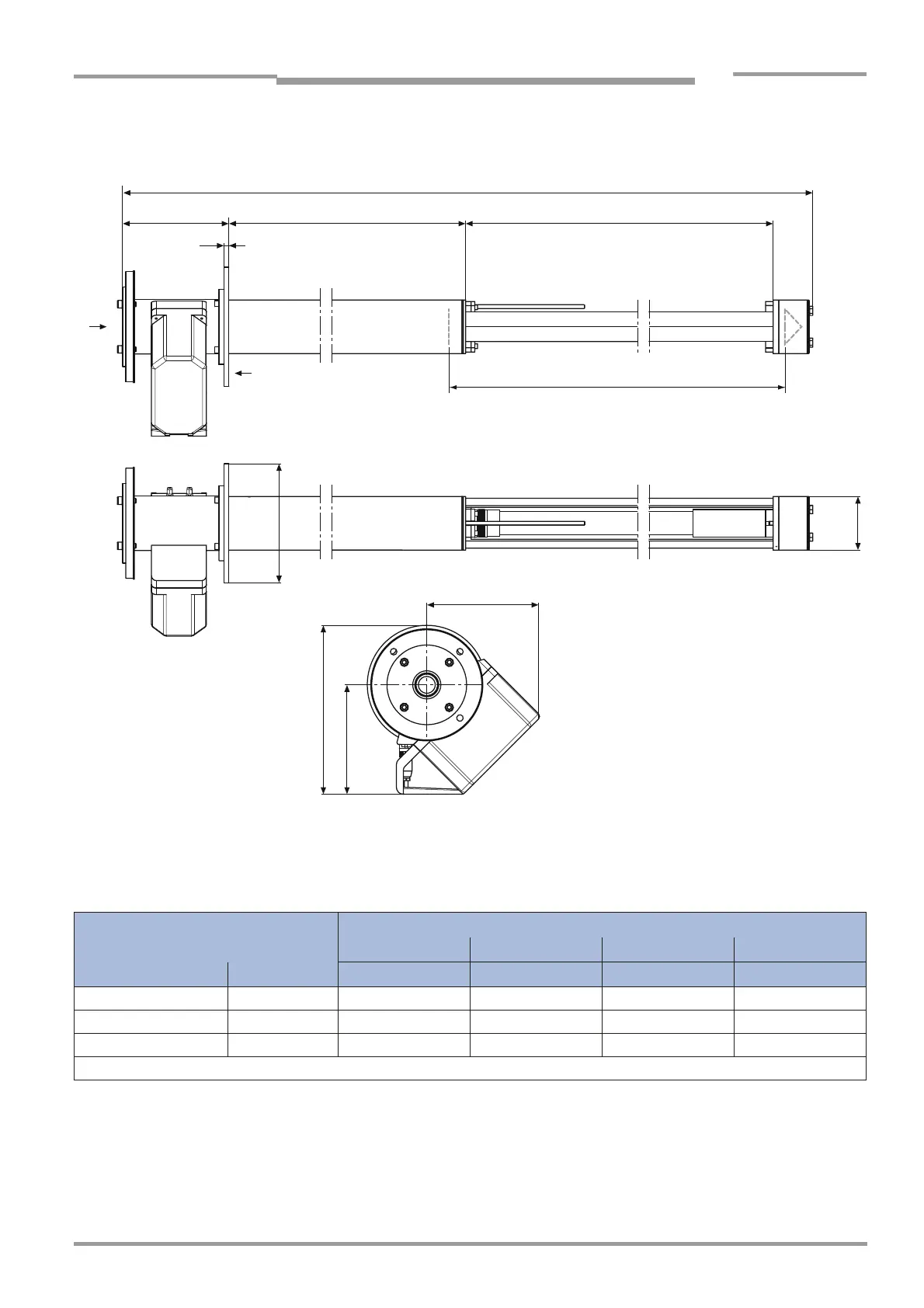

Fig. 47 GPP measuring probes
Dimensions of the GPP measuring probes
227 L2 L3
L1
10
Ø 254
238
233
360
Ø 114,3
A
R
R
A → Fig. 46
GPP measuring probes Active measuring distance [mm] (L3 [mm])
*)
250 (227) 500 (477) 750 (727) 1000 (977)
Nominal probe length L1 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm]
0.9 m 665 353 103 – –
1.5 m 1375 1063 813 563 313
2 m 1859 1547 1297 1047 797
application-specific lengths available on request
Dimensions of the GPP measuring probes
*)
L3 is the length of the recess for the filter element insert, as shown in the dimensioned drawing. The active measuring path is 23 mm
longer in each case, since it is formed between the optical boundary surfaces of the measuring probe.
