Assembly and Installation
3.3 Installation
3.3.1 General information, prerequisites
All assembly work previously described must be completed (as far as applicable) before
starting installation work.
Carry out all installation work onsite unless otherwise explicitly agreed with SICK or
authorized representatives. This includes laying and connecting the power supply and
signal cables, installing switches and mains fuses and connecting the purge air supply.
3.3.2 Connecting/starting the optional external purge air unit
Work to be performed
b Compare mains voltage and frequency with the specifications on the type plate on the
purge air motor.
b Connect the power supply cable to the purge air motor terminals (refer to the supple-
mentary sheet on the purge air motor and lid of the motor terminal box for terminal allo-
cation; principle illustration
→ Fig. 23).

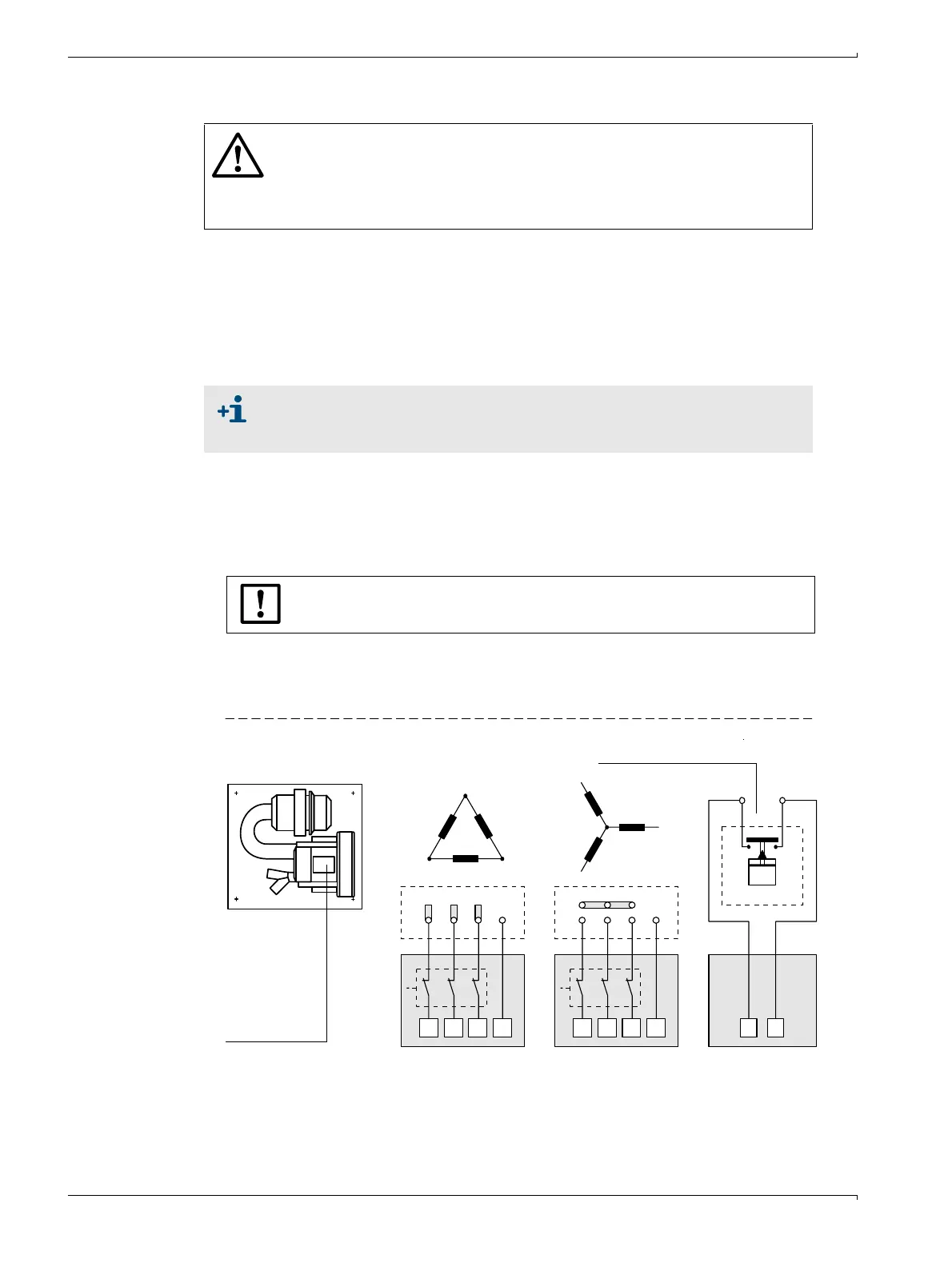

Figure 23 Electrical connection of the external purge air unit
b Connect protective conductor to terminal.
WARNING:
b Observe the relevant safety regulations as well as the safety notices in
Section 1 during all installation work.
b Take suitable protection measures against possible local hazards or
hazards arising from the equipment.
● Plan adequate line cross-sections ( → p. 108, §7.1).
● Cable ends with plugs to connect the sender/receiver unit must have
sufficient free length.
NOTICE:
b Only connect when these match!
Power supply
4 x 1.5 mm
2
L1 L1
U1 U1
U1
U1
V1 V1
V1
V1
W1 W1
W1
W1
PE PE
W2 W2
W2
W2
V2 V2
V2
V2
U2 U2
U2
U2
L2 L2
+ 24 V
L3 L3
_
PE PE
Low-pressure monitor
