Assembly and Installation
DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany 41
3.2.4 Fitting the weatherproof cover
Weatherproof cover for analyzer
This weatherproof cover serves to protect the sender/receiver unit and reflector (see
→
p. 119, Fig. 94). It comprises a base plate and a cover.
Assembly:
b Push the base plate sideways onto the flange with tube, slot onto the threaded bolts of
the duct-side surface of the flange plate and screw tight (
→ Fig. 22).
b Put the cover on from above.
b Insert the side holding catches into the counterpieces, twist and lock in.

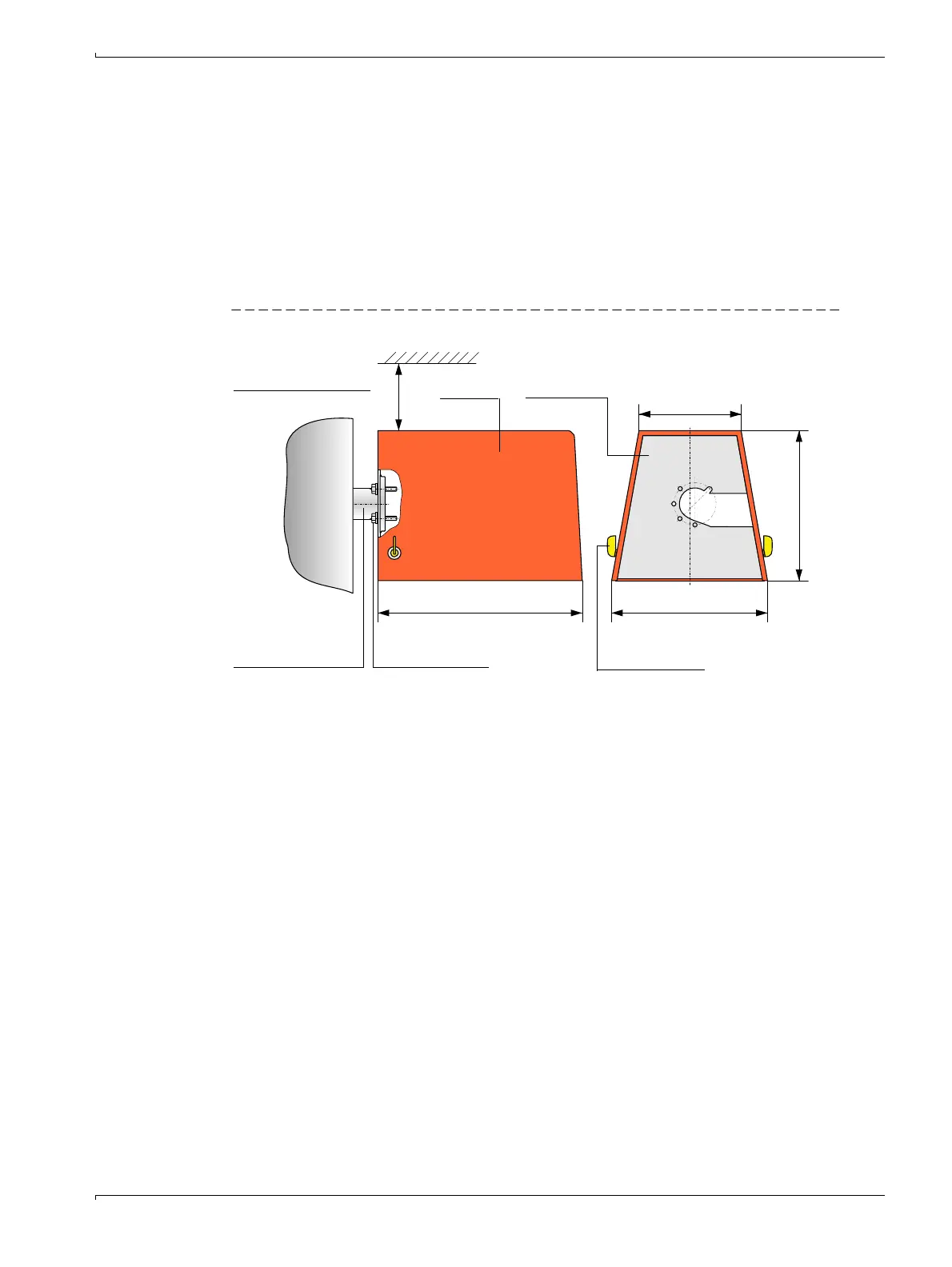

Figure 22 Fitting the weatherproof cover for analyzer (dimensions in mm)
Weatherproof cover for external purge air unit
The weatherproof cover (
→ p. 119, Fig. 7.2.6) comprises a cover and locking set.
Assembly:
b Mount the locking pins from the locking set on the base plate.
b Put the weatherproof cover on from above.
b Insert the holding catches into the counterpieces from the side, twist and lock in.
Holding catch
Clearance to lift off
Cover Base plate
(492) (365)
(239)
> 250
(360)
Flange with tube Threaded bolts
Duct
