Assembly and Installation
3.2.2 Fitting the MCU control unit
Fit the control unit in a protected location that is easily accessible ( → Fig. 20). Observe the
following points during fitting:
● Maintain the ambient temperature according to the Technical Data; take possible radi-
ant heat into consideration (shield when necessary).
● Protect against direct sunlight.
● Whenever possible, choose an assembly location with minimum vibrations; dampen
any vibrations when necessary.
● Leave enough clearance for cables and opening the door.
Assembly dimensions

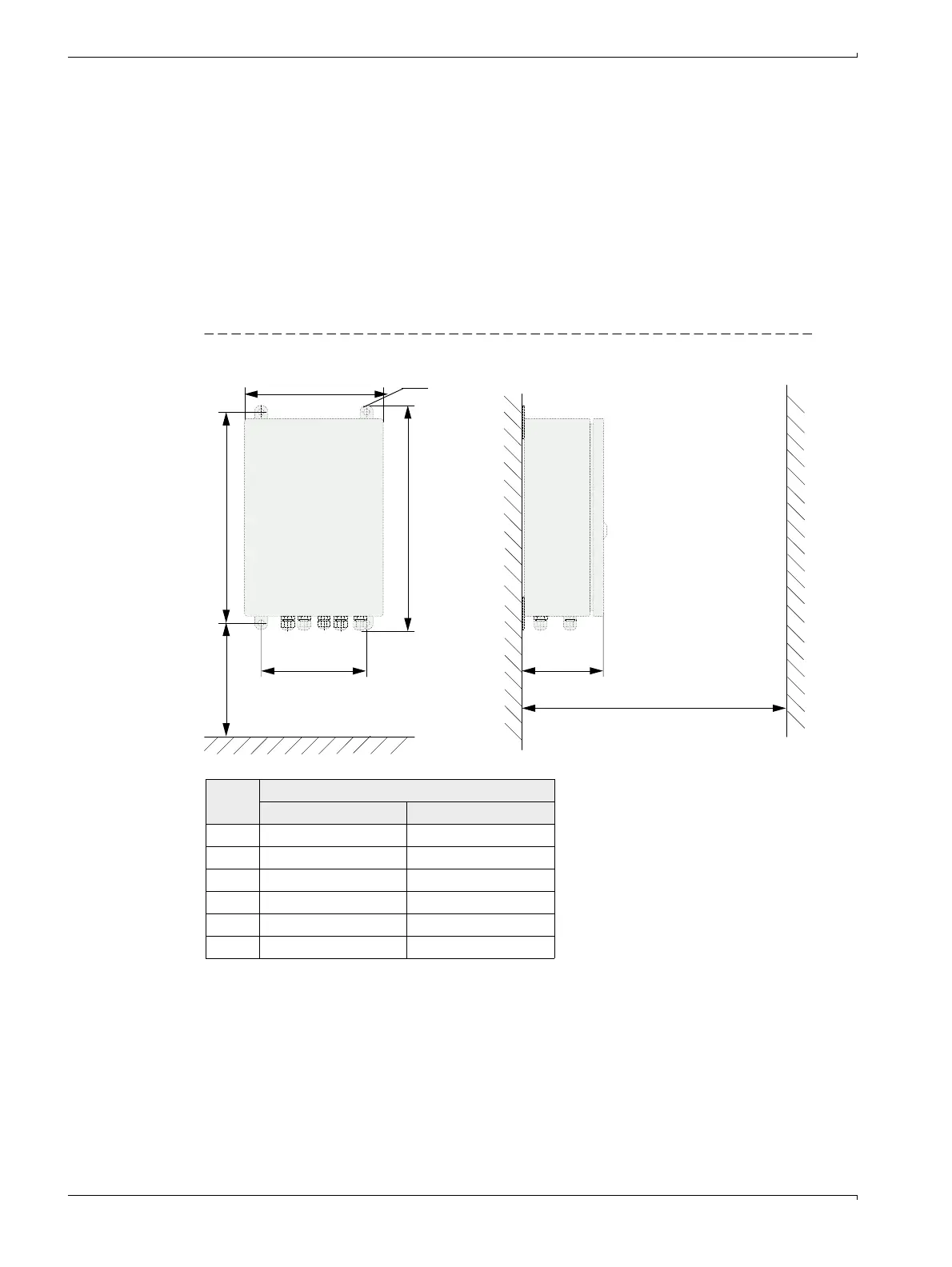

Figure 20 MCU assembly dimensions
c
f
e
> 250
d
b
M8
Clearance to open door
Clearance for cables
a
Dimens
ion
Control unit type
MCU-N MCU-P
a 160 260
b 320 420
c 210 300
d 340 440
e 125 220
f > 350 > 540
MCU-N: Control unit without
purge air supply
MCU-P: Control unit with
purge air supply
(
→ p. 23, §2.2.4)
