GM35 Operating Instructions
Probe Model
Technical specifications, consumables and spare parts
100 © SICK MAIHAK GmbH • Germany · All rights reserved 8009389/07-2006
10.2.2 with GMP measuring probe

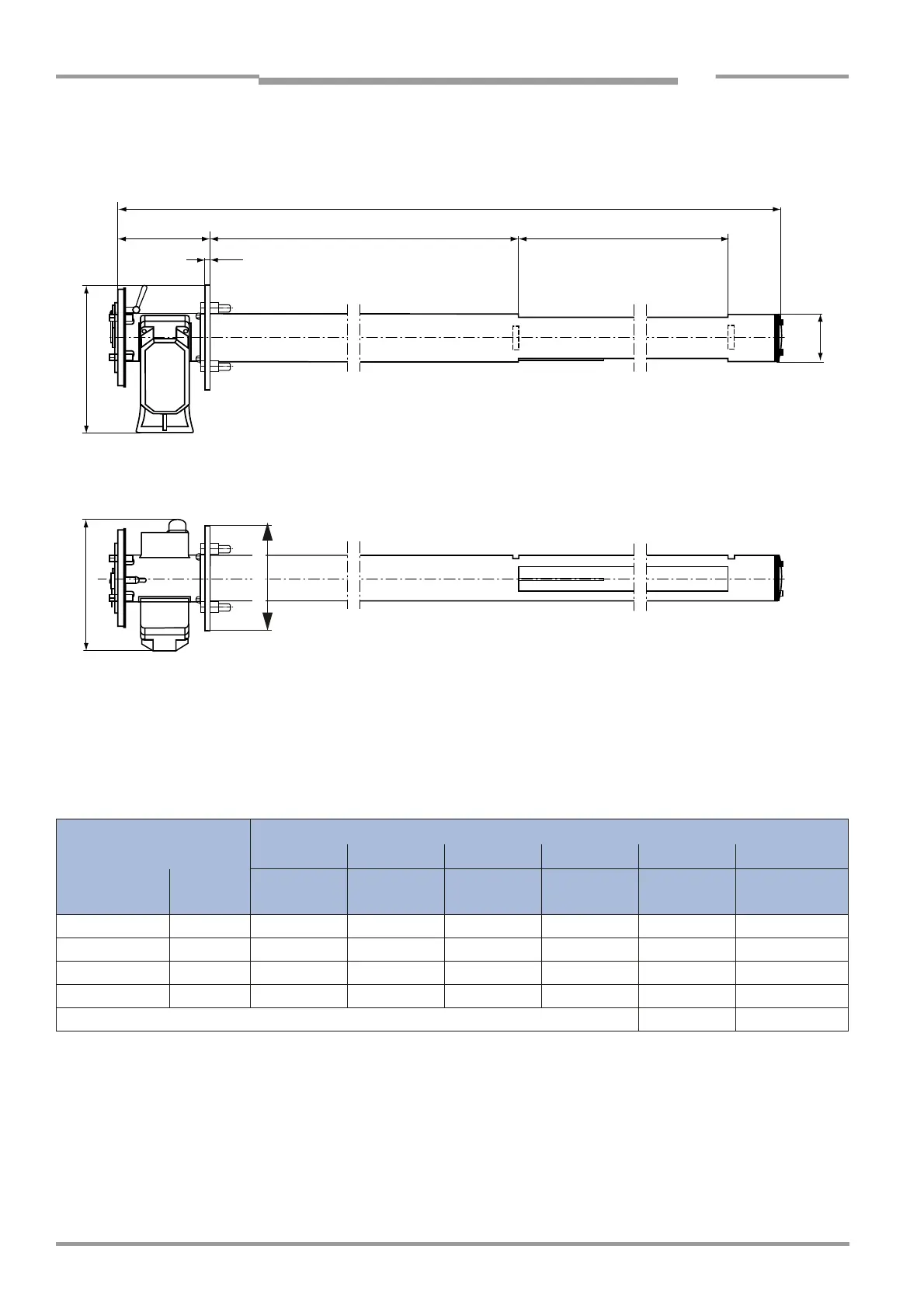

Fig. 46 Dimensions GMP measuring probe
Dimensions of the GMP measuring probes
114.3
360320.9
L3L2
L1
227
10
∅ 250
GMP measuring probes Measuring aperture (active measuring distance)
250 500 750 1000 1250 1750
Nominal probe
length
L1 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm] L2 [mm]
0.9 m 890 296 46 – – – –
1.5 m 1599 1004.5 754.5 504.5 254.5 – –
2 m 2083 1489 1239 989 739 489 –
2.5 m 2583 1988 1738 1488 1238 988 488
application-specific lengths available on request
