Assembly and Installation
DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany 35
3.2 Assembly
Carry out all assembly work onsite. This includes:
b
Fitting the flange with tube
b
Fitting the control unit
b
Fitting the optional external purge air unit.
3.2.1 Fitting the flange with tube

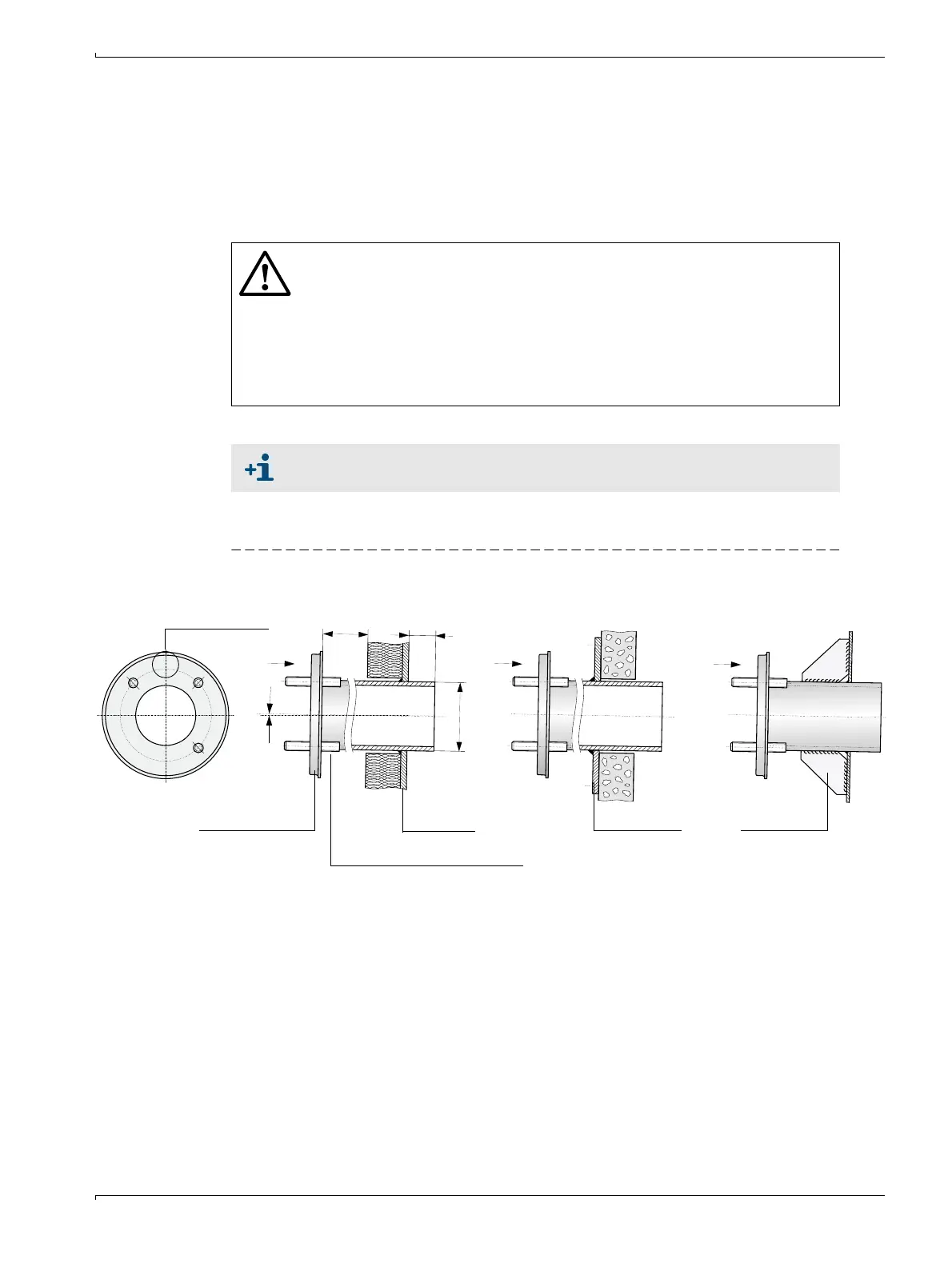

Figure 16 Fitting the flange with tube
Dimension a must be large enough so that a weatherproof cover can be fitted easily when
necessary (approx. 40 mm).
WARNING:
b
Observe the relevant safety regulations as well as the safety notices in
Section 1 during all assembly work.
b
Only carry out assembly work on equipment with hazard potential (hot or
aggressive gases, higher internal duct pressure) when the equipment is at
a standstill.
b
Take suitable protection measures against possible local hazards or
hazards arising from the equipment.
All dimensions specified in this Section are shown in mm.
TOP
Assembly on steel duct Assembly on brick stack Assembly on thin-walled duct
Duct wall Anchor plate Junction plate
Flange with tube
A
A
A
A
Marking for
assembly position
> 30
Fixing bolt for weatherproof cover
a
Ap-
prox
. 1°
Ø 76
