Maintenance
DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany 93
b
Move the swivel plate to the assembly position. To do this, select device file "DH T100"
or "DH T200" in the "Project tree" window, switch to the "Adjustment / Manual adjust-
ment / Motor control“ directory and click "Mounting" at "Pivoted shutter sender/
receiver".

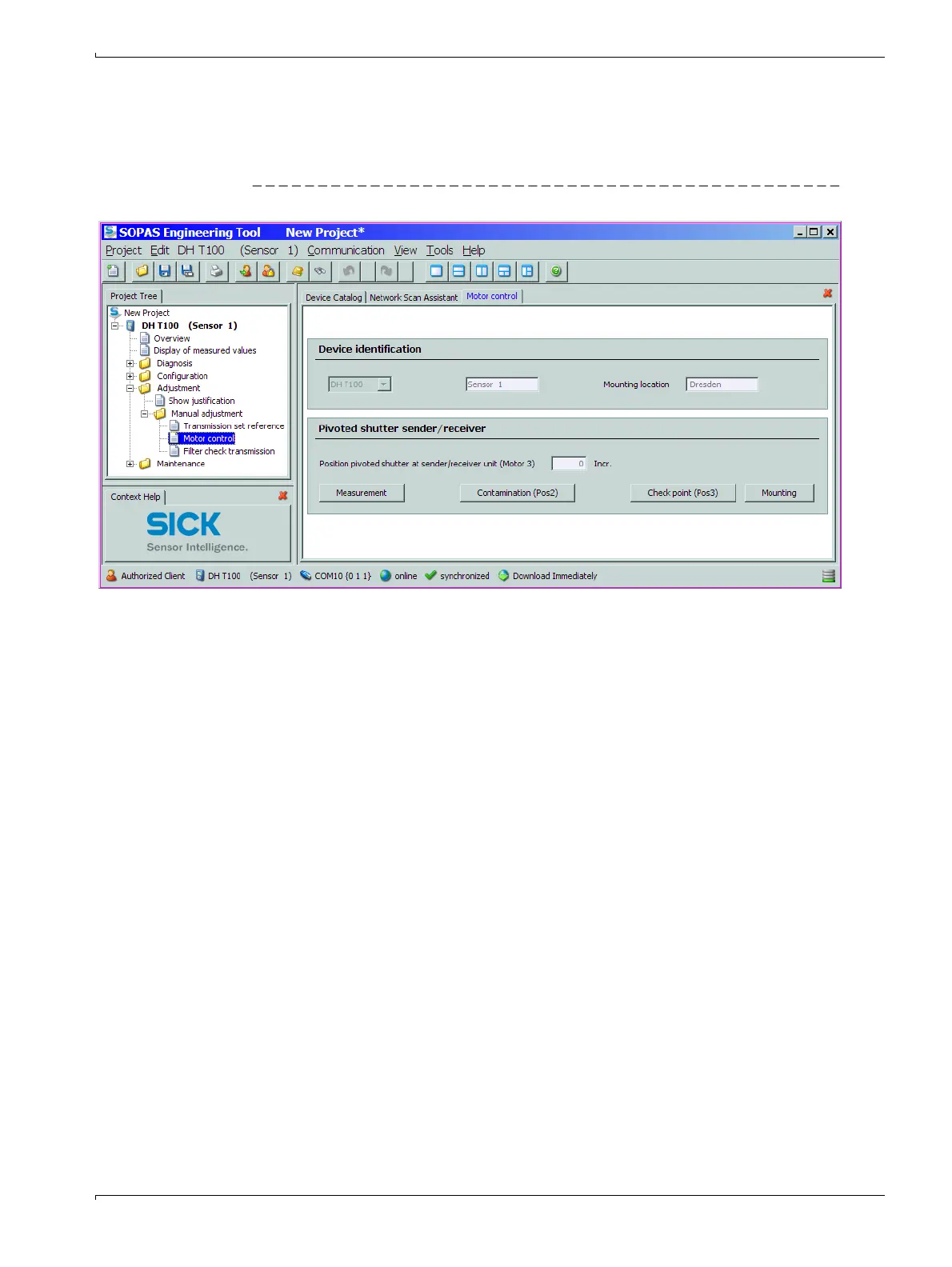

Figure 75 "Adjustment / Manual adjustment / Motor control“ directory
