7 SPECIFICATIONS
7.3.4 Flange with tube
7.3.4.1 Flange with tube (standard)

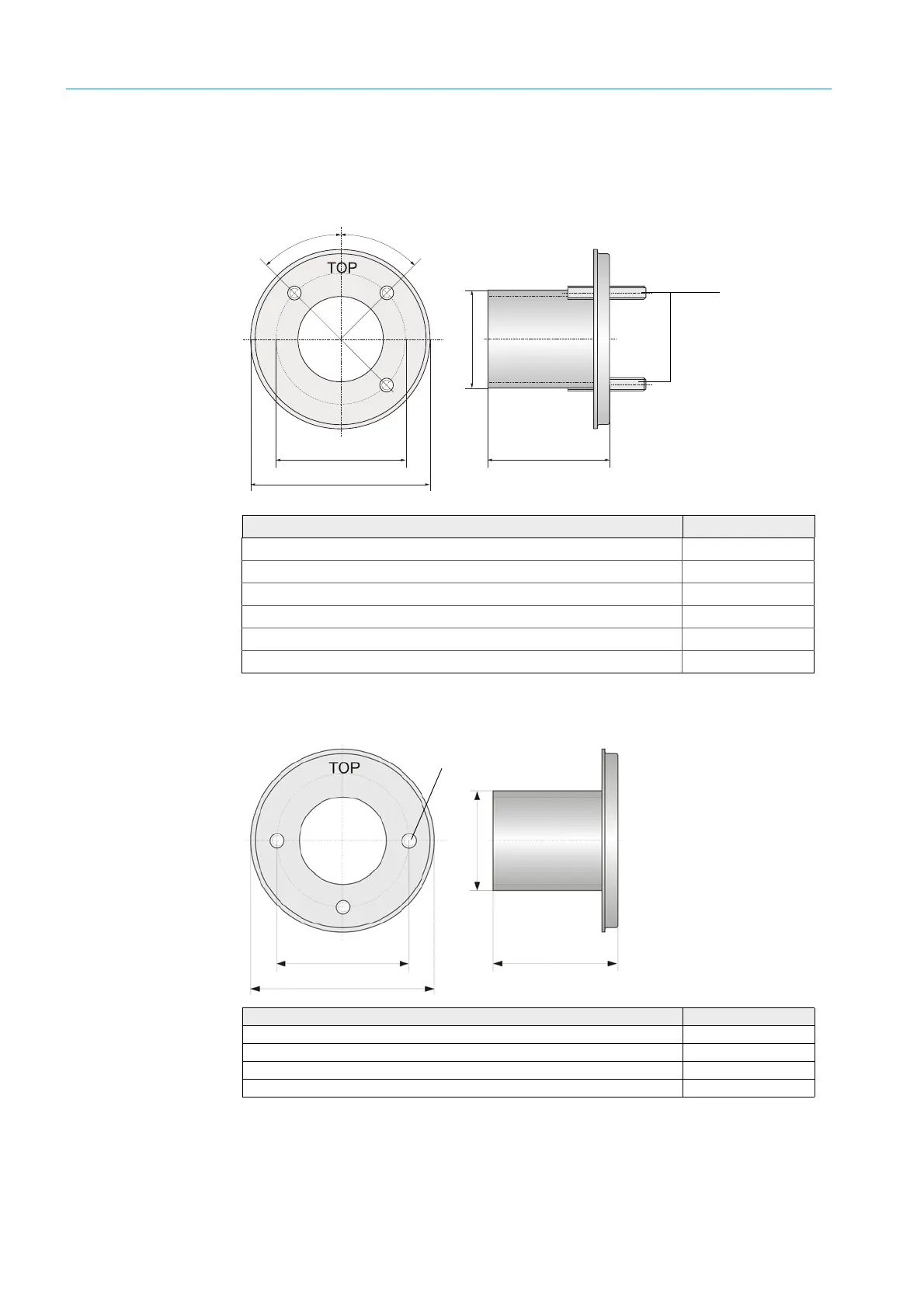

Fig. 82: Flange with tube
7.3.4.2 Flange with tube (fail-safe shutter)
Fig. 83: Flange with tube for fitting the fail-safe shutter
L L = 130, 240, 500
45°
45°
M10
Ø 76
Ø 100
Ø 130
Designation
Part No.
Flange with tube, Di = 70.2 Length 130 mm, St37
2017845
Flange with tube, Di = 70.2 Length 240 mm, St37
2017847
Flange with tube, Di = 70.2 Length 500 mm, St37
2017849
Flange with tube, Di = 70.2 Length 130 mm, 1.4571
2017846
Flange with tube, Di = 70.2 Length 240 mm, 1.4571
2017848
Flange with tube, Di = 70.2 Length 500 mm, 1.4571
2017850
L L = 130, 240, 500
M10
Ø 76
Ø 100
Ø 130
Designation
Part No.
Flange with tube, Di = 70.2 Length 130 mm, St37
2017839
Flange with tube, Di = 70.2 Length 240 mm, St37
2017840
Flange with tube, Di = 70.2 Length 500 mm, St37
2017842
Flange with tube, Di = 70.2 Length 240 mm, 1.4571
2017841
