2 PRODUCT DESCRIPTION
2.2 Device components
Measuring system DUSTHUNTER T comprises as standard the components:
● Sender/receiver unit DHT-T
● Connection line to connect the sender/receiver unit to the MCU control unit (lengths
5 m, 10 m)
● Reflector DHT-R
● Connection line to connect the reflector to the sender/receiver unit (only for
DUSTHUNTER T200, lengths 5 m, 10 m, 20 m, 50 m)
● Flange with tube
● MCU control unit
to control, evaluate and output the data of the sender/receiver unit connected via the
RS485 interface
– With integrated purge air supply, for internal duct pressure -50 ... +2 hPa
– Without purge air supply, therefore additionally required:
● Optional external purge air unit, for internal duct pressure -50 ... +30 hPa
● Purge air hose for supply by MCU control unit-P

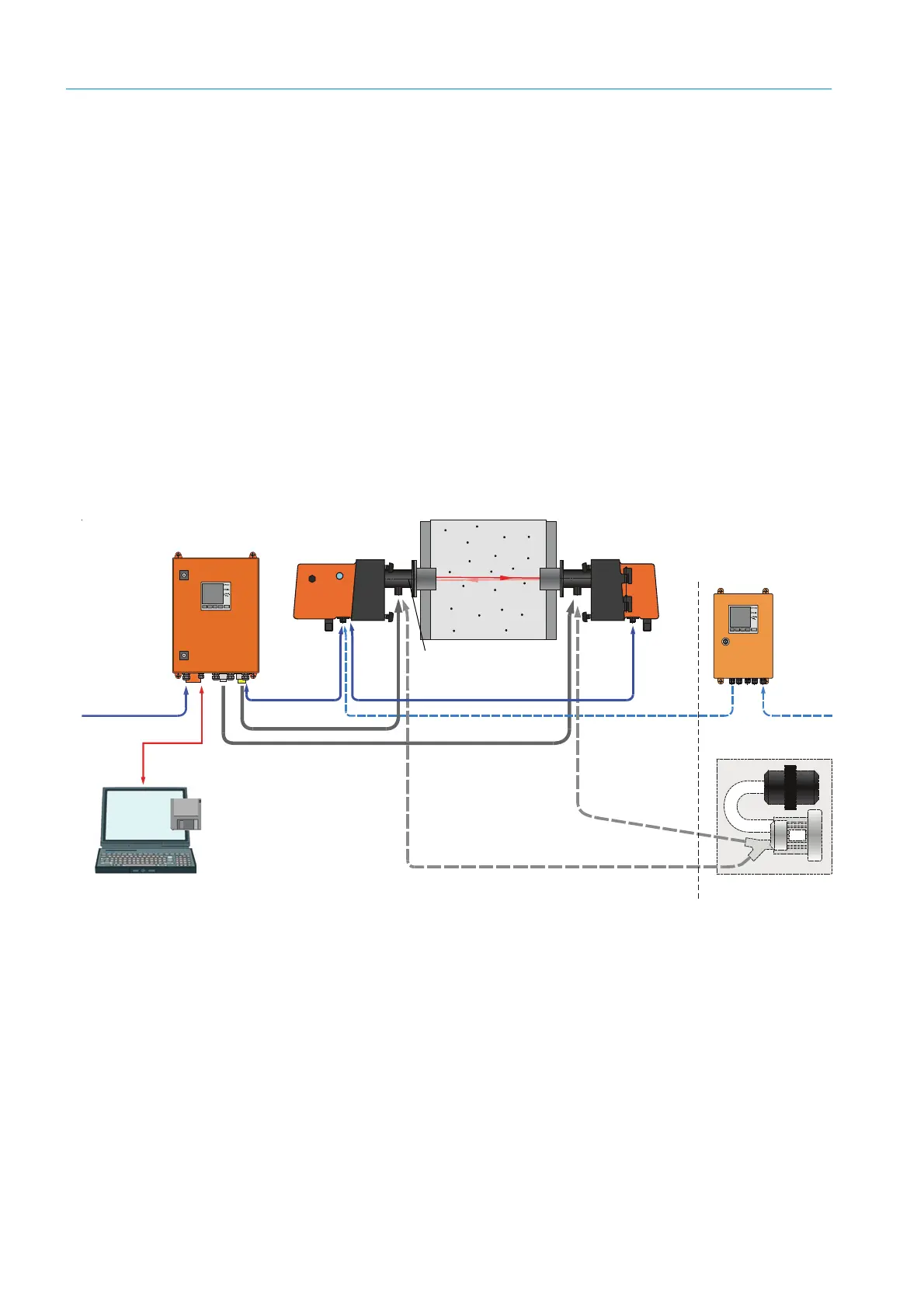

Fig. 6: DUSTHUNTER T device components
Communication between sender/receiver unit and MCU control unit
As standard, each sender/receiver unit is connected to an MCU control unit via the con-
nection line.









USB 1.1
(RS 232)


Duct  Operating and parameter program SOPAS ET

MCU-N without purge air supply (option)  Power supply

External purge air unit (option)  MCU-P with purge air supply

Flange with tube

Sender/receiver unit

Connection cable
à
Reflector

Purge air hose DN25
à
