3 ASSEMBLY AND INSTALLATION
3.3.3.2 Optional external purge air unit
Connect the purge air hose
Connect the purge air hose DN 40 mm and secure with hose clamps D32-52.

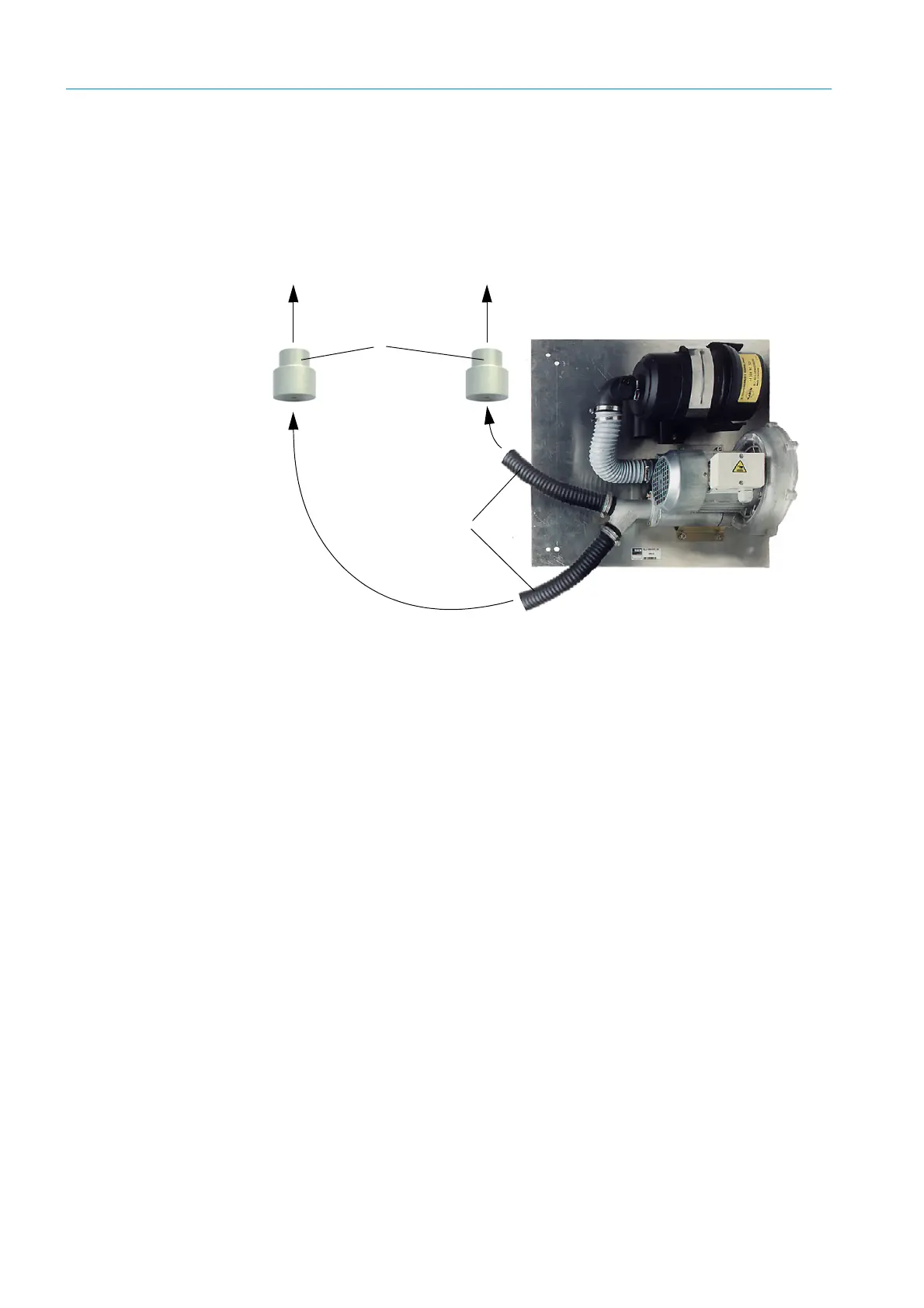

Fig. 26: Connecting the optional external purge air unit





Purge air connection of sender/receiver unit

Purge air connection of reflector

Purge air hose

Adapter 40-25, required only for DUSTHUNTER T50
