7.3.4 Replacing the mist catcher
1. Turn OFF the pump 1 and pump 2 switches.
2. Disconnect the connected joint.
3. Pull up the mist catcher a little and pull it off to the front.
4. Replace the mist catcher and assemble it by the reversed procedure.
Note
Attach the mist catcher with the correct orientation so that the arrow mark faces downward.

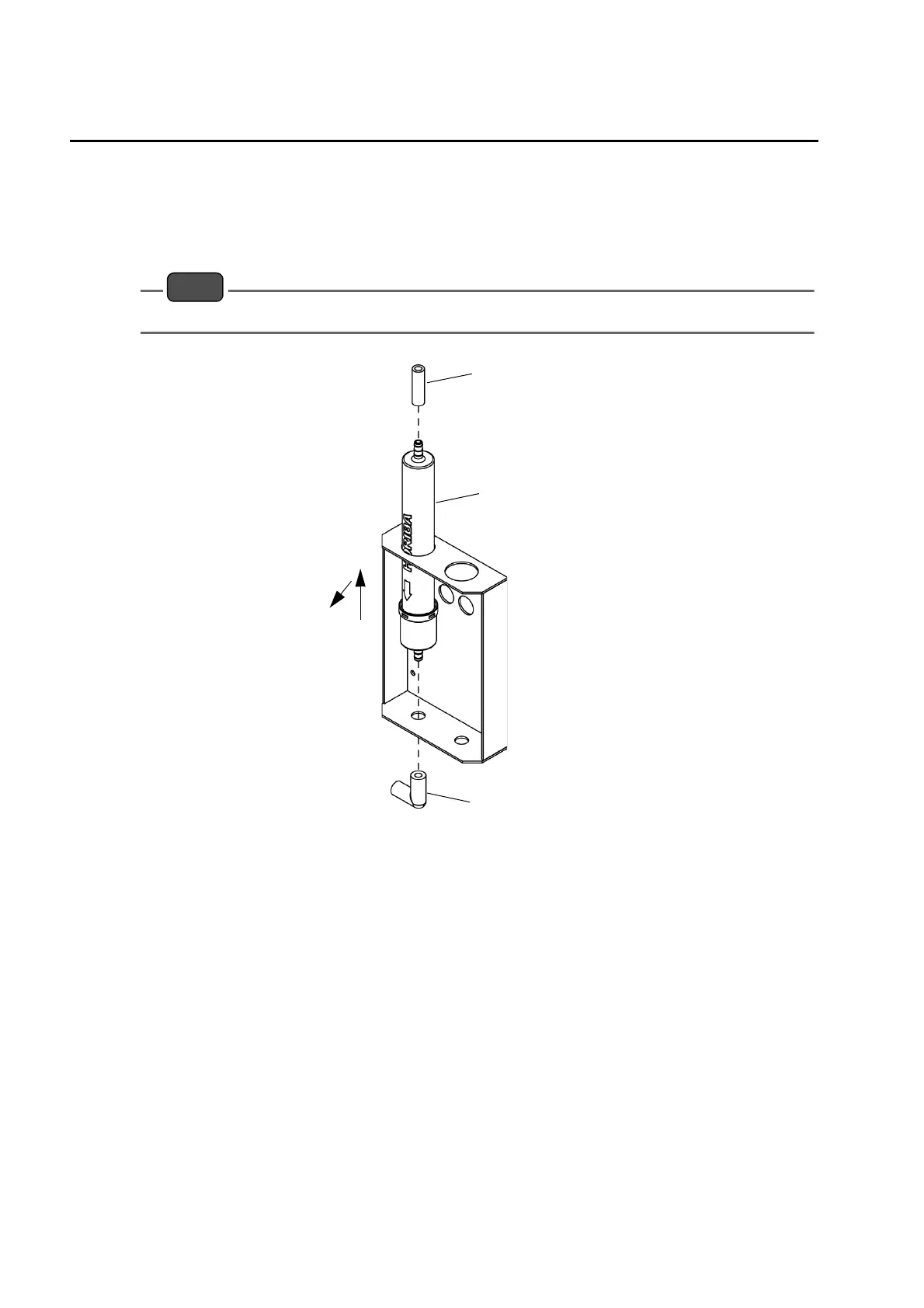

Fig. 56 Replacing the mist catcher
Joint
Mist catcher
(9057003300)
Joint
Pull off
