4 START-UP AND PARAMETER SETTINGS
4.2.2 Focussing the sender light beam for transmission measurement
▸ Select the “Adjustment / Manual Adjustment / Transmission set reference” directory
and activate the “Permanent LED light” checkbox in the “Adjustment aids” field.

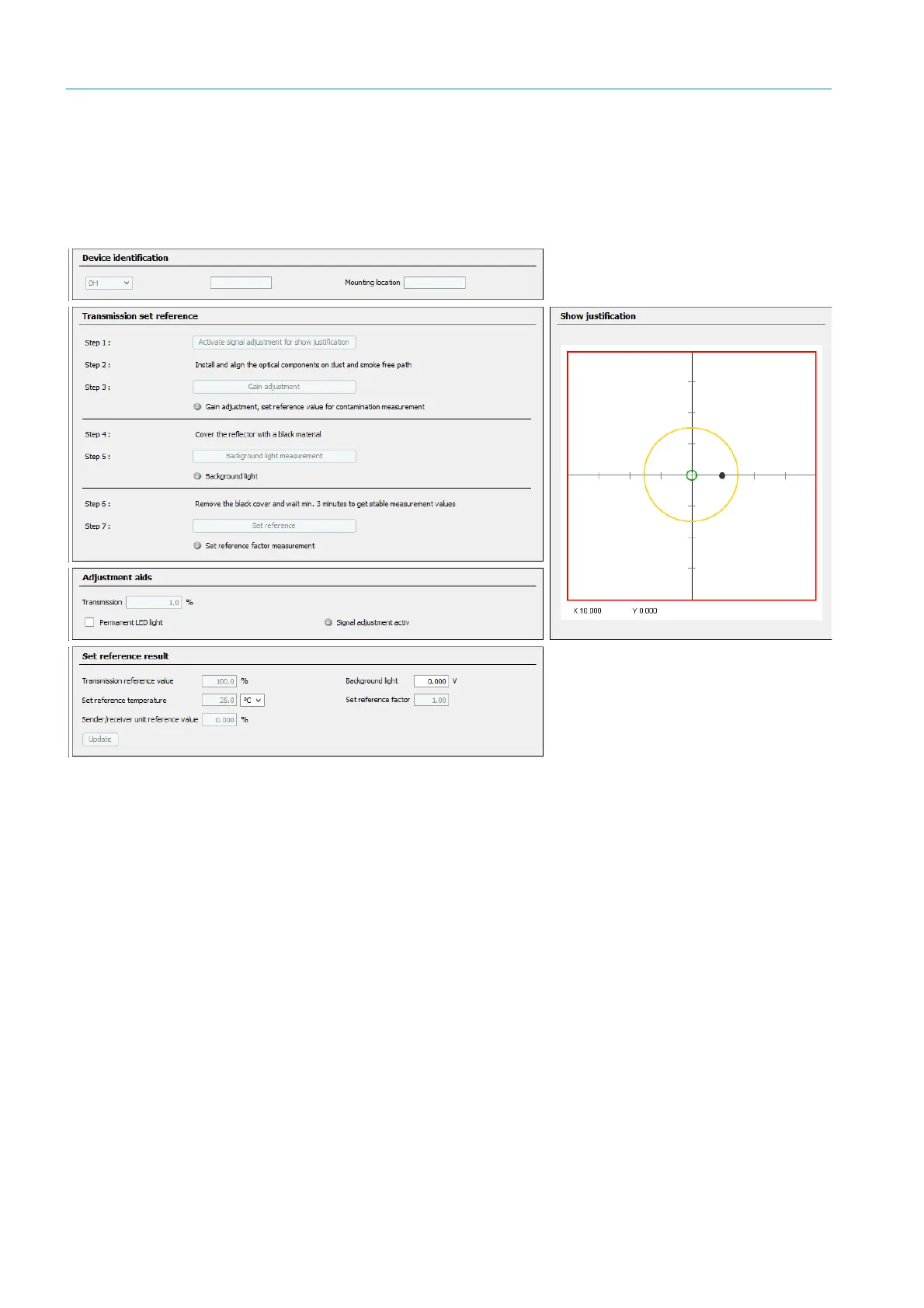

Fig. 39: SOPAS ET menu: DH T100/Adjustment/Manual Adjustment/Transmission set reference
▸ Loosen the CAMLOCK clips on the DUSTHUNTER T50 sender/receiver unit (see “Sender/
receiver unit DHT-Txx”, page 17) and remove the electronics unit.
▸ For DUSTHUNTER T100/T200, loosen the knurled screws (see “Sender/receiver unit
DHT-Txx”, page 17), swivel the electronics unit to the side and remove the pivoted
shutter cover (1).
▸ Unscrew the cover screw for the focussing opening (2).
