2 Name of Each Part
4

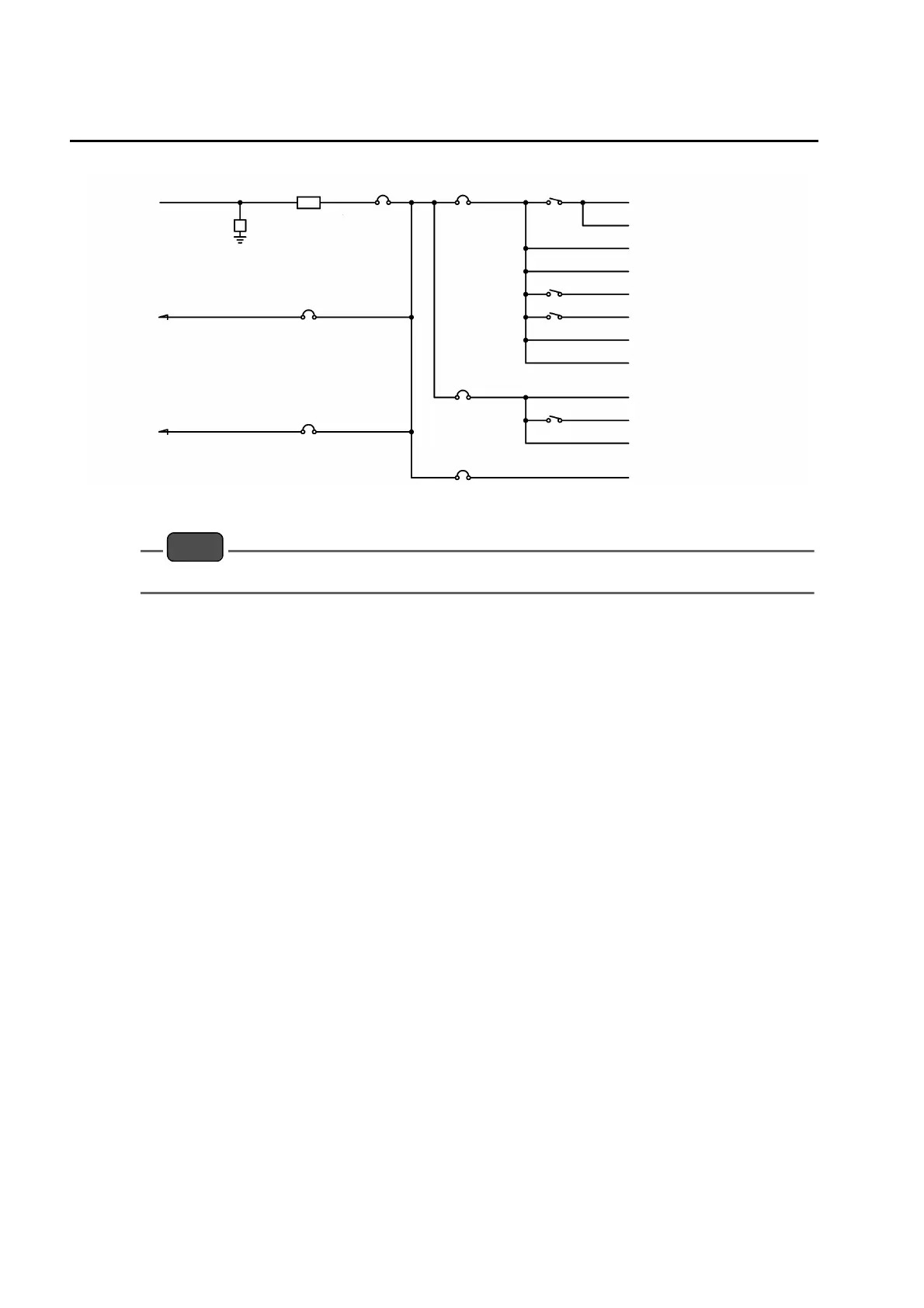

Fig. 3 Standard power system diagram
Note
The actual power system may be different from the above figure according to the specification.
Utility
Power input
100 V AC,
Approx. 2.0 kVA
Heated tube power output
100 V AC,
Approx. 1.1 kVA
100 V AC,
Primary filter power output
Approx. 100 VA
(Purge specification: Approx. 200 VA)
Noise filter
Arrestor
Heated tube CP (15 A)
Primary filter CP (3 A)
Main power ELB
(30 A)
Meter CP
(7.5 A)
Analyzer SW
Panel heater CP (5 A)
Sampling pump 1
Sampling pump 2
Sampling pump 1
Sampling pump 2
Analyzer
Power 24 V DC for insulation output
Electric cooler
NOx converter, zero gas generator
(Option: blow-back panel solenoid valve
control output)
(Option)
Ventilation fan
Fluorescent lamp
Fluorescent lamp
Power outlet
Panel heater
