3 ASSEMBLY AND INSTALLATION
3.3.5 Connecting the MCU remote control unit
3.3.5.1 Connection to the MCU control unit
Electrical connection see “Standard connection”, page 53
● Electrical connection of the MCU remote control unit without an own power supply unit:
– 24V supply: Terminals 36 and 37 (or equivalent)
– Signals: Terminals 38 and 39 (or equivalent)
● Electrical connection of the MCU remote control unit with an own power supply unit:
– Signals: Terminals 38 and 39 (or equivalent)
3.3.5.2 Connection to the MCU remote control unit
Version without power supply unit
● Connect the connection cable to the measuring and control unit (4-wire, twisted pair, with shield)
to the connections in the control unit and the module of the remote unit.

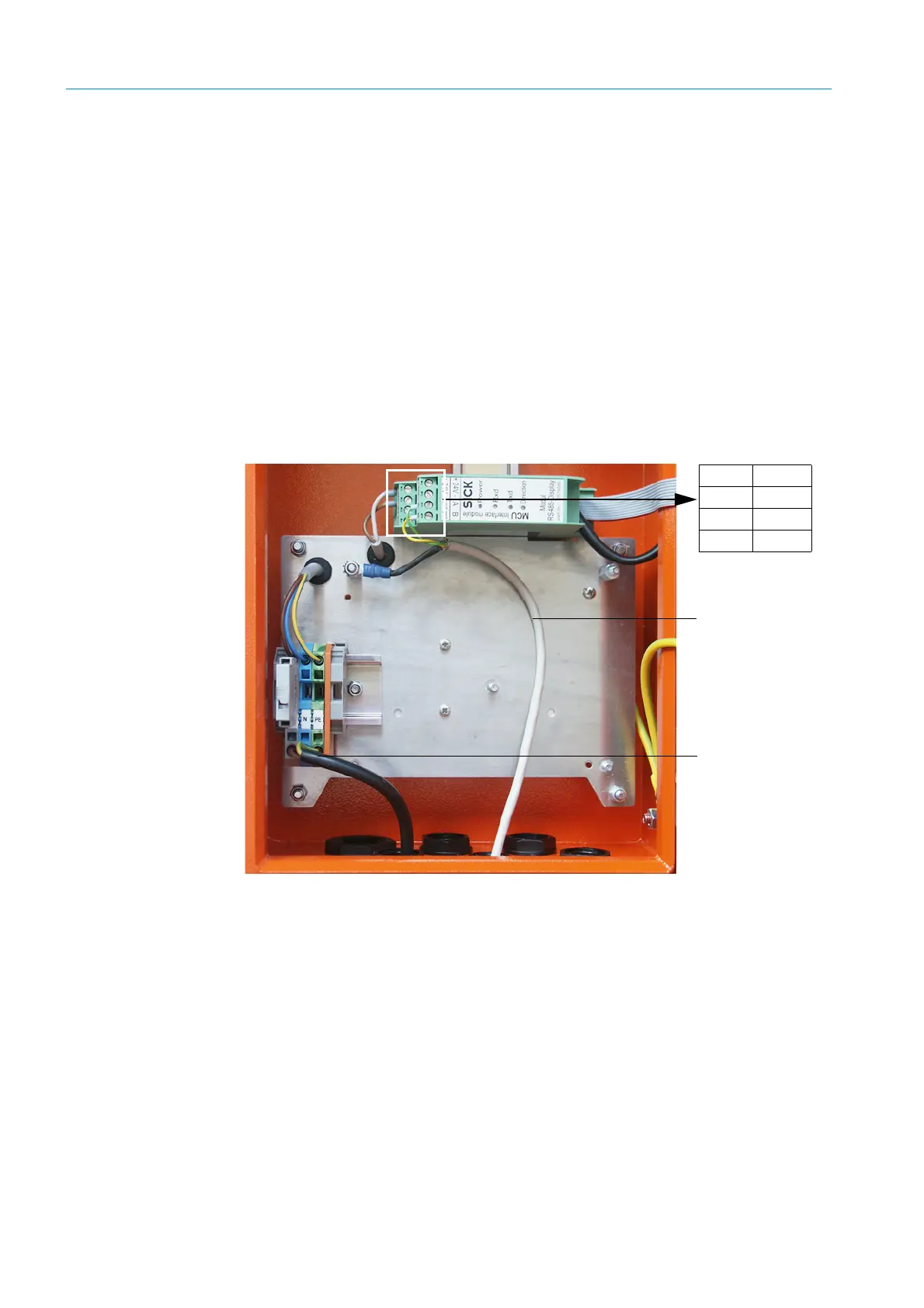

Fig. 32: Connections in the remote control unit (version with integrated wide-range power pack)
+24 V
-24 V
Shield RS485 A
RS485B



Connection cable to
the MCU measuring
and control unit

Power cable
