3 ASSEMBLY AND INSTALLATION
3.2 Assembly
Carry out all assembly work onsite. This includes:
▸ Fitting the flange with tube
▸ Fitting the MCU control unit,
▸ Fitting the optional external purge air unit.
3.2.1 Fitting the flange with tube

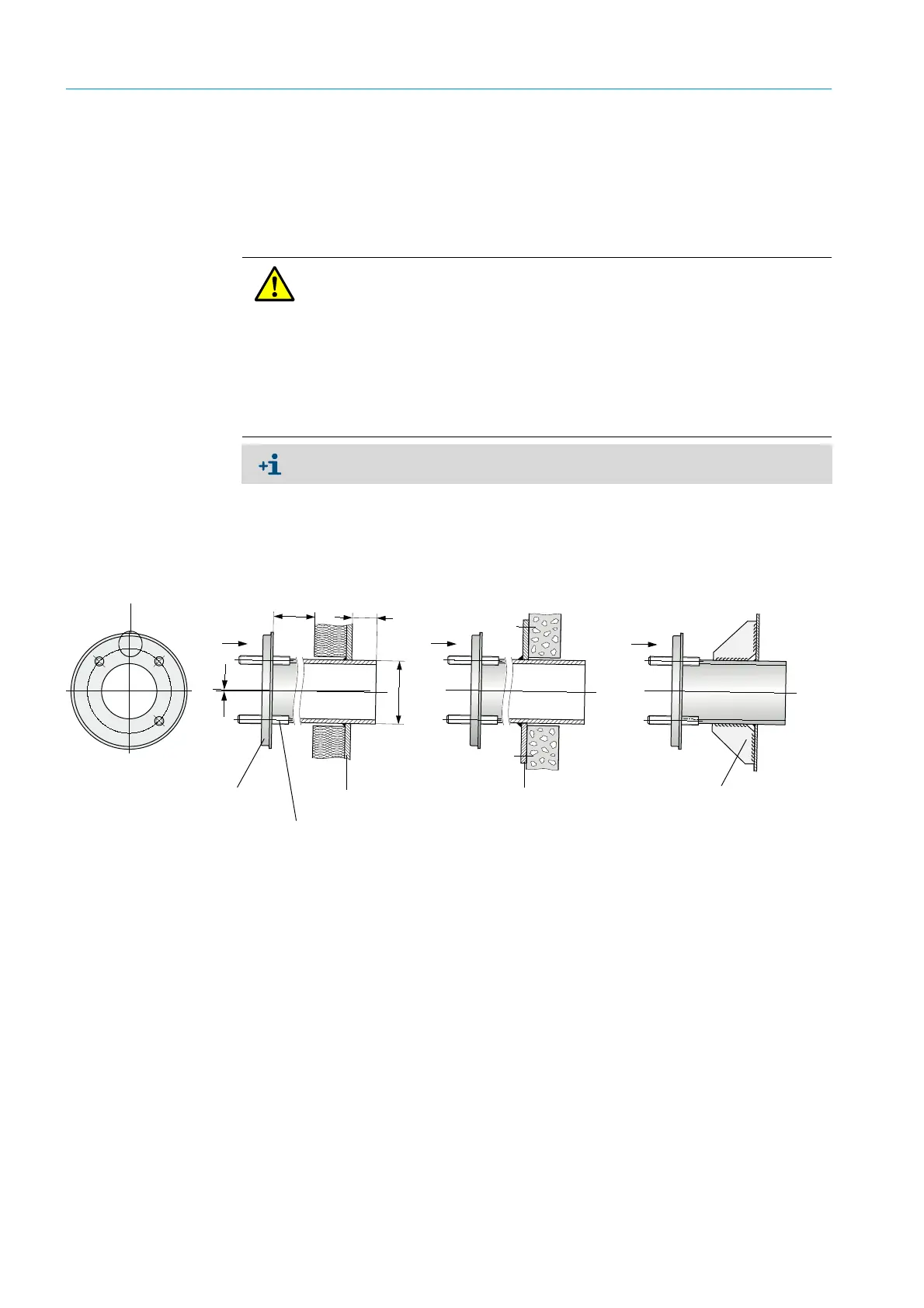

Fig. 16: Fitting the flanges with tube
Dimension a must be large enough so that a weatherproof cover can be fitted easily when
necessary (approx. 40 mm).
WARNING:
▸ Observe the relevant safety regulations as well as the safety notices during
all work: see “Important Information”, page 7
▸ Consider the equipment weight specifications when planning the mounting
brackets.
▸ Only carry out assembly work on equipment with hazard potential (hot or
aggressive gases, higher internal duct pressure) when the equipment is at a
standstill.
▸ Take suitable protection measures against possible local hazards or haz-
ards arising from the equipment.
All dimensions specified in this Section are shown in mm.
TOP
Assembly on steel duct
A
A
A
A
Marking for assembly position
> 30
A
Approx.
1°
Ø 76


Assembly on brick stack Assembly on thin-walled duct
  

Junction plate

Anchor plate

Duct wall

Fixing bolt for weatherproof cover

Flange with tube
