2 PRODUCT DESCRIPTION
● MCU-P control unit with integrated purge air supply
This version is also fitted with a purge air blower, air filter and purge air connections to
connect the purge air hoses to the sender/receiver unit and the reflector.

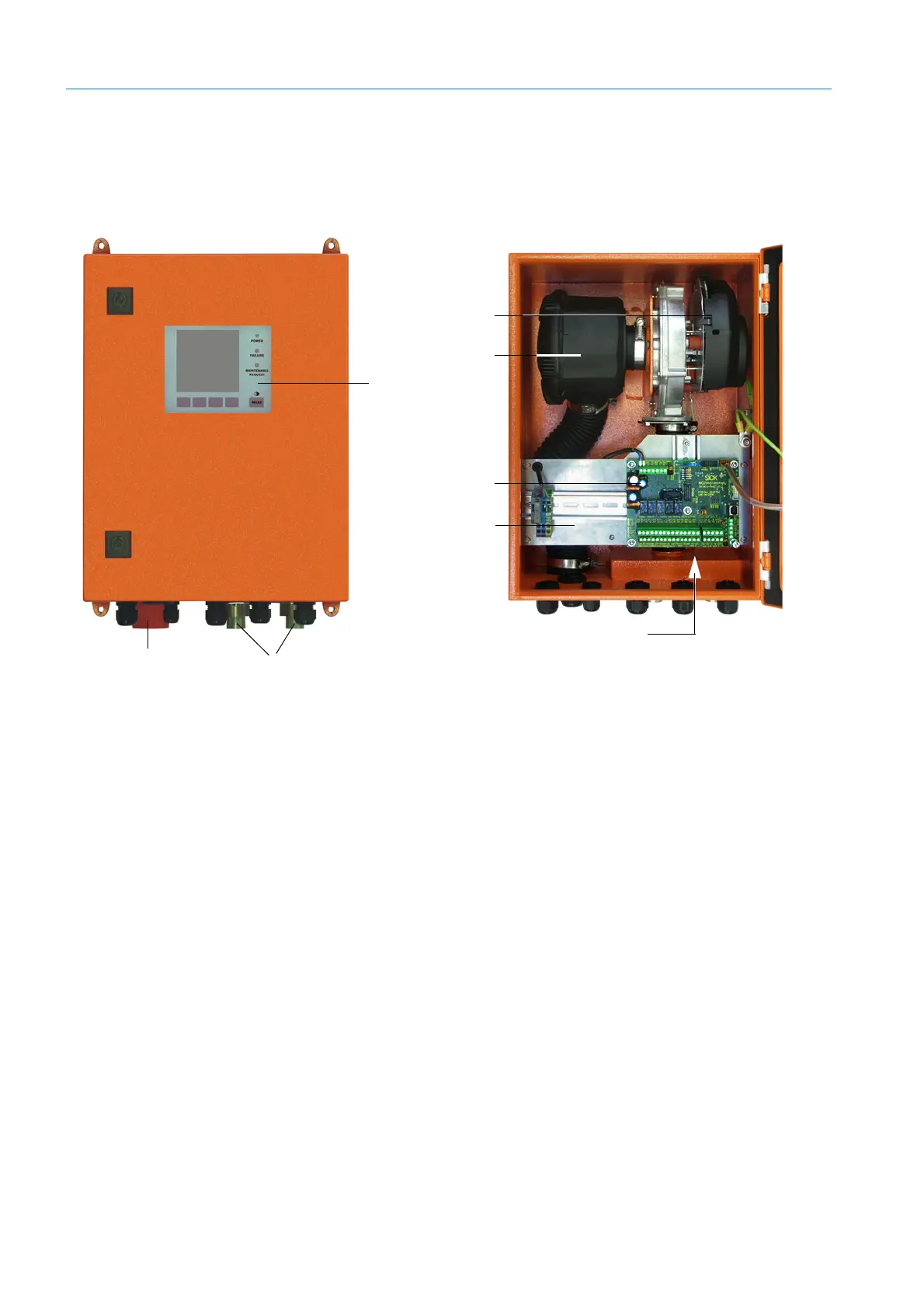

Fig. 12: MCU-P control unit with integrated purge air supply
The purge air hose (standard lengths 5 and 10 m (see “Purge air supply”, page 124)) is a
separate part of the measuring system and must be ordered separately.
Purge air blower
Installation plate
Air filter
Power supply unit (on back of installation plate)
Optional Display module
Purge air connection
Processor board
Purge air inlet
