4 MOUNTING
8011325/18IM/2020-07-02|SICK
OPERATING INSTRUCTIONS | ICR880/890
Subject to change without notice
Mounting the mounting brackets
1. Screw a 180° mounting bracket onto both sides of the mounting frame such that the
two brackets are aligned with each other using two screws and two sliding nuts (1) on
each profile.
2. By means of the grooves, vertically position the mounting plate (3) of the mounting
brackets and tighten the clamping screws (2).

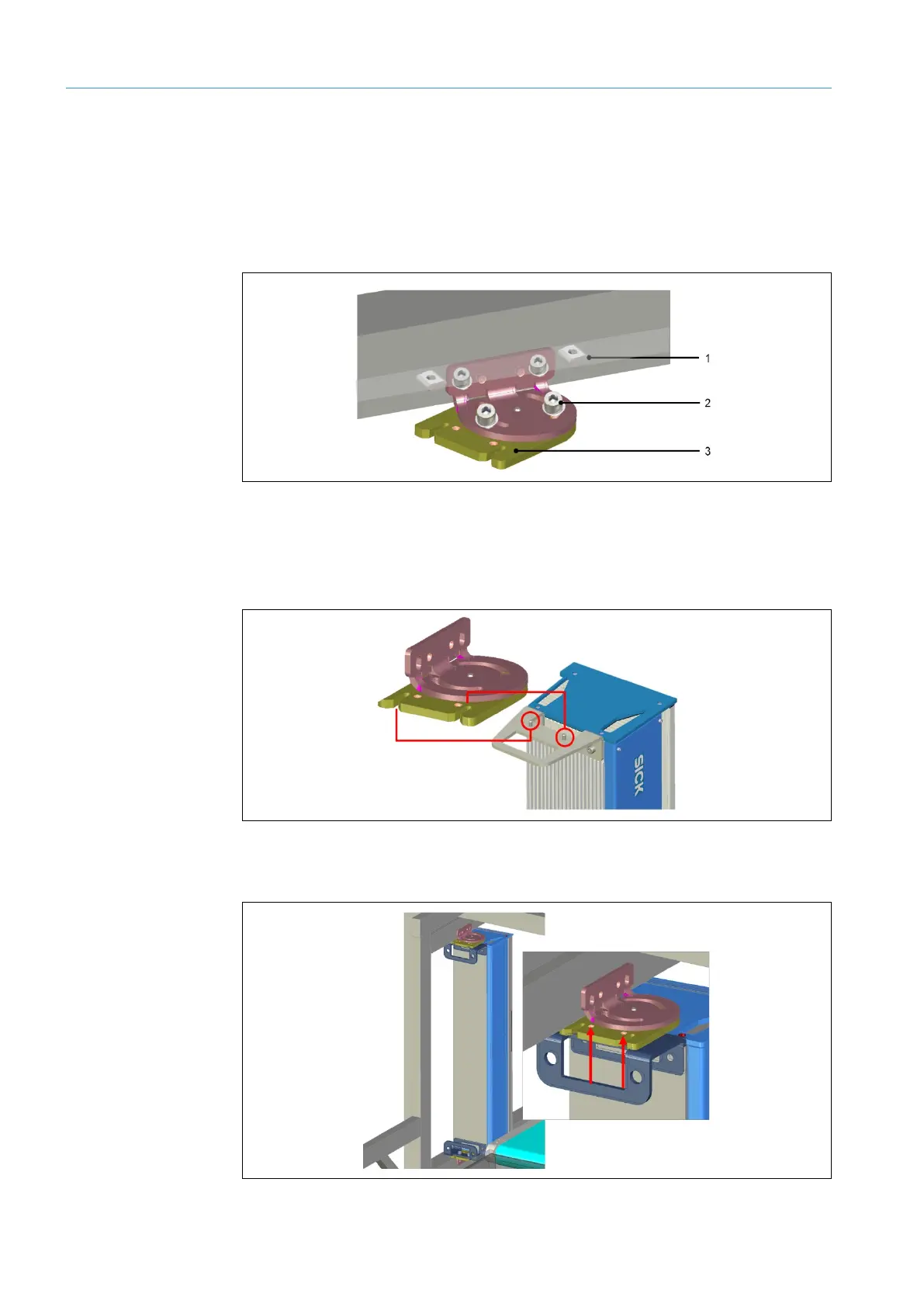

Fig. 29: Mounting the camera system: securing the 180° mounting bracket
Inserting the illumination unit without the camera
1. Insert the illumination unit into the grooves of the 180° brackets using the alignment
pins.
Fig. 30: Mounting the camera system: inserting the illumination unit without the camera
2. Secure the illumination unit to the two 180° brackets using two fixing screws in each case.
Fig. 31: Mounting the camera system: securing the illumination unit
