MAINTENANCE AND CARE 7
8011325/18IM/2020-07-02|SICK
Subject to change without notice
OPERATING INSTRUCTIONS | ICR880/890
3. Also remove the cables between the camera and the illumination.

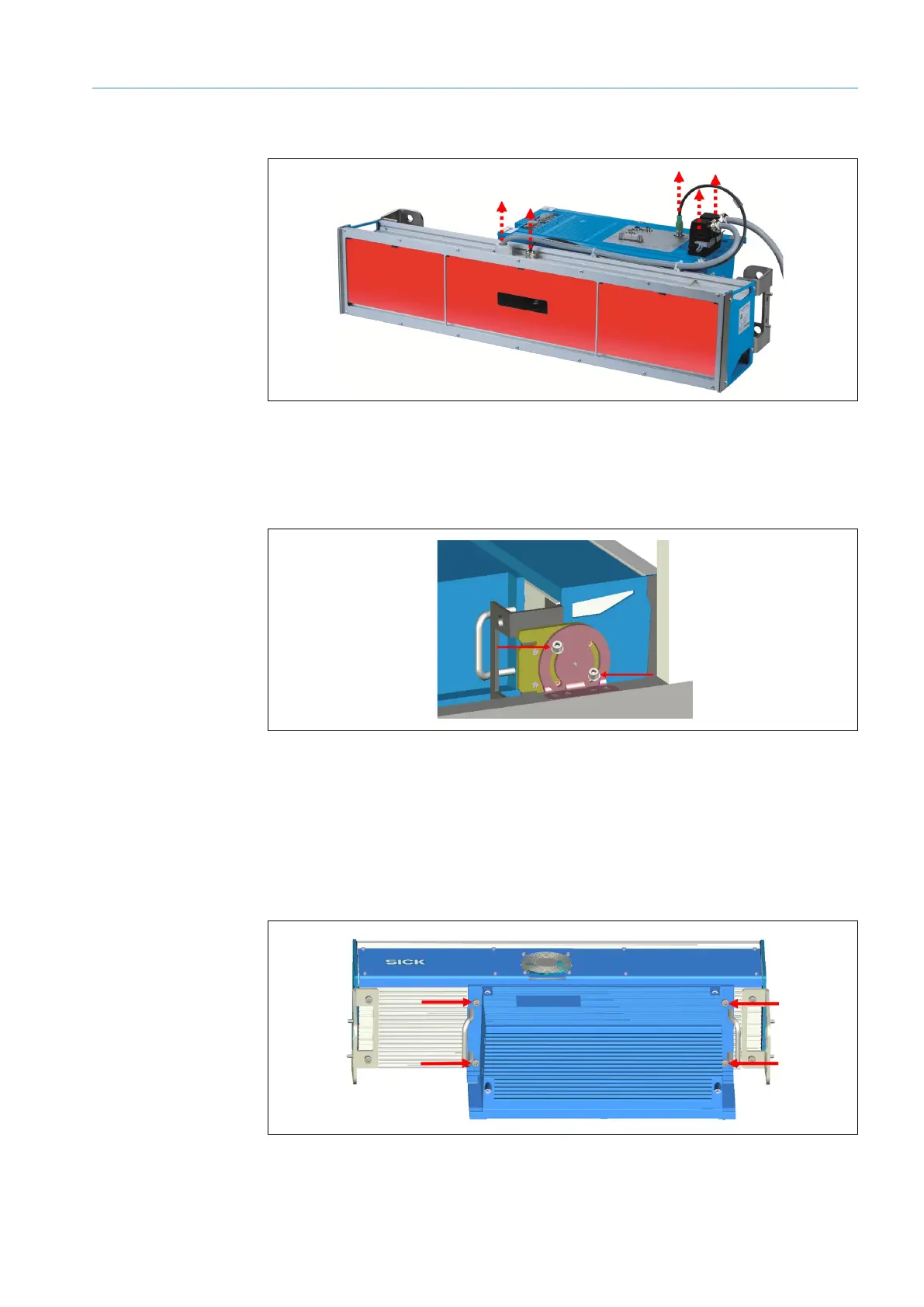

Fig. 51: Camera system replacement – removing connecting cables on the camera system
Disconnecting system components
1. Loosen the two clamping screws in the bow-shaped slots in the two 180° mounting
brackets.
Fig. 52: Camera system replacement – loosening the clamping screws in the 180° mounting
brackets
Do not completely remove the clamping screws!
2. Carefully tilt the camera system until the front screen of the illumination unit points
upwards or downwards.
3. Remove the camera from the illumination unit. Loosen the four hexagon socket screws
and carefully pull the camera out of the illumination.
Fig. 53: Camera system replacement – removing the camera from the illumination unit
Note
