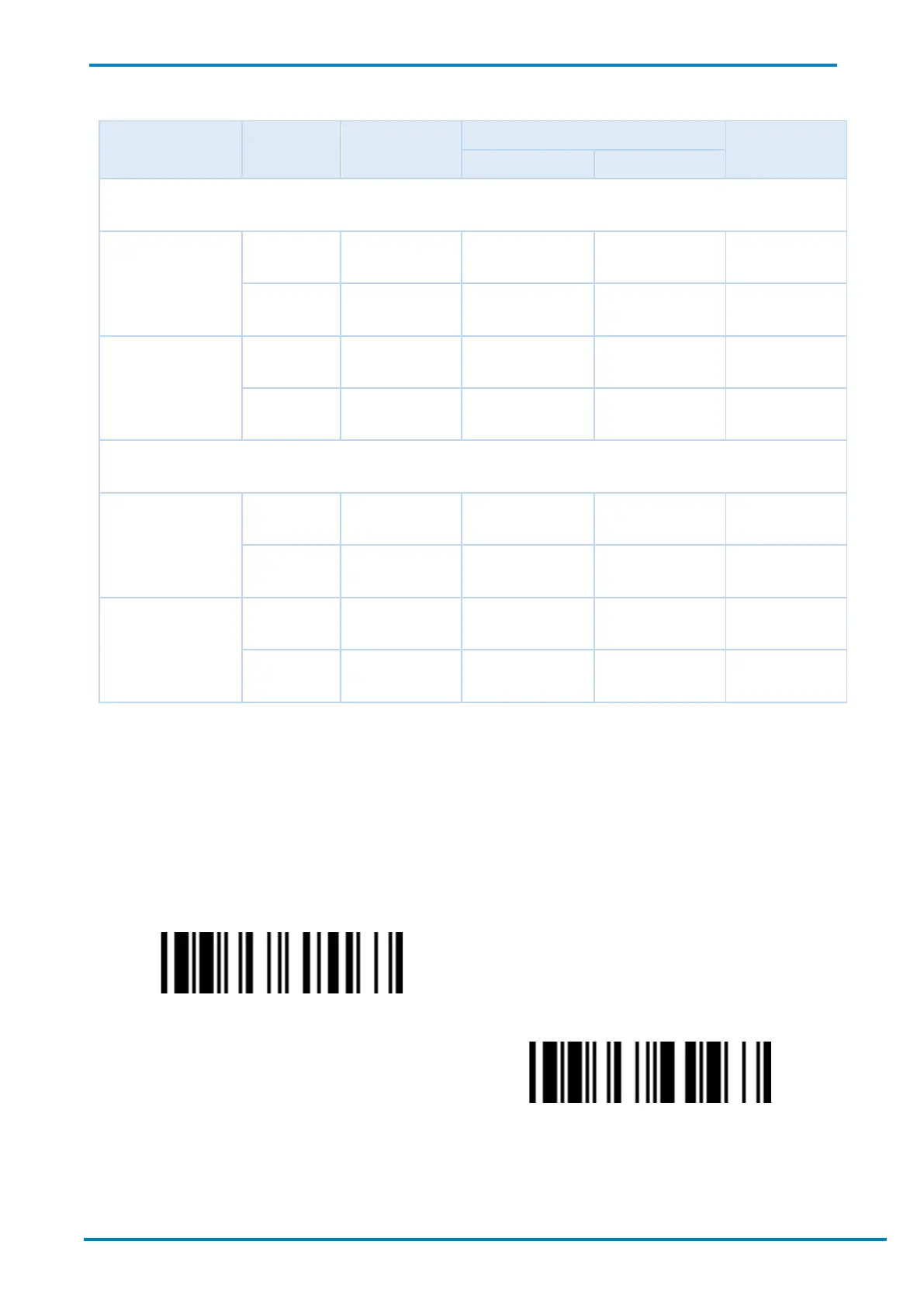

Item Status
Center
Indicator
Side Indicators
Beeping
Left
Right
PAIR Mode*
(Connected) Regular Steady blue Off Off Off
Charging Steady blue Off Off Off
(Disconnected) Regular Off Steady red Steady red Off
Charging Off Steady red Steady red Off
Paged by Scanner
(PICO) Regular Steady blue Steady green Off Off
Charging Steady blue Steady green Off Off
(PAIR) Regular Steady blue Off Off Off
Charging Steady blue Off Off Off
*Radio Connection/Disconnection refers to the wireless link between a scanner and the Smart Cradle to
which it is already paired. It is not referring to their pairing status.
For example, radio disconnection means that the scanner can no longer communicate with its paired Cradle
(e.g. going outside of the Bluetooth coverage zone), but this event will not cause them to become unpaired.
8.2 Quick Set Commands
8.2.1 Link Modes
PAIR Mode
PICO Mode
