3.7.6 Codabar/ NW-7
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code

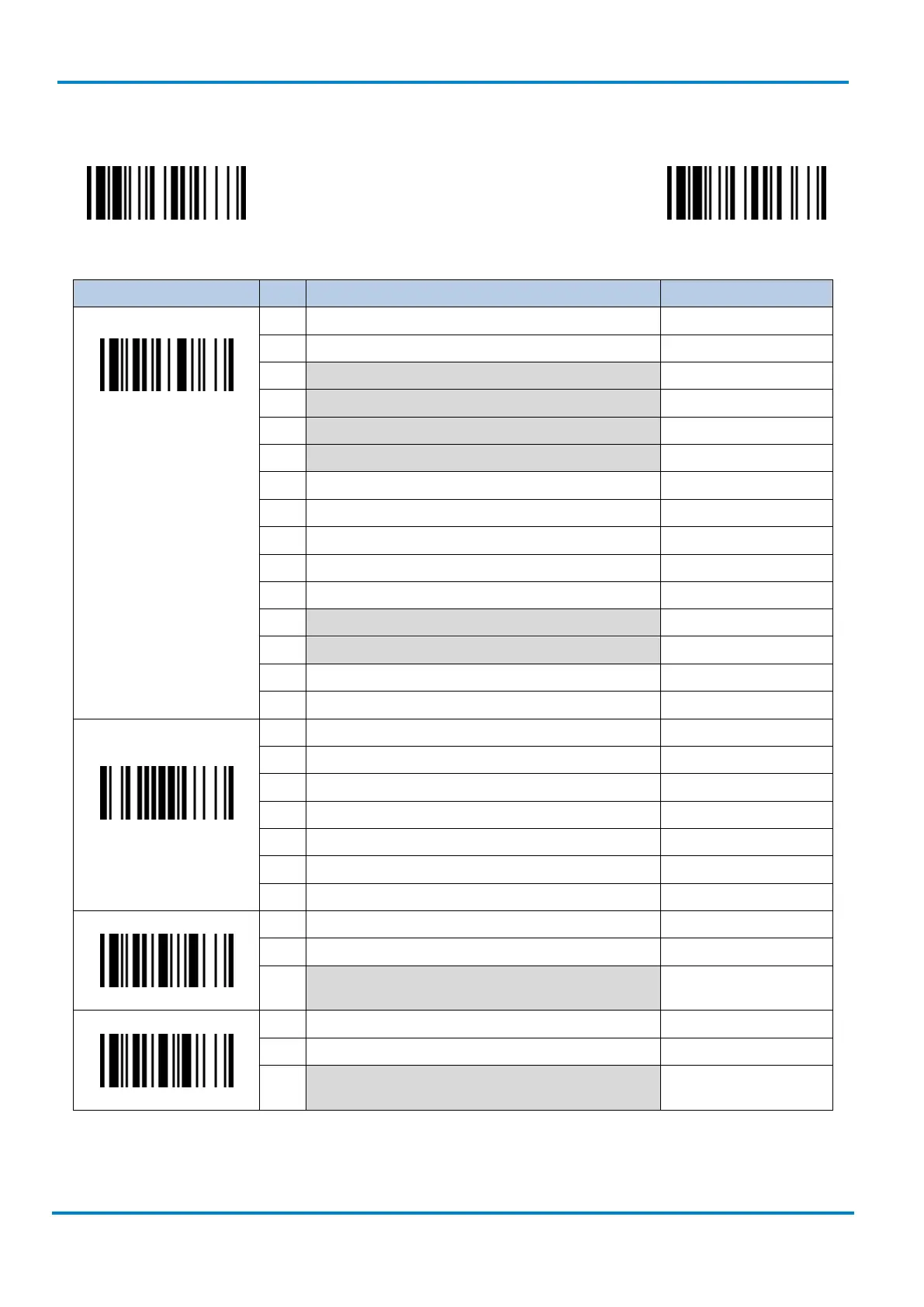

Codabar Settings
SS Disable Codabar 0
SS Enable Codabar  1
SS Select Codabar standard format  2
SS Select Codabar ABC format 3
SS Select Codabar CLSI format 4
SS Select Codabar CX format 5
SS Disable start/stop symbol transmission  6
SS Enable ABCD/ABCD start/stop symbol transmission 7
SS Enable abcd/abcd start/stop symbol transmission 8
SS Enable ABCD/TN*E start/stop symbol transmission 9
SS Enable abcd/tn*e start/stop symbol transmission A
SS Disable check digit verification  B
SS Enable check digit verification C
SS Disable check digit transmission  D
SS Enable check digit transmission E

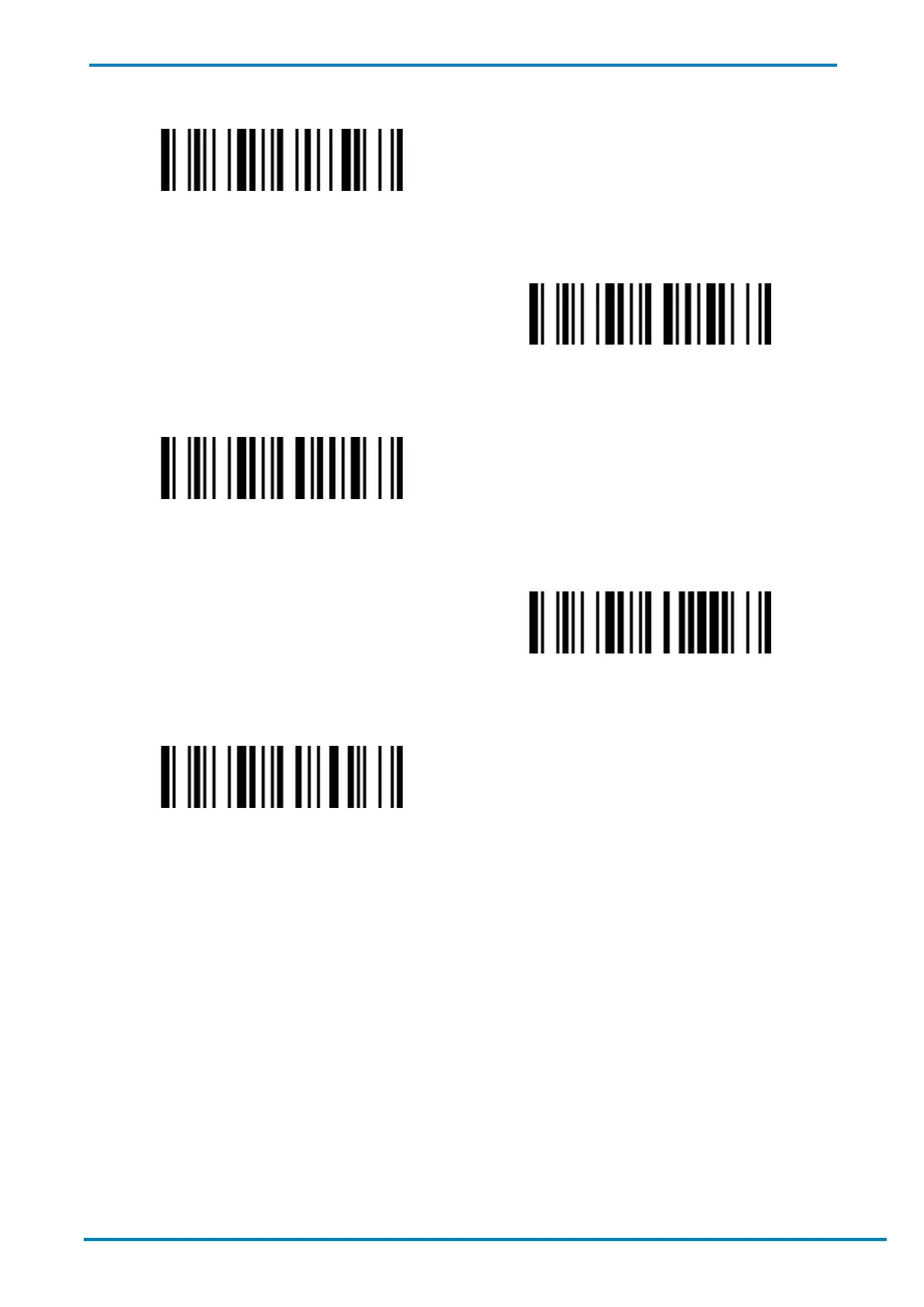

Codabar Check Digit
Settings
SS Modulus 16  0
SS Modulus 10/weight 3 1
SS Modulus 11 2
SS Modulus 10/weight 2 3
SS 7 check DR 4
SS Weight Modulus 11 5
SS Runes (Modulus 10/weight 2) 6
Codabar Min. Length
SS Default (04)  FIN
MS 01-98 (2 digits)
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
Codabar Max. Length
SS Default (98)  FIN
MS 01-98 (2 digits)
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
