SICK W34 Series User Manual

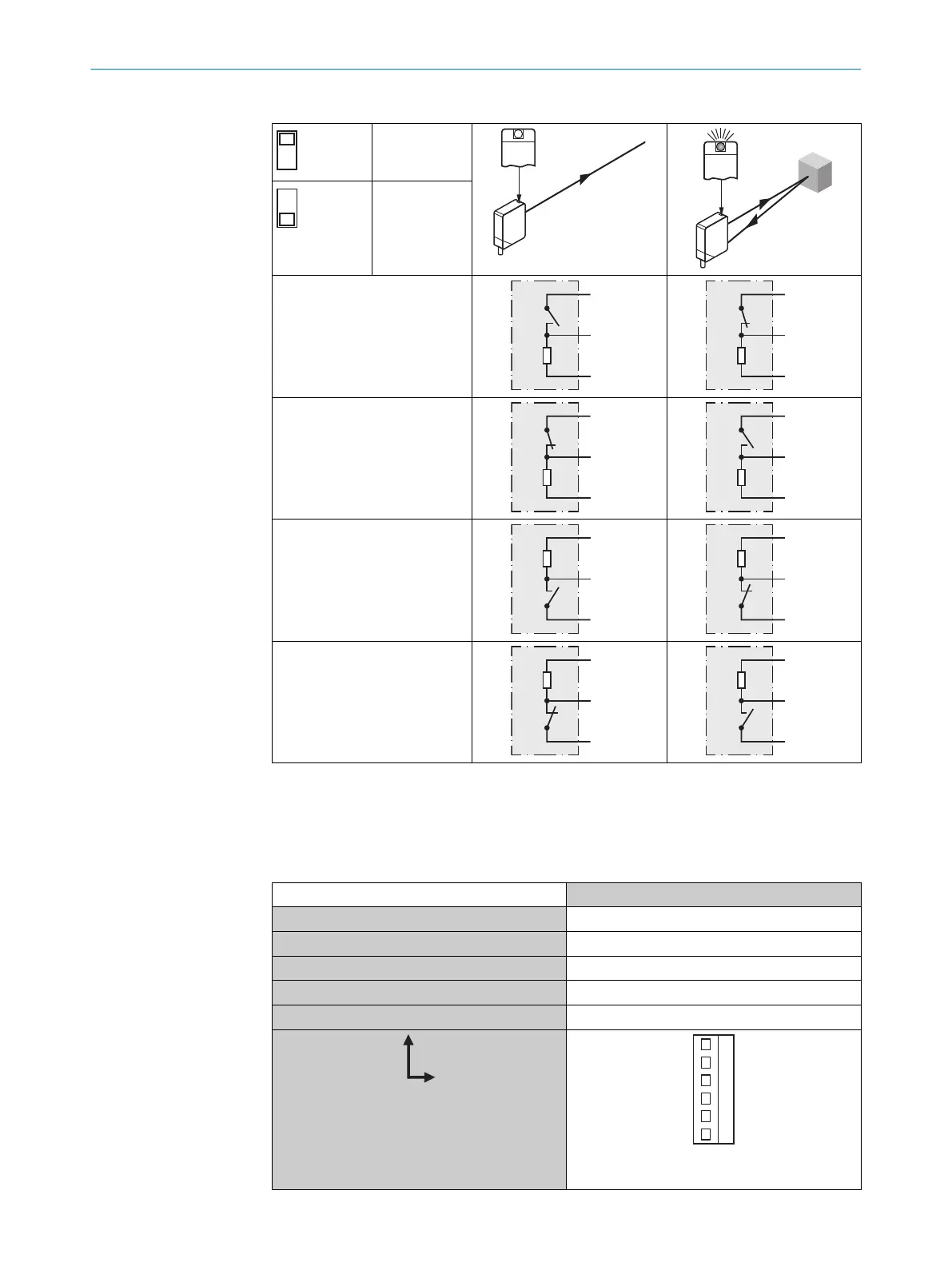

Tabela 33: CC
H
D
3
NPN
PNP
4
H, PNP: Q/Q (≤ 100 mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
D, PNP: Q/Q (≤ 100 mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
H, NPN: Q/Q (≤ 100 mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
D, NPN: Q/Q (≤ 100 mA)
+ (L+)
Q/Q
– (M)
+ (L+)
Q/Q
– (M)
45.2 WT34-Rxxx
U
B
20 V ... 250 V CA/CC, ver "Dados técnicos", página 57
Tabela 34: CA/CC
WT34-R2x0
1 L1 / +
2 N / -
3 relé
4 relé
5 relé
1 2 3 4 5
0,14 ... 1,5 mm
2
I
N
= 4 A
INSTALAÇÃO ELÉTRICA 45
8009202.11O1 | SICK
Subject to change without notice
51
