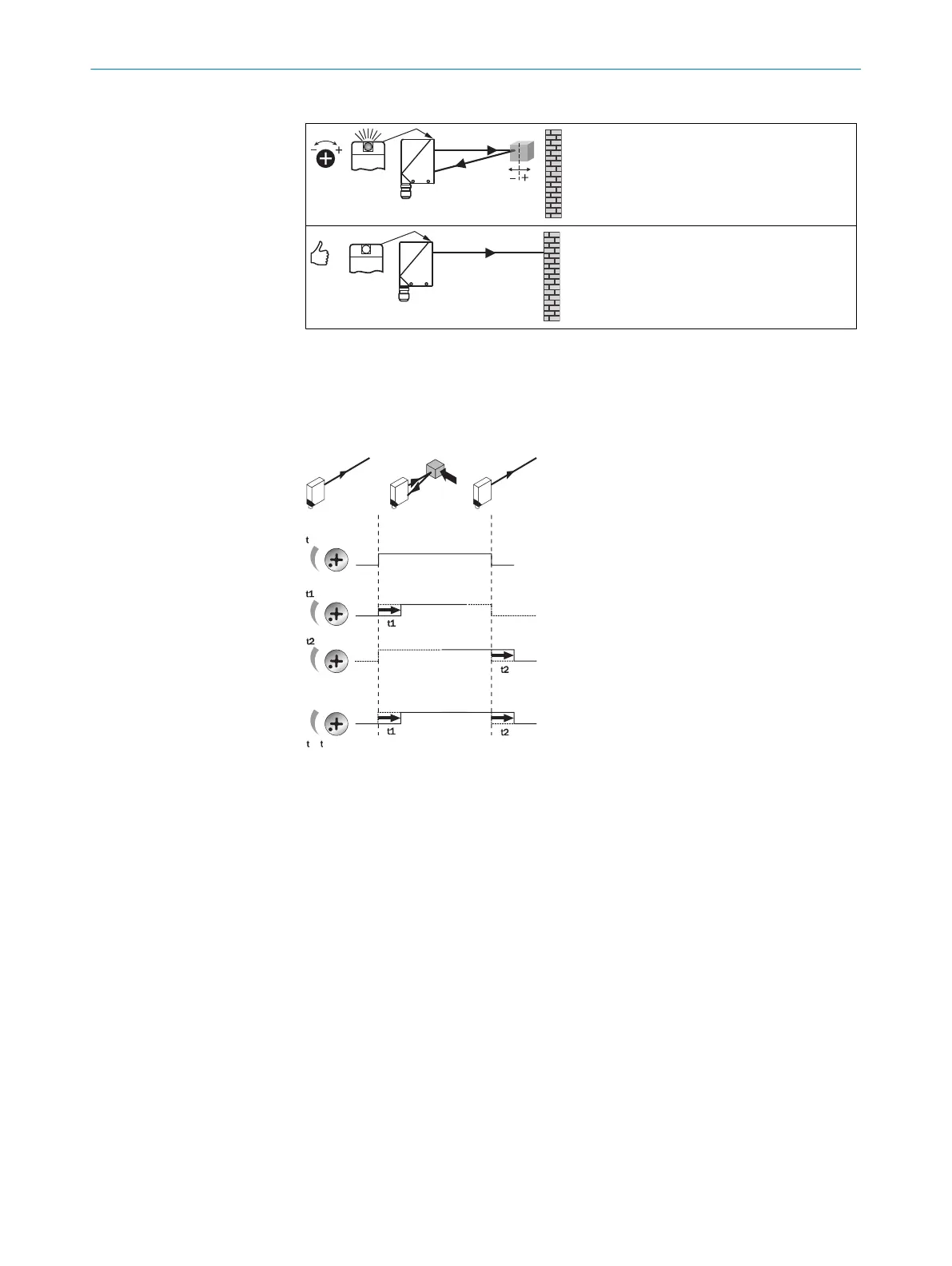

Table 8: Sensing range setting
The sensor is adjusted and ready for operation.
4 Time function setting
WT34xx2x, WT34-xx5x: no time delay, t1 = time delay, t2 = time delay; for -R: 0 = relay
deactivated, 1 = relay active. Time delay selector switch can be set on the device according
to the following graphic.
Time stages: 0.5 ... 10 s can be adjusted.
0
1 2
+
0.5 ... 10 sec.
0.5 ... 10 sec.
0.5 ... 10 sec.
Figure 7: Time functions
9 Devices with special features
WT34-V210S01, WT34-R210S02: preset to dark switching
WT34-B400S04: preset to light switching, light spot size approx. Ø 15 mm (1 m)
WT34-R210S06: close range blanking (no detection between 0 and 80 mm)
WT34-R220S07: black cover between sender and receiver
10 Troubleshooting
The Troubleshooting table indicates measures to be taken if the sensor stops working.
9 DEVICES WITH SPECIAL FEATURES
12
8009202.11O1 | SICK
Subject to change without notice
