Expanding the device and assigning device parameters
6.2 Expansion cards
SIMATIC IPC677E
74 Operating Instructions, 04/2019, A5E45117996-AA
Procedure - Installation
Damage to the expansion card.
The expansion card can break if excessive force is used.
• Do not apply any pressure.
• Do not apply excessive force on the slider when you push it onto the expansion card.

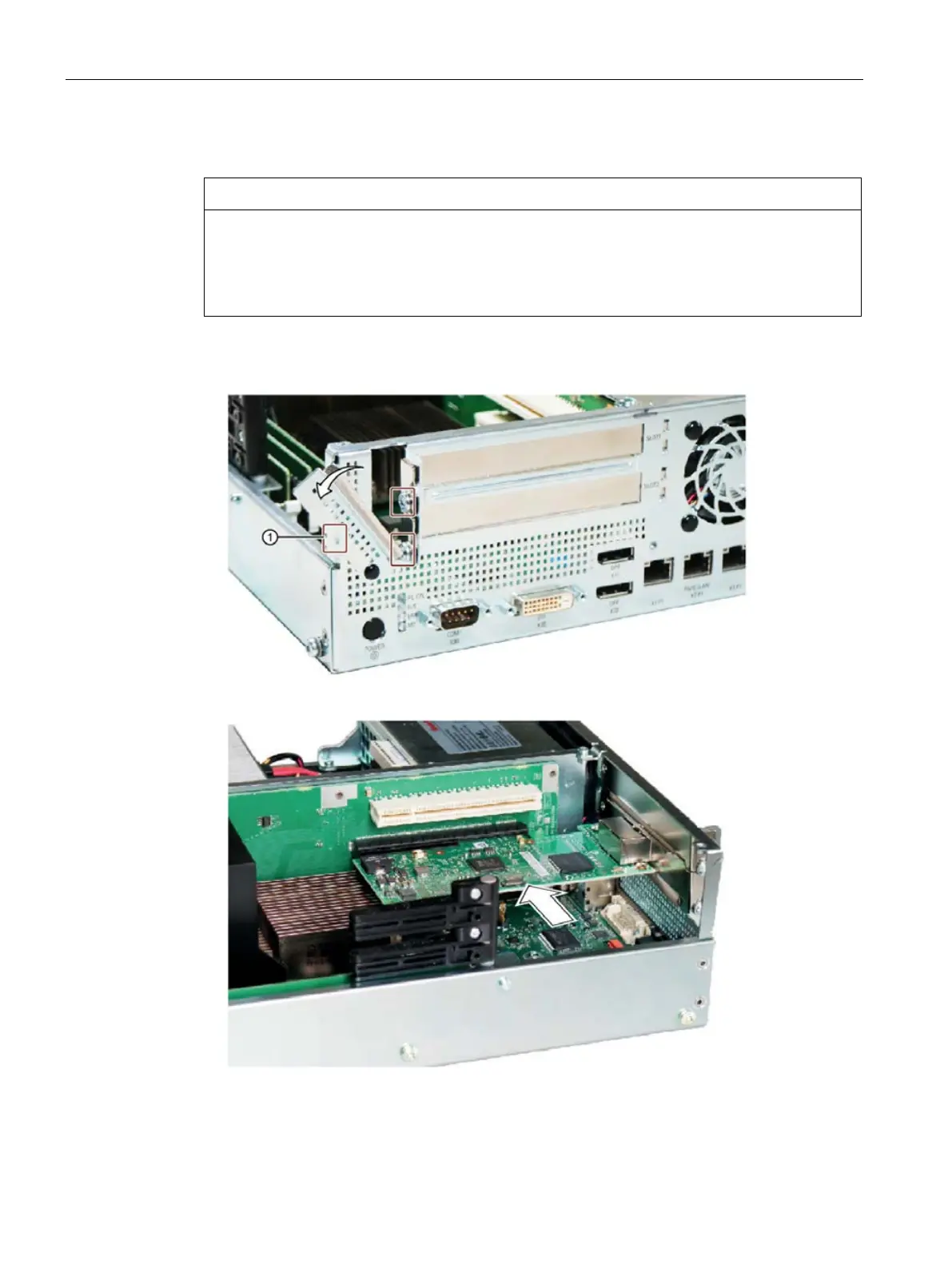

1. Remove the marked screw ① and swivel the cover to the side as shown. Then remove
the marked screws and the panels.
2. Insert the expansion card into the relevant slot.
