Expanding the device and assigning device parameters
6.2 Expansion cards
SIMATIC IPC677E
Operating Instructions, 04/2019, A5E45117996-AA
75

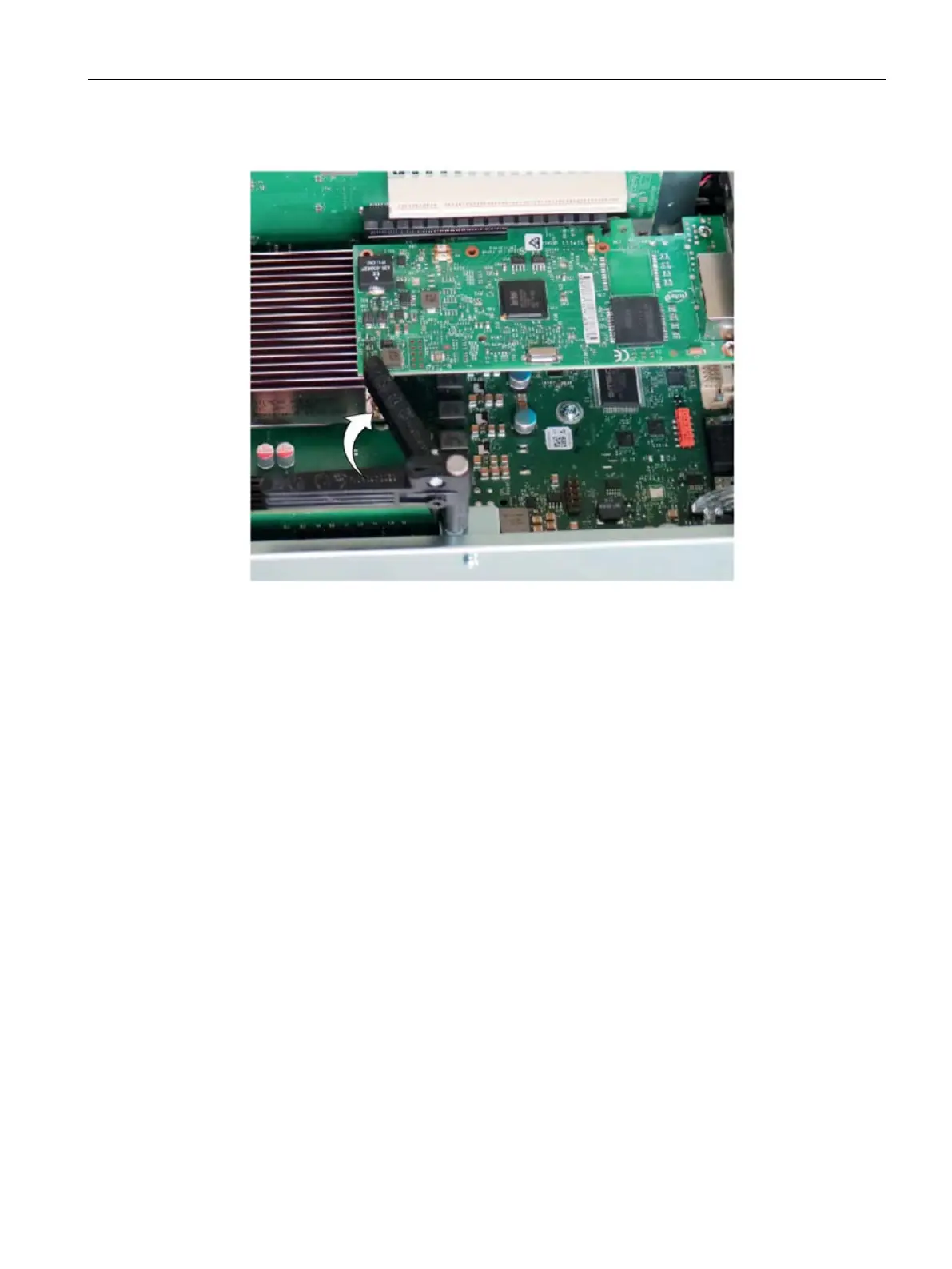

3. Secure the expansion card with the card retainer.
4. Fasten the slot cover of the expansion card (see step 1.)
Notes on the allocation of resources
The slots for the expansion cards come with exclusive interrupts. The assignment of the PCI
IRQ line to the PCI slot is explained in the chapter "Bus board (Page 133)".
Procedure - Removal
Proceed in reverse order of installation.
