Appendix
A.3 Alternative user interfaces
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
283
Live image display without links
Displays the images acquired by the optical reader in adjustment mode or processing mode. If
the visualization device provides Java script support, the displayed image is automatically
updated. This page does not provide any links to other pages.

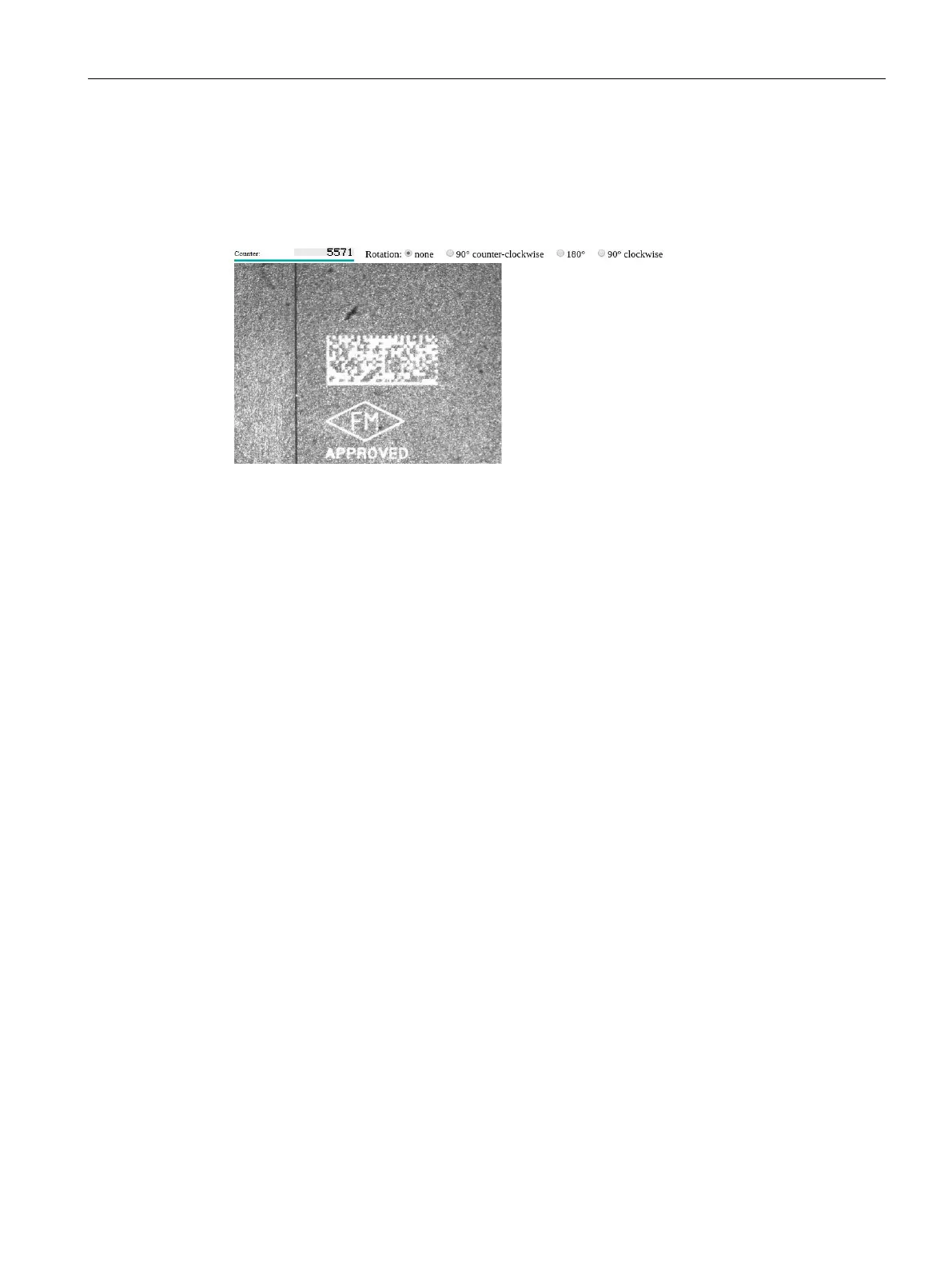

Figure A-3 Live image display without links
