Appendix
A.3 Alternative user interfaces
SIMATIC MV500
282 Operating Instructions, 03/2021, C79000-G8976-C494-05
Available HTML pages
Live image display with links
Displays the images acquired by the optical reader in adjustment mode or processing mode. If
the visualization device provides Java script support, the displayed image is automatically
updated. With the displayed links, you can call up other pages.

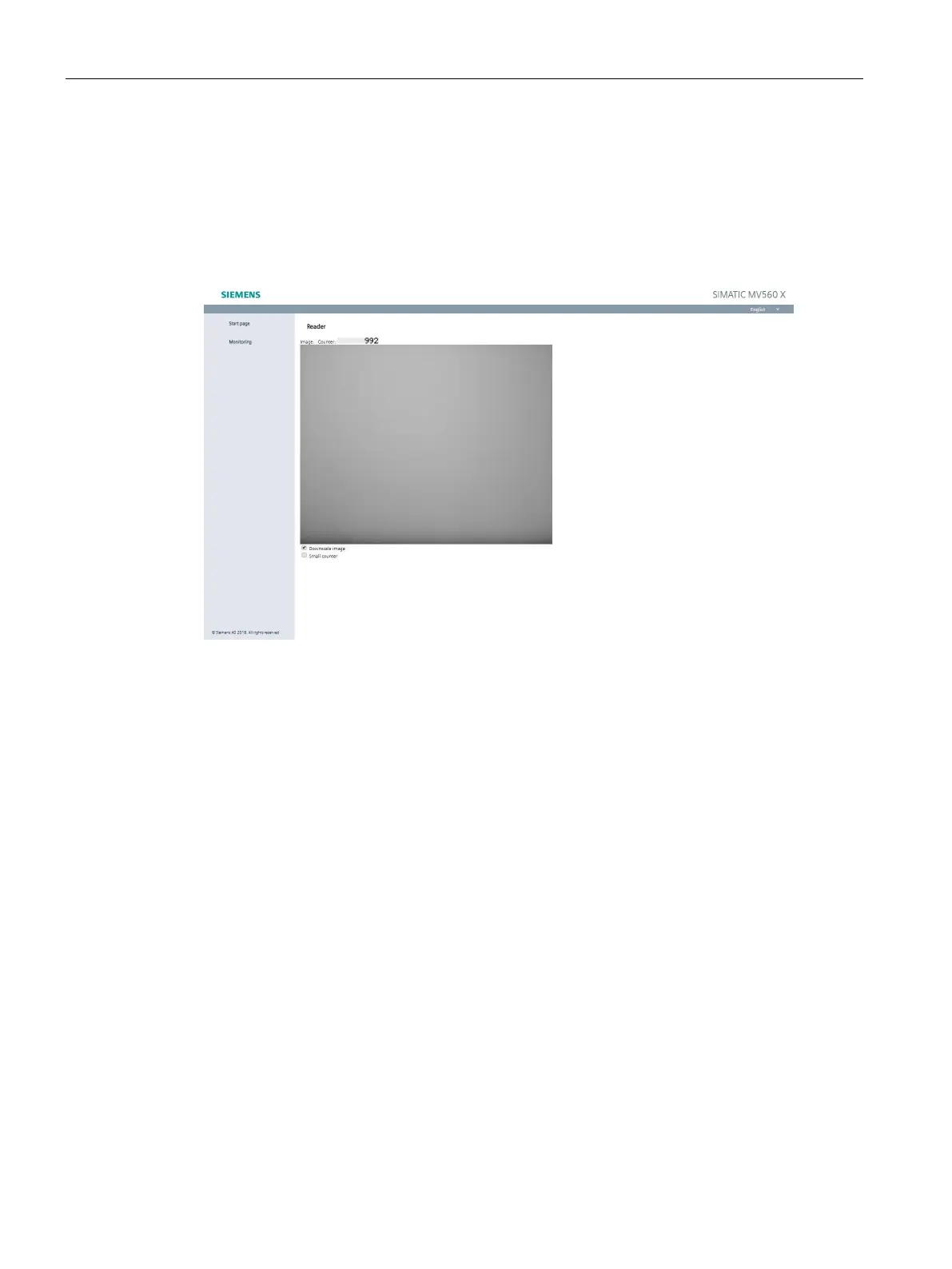

Figure A-2 Live image display with links
