Appendix
A.3 Alternative user interfaces
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
285
Monitoring
Non-embedded display of the last image processed in processing mode with colored overlay
showing the results of processing (ROIs and detail view).
Requires JavaScript support and Internet Explorer as of Version 8.
With a multi-code application, only the Grid and the Cells of the first recognized code are
displayed.

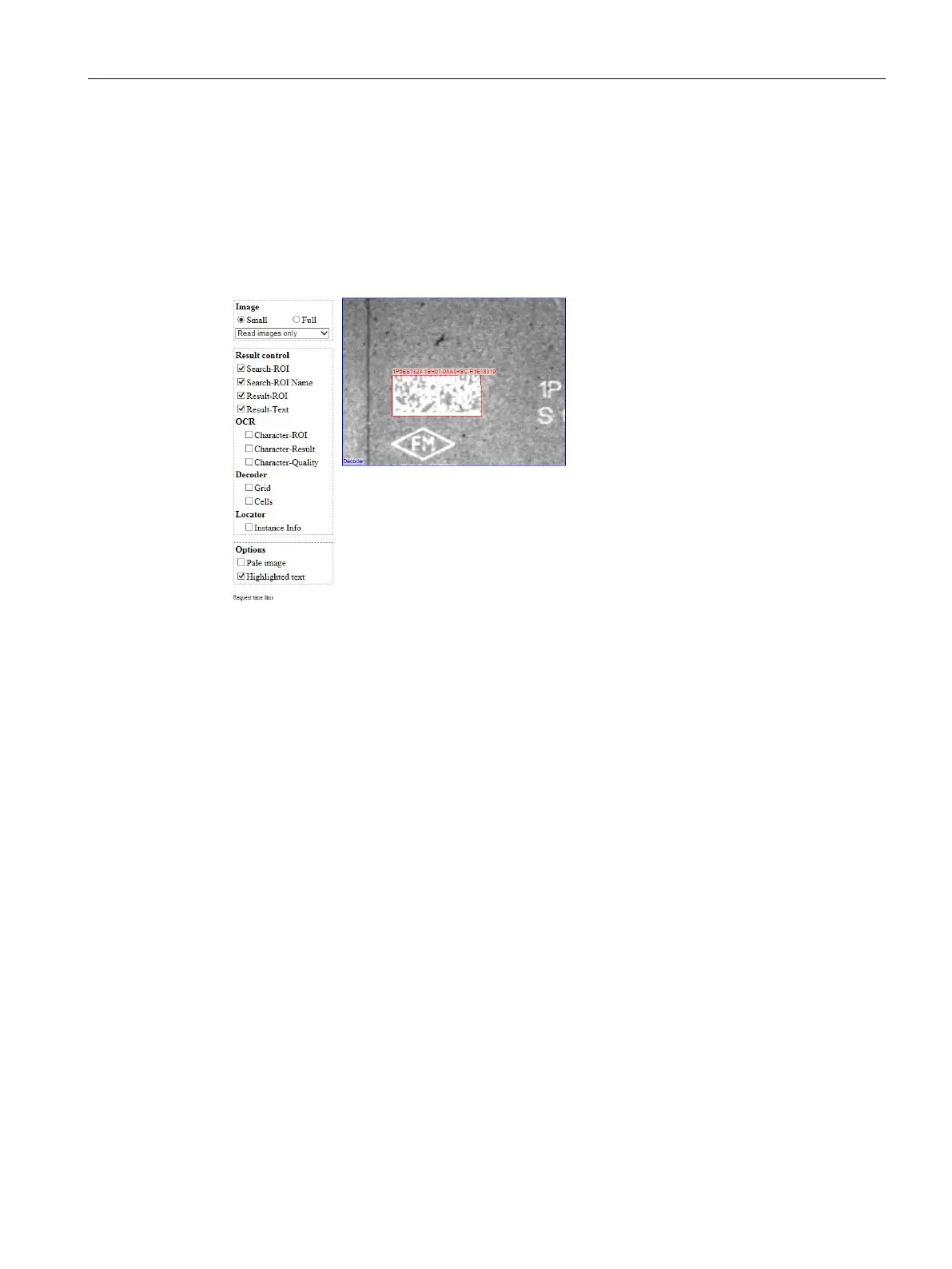

Figure A-5 Monitoring
