Appendix
A.3 Alternative user interfaces
SIMATIC MV500
286 Operating Instructions, 03/2021, C79000-G8976-C494-05
Diagnostic images
Provides a dynamically created HTML page with which you can display diagnostic images
buffered on the reader along with additional information. In the Options/Diag. & monitoring
tab in the user interface, you specify which images are buffered and displayed.

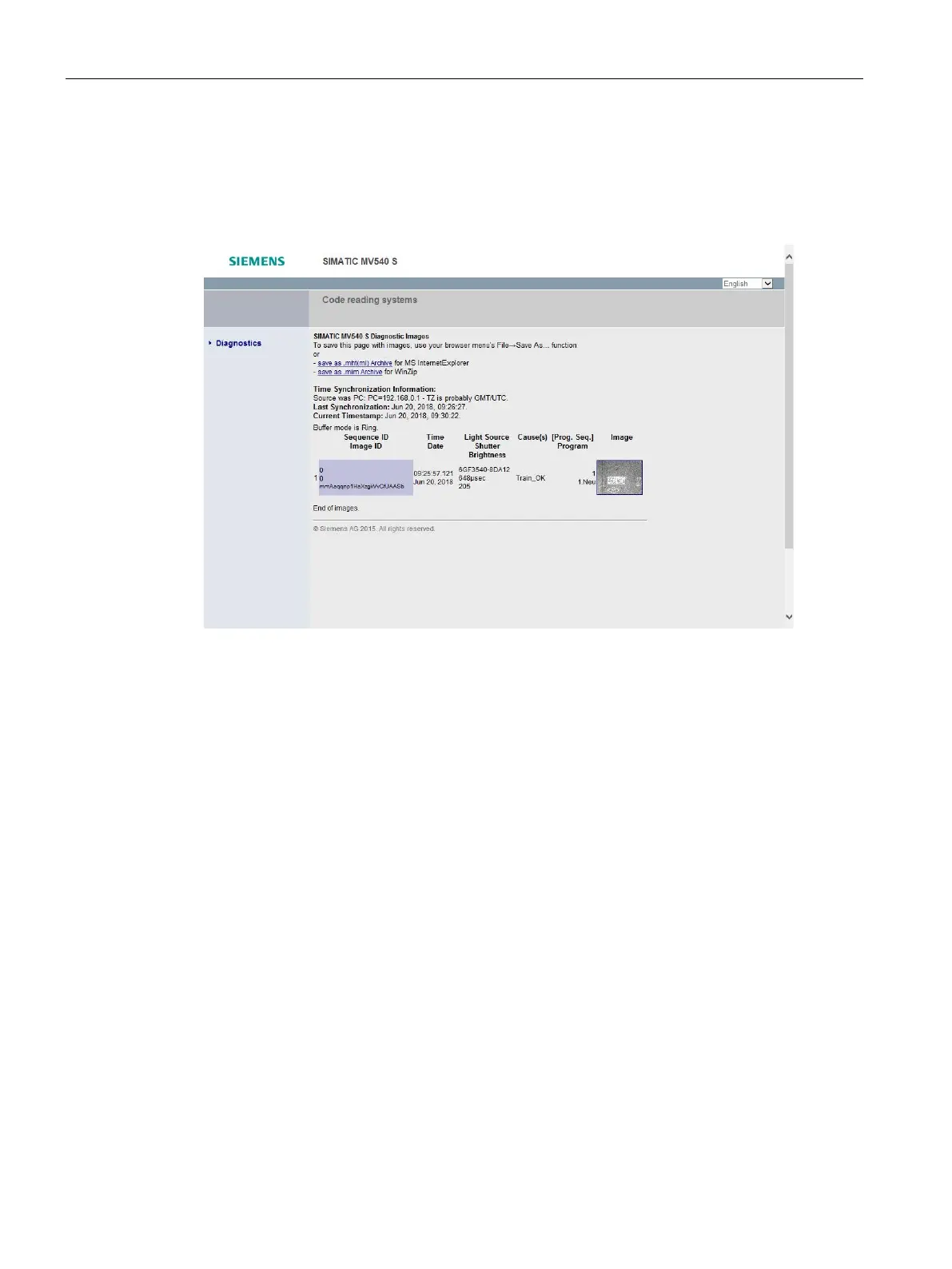

Figure A-6 Diagnostic images
Extended diagnostic images (optimized for Touch Panels)
Provides a dynamically created HTML page with which you can display diagnostic images
buffered on the optical reader along with additional information. In the
Options/Diag. & monitoring tab in the user interface, you specify which images are buffered
and displayed.
This page combines a large format image display with the most important additional
information about the image such as the read result and display of the quality values.
This page is particularly suitable when using Touch Panels.
