Infrared Link Modul (ILM)
6ZB530–3AC30–0BA1
32
Copyright  by Siemens
200 mm
20mm
80 mm80mm
6.4 mm
Thickness of sheet
approx. 3 mm depending on
mech. requirements
Diameter 171.1 mm

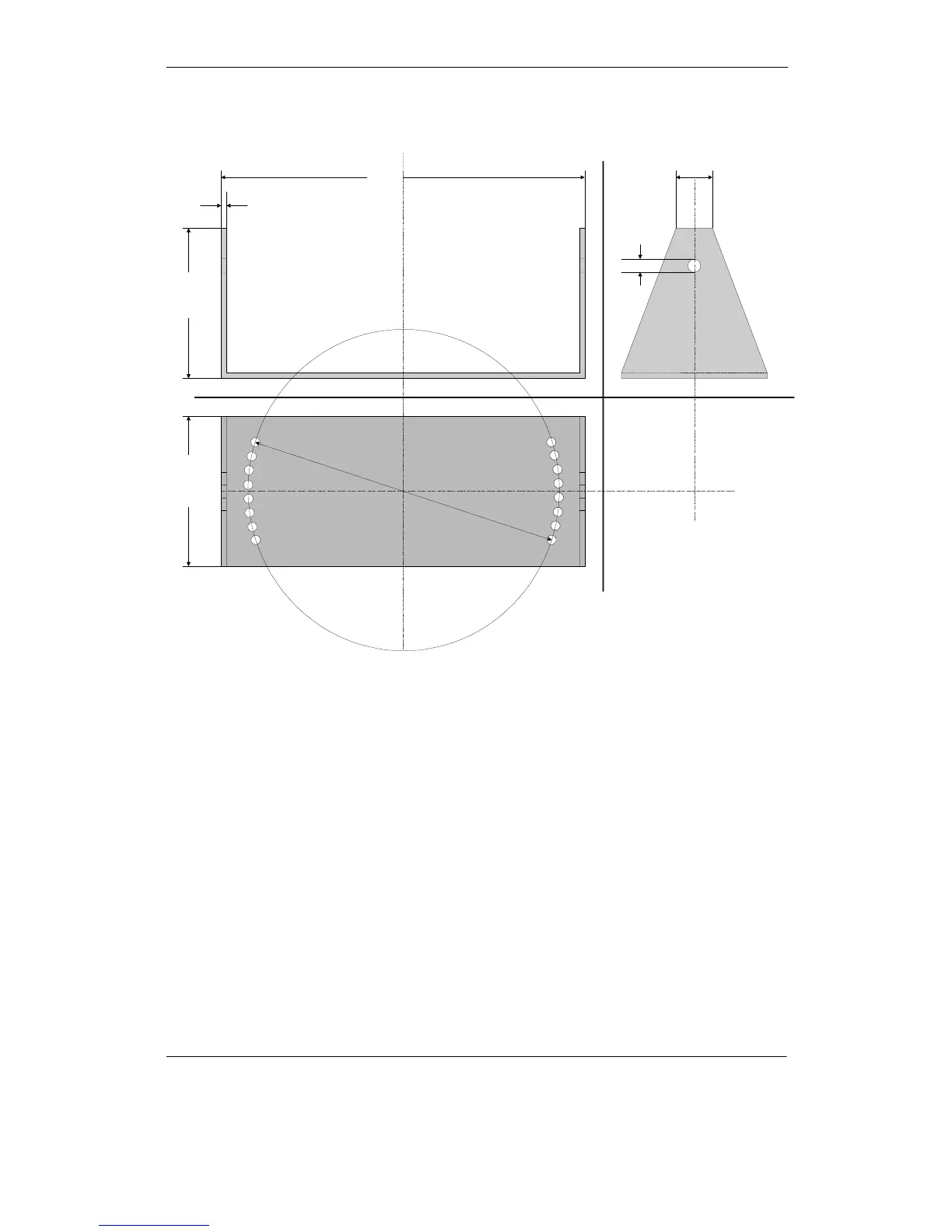

Figure 12: Example of a Simple Mounting Bracket
Instead of drilling individual holes in a circular arc with a diameter of 171.1 mm with 4.5 mm diameter pairs of
holes opposite each other, you can also cut two arc-shaped slits in the plate.This requires a cutting device but
has the advantage that the ILM can be aligned continuously and therefore more accurately on the vertical axis
during operation.
