Configuring Networks
3-25
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
Entering the Cabling Configuration
You can make the settings for the cabling configuration (number of OLMs, cable
length) in the “Cables” tab under “Options”.

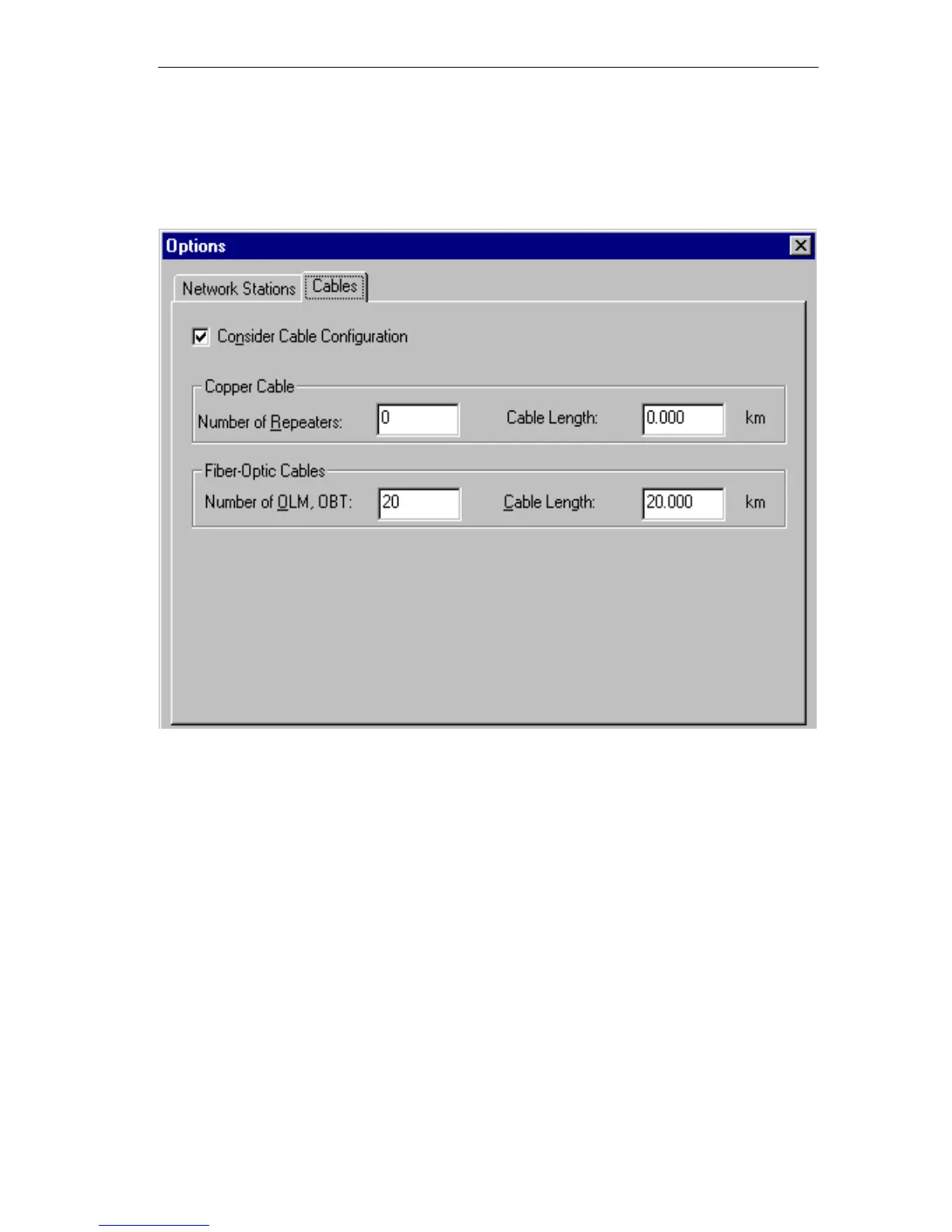

Figure 3-5 “Options” –> “Cables” Tab
