3.12 Digital input module SM 321; DI 16 x 24/48 VUC (6ES7321-1CH00-0AA0)
S7-300 Automation System Module data
3-36 Manual, 08/2006, A5E00105505-04
3.12 3.12 Digital input module SM 321; DI 16 x 24/48 VUC
(6ES7321-1CH00-0AA0)
Order number
6ES7321-1CH00-0AA0
Properties
Properties of SM 321; DI 16 x UC24/48 V:
● 16 inputs, electrically isolated
● Electrical isolation between channels of 120 V AC
● Rated input voltage 24 VDC/VAC to 48 VDC/VAC
● Inputs are fully independent and may be wired as required

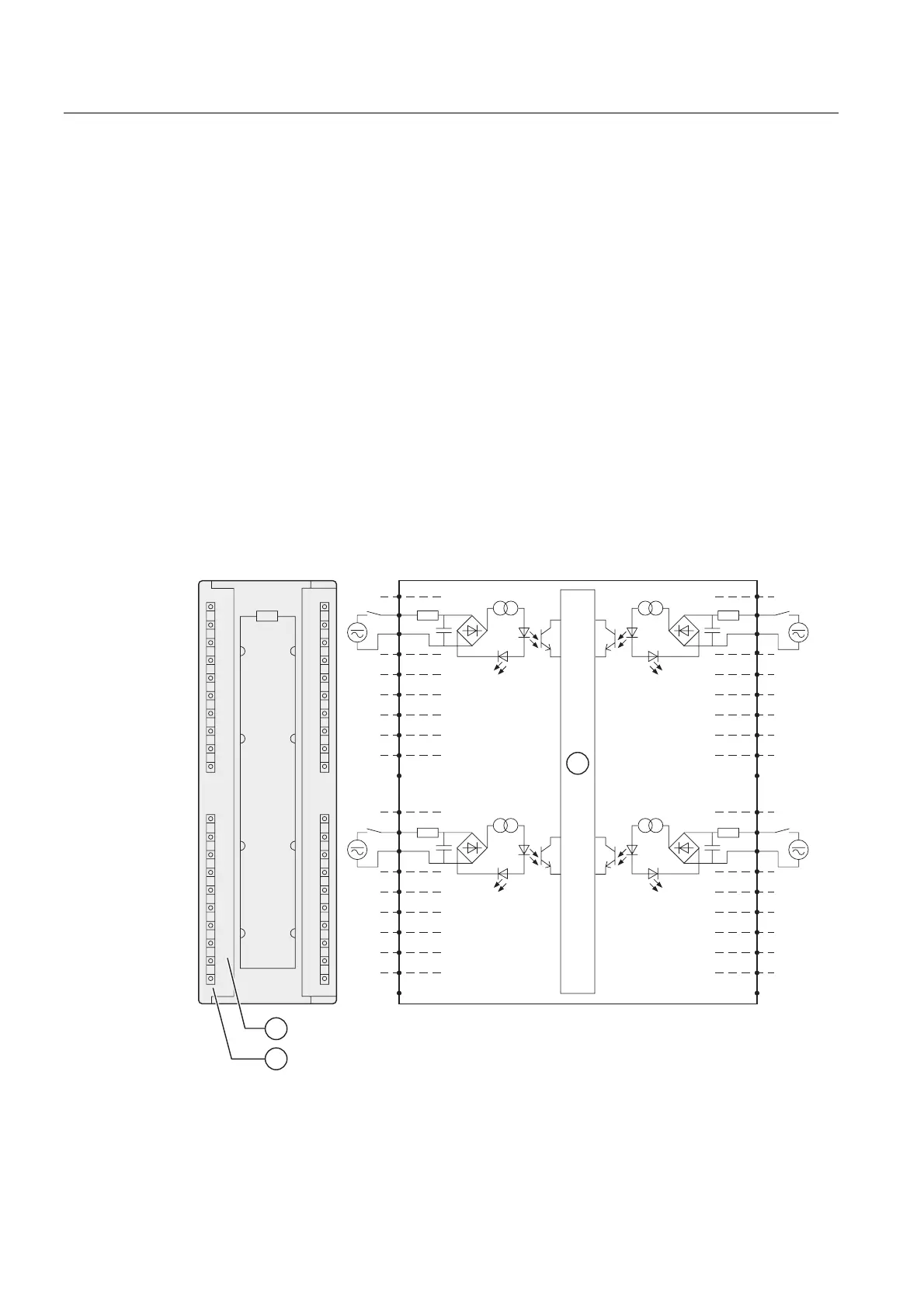

Wiring and block diagrams of SM 321; DI 16 x UC 24/48 V
① Channel number
② Status display - green
③ Backplane bus interface
