3.22 Digital output module SM 322; DO 16 x AC 120/230 V/1 A; (6ES7322-1FH00-0AA0)
S7-300 Automation System Module data
3-66 Manual, 08/2006, A5E00105505-04
3.22 3.22 Digital output module SM 322; DO 16 x AC 120/230 V/1 A;
(6ES7322-1FH00-0AA0)
Order number
6ES7322-1FH00-0AA0
Properties
Properties of the digital output module SM 322; DO 16 x AC120/230 V/1 A:
● 16 outputs, fused and electrically isolated in groups of 8
● Output current 1 A
● Rated load voltage 120/230 VAC
● Suitable for AC solenoids, actuators, motor starters, FHP motors and signal lamps

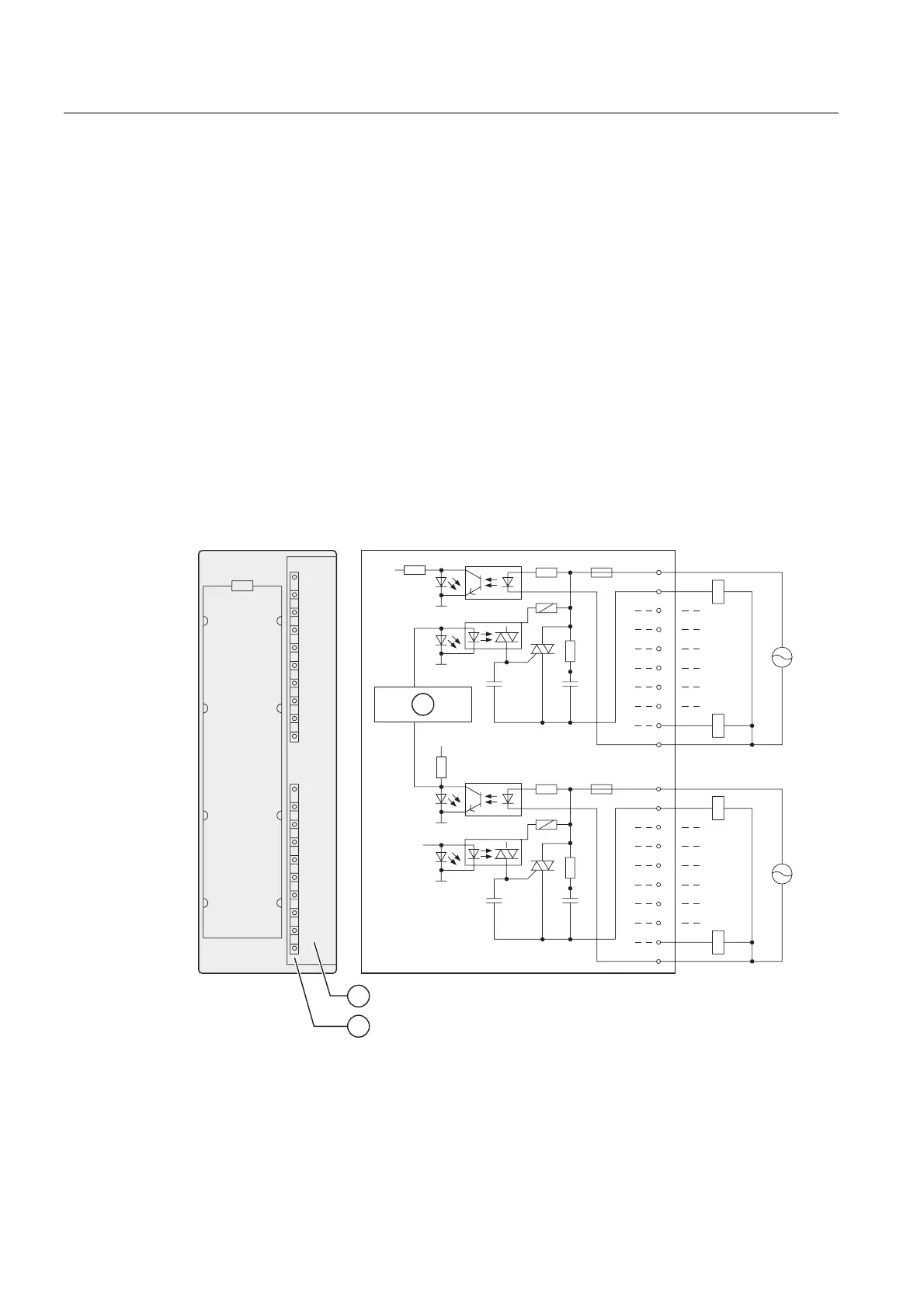

Wiring and block diagrams of SM 322 DO 16 x AC120/230 V/1 A
/
1
0
0
/
1
0
0
6)
9
6)
9
6)
① Channel number
② Status LEDs - green
Error LED - red
③ Backplane bus interface
