Digital modules

3.35 Relay output module SM 322; DO 8 x Rel. 230VAC/5A; (6ES7322-5HF00-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

209

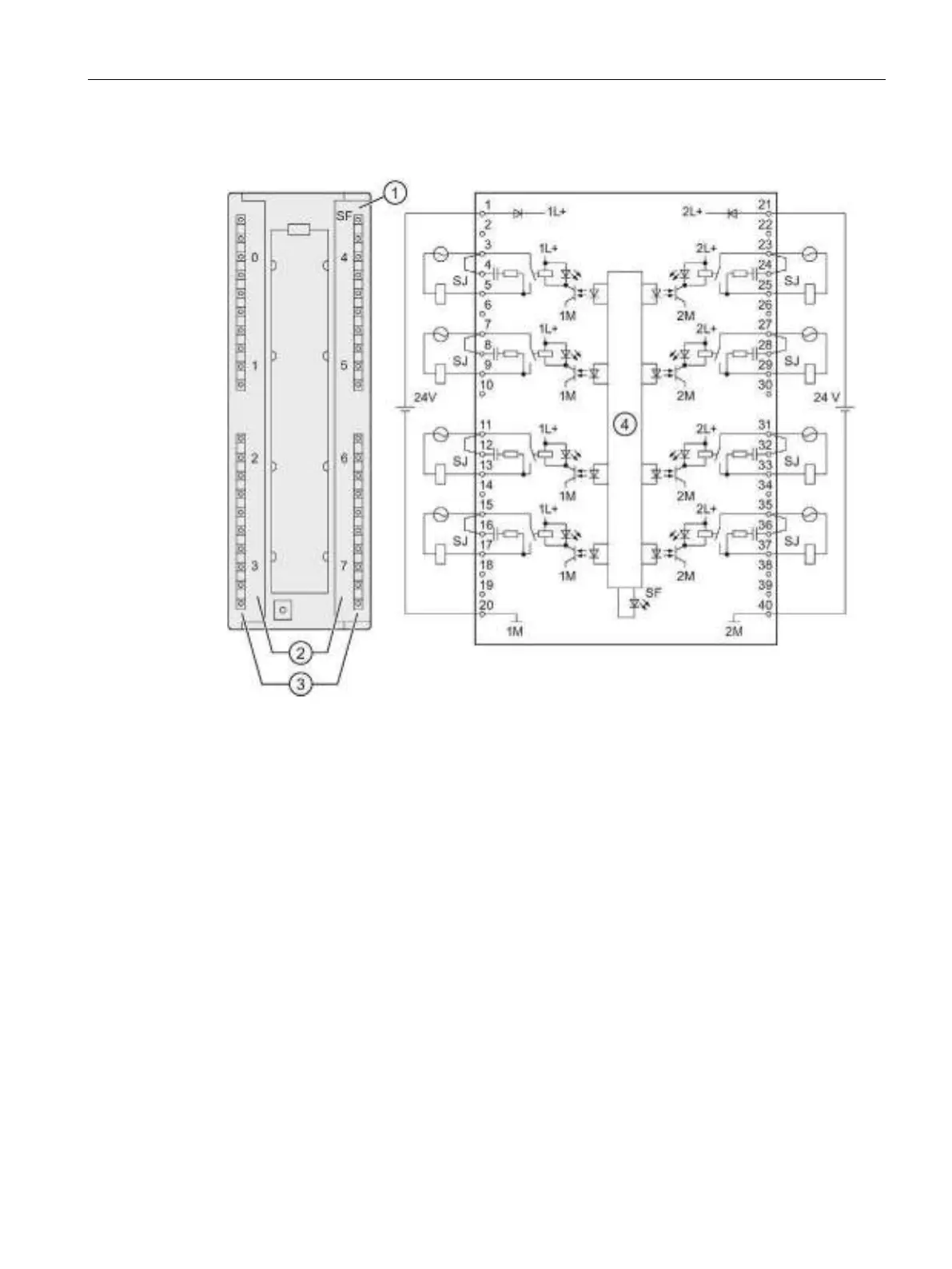

Wiring and block diagram of SM 322; DO 8 x Rel. 230 V AC / 5A

①

Error LED - red

②

Channel number

③

Status display - green

④

Backplane bus interface
