Siemens SIMATIC User Manual

Digital modules
3.35 Relay output module SM 322; DO 8 x Rel. 230VAC/5A; (6ES7322-5HF00-0AB0)
S7-300 Module data
210 Manual, 06/2017, A5E00105505-AJ
Operation on safety extra-low voltage (SELV)
Make allowances for the special feature outlined below when operating the
6ES7322-5HF00-0AB0 relay output module on SELV:

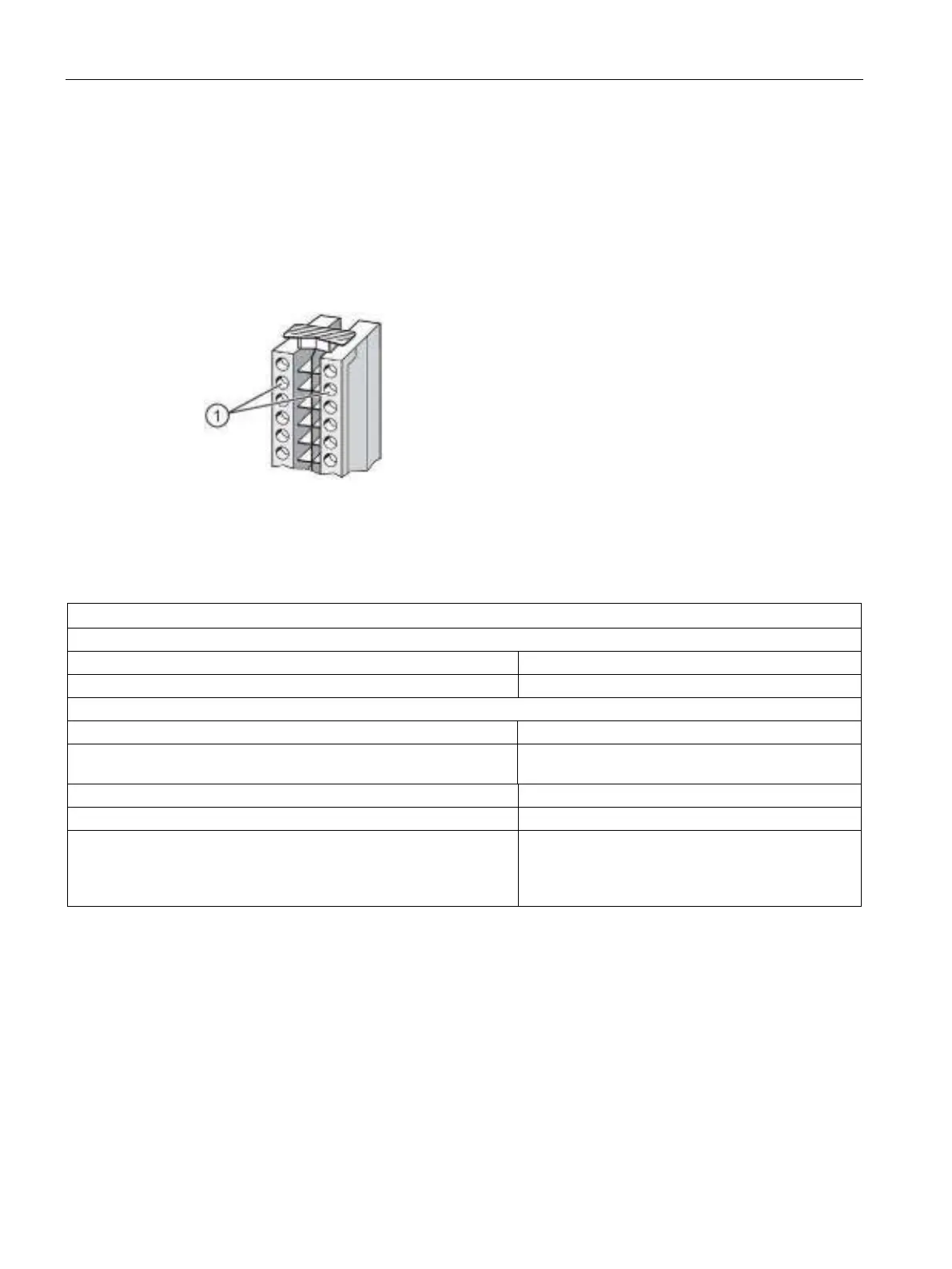

The horizontally adjacent terminal of a terminal operated on SELV may not be operated at a
rated voltage higher than 120 VUC. When operated at voltages higher than 120 VUC, the
creepage distances and air gaps in the 40-pin front connector do not meet SIMATIC
requirements of safe electrical separation.
①
If one of two horizontally adjacent terminals is operated on SELV, the other terminal may not be
operated at more than 120 VUC.
Technical specifications of the SM 322; DO 8 x Rel. 230 V AC / 5A
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm)
40 x 125 x 117
Weight
ca. 320 g
Module-specific data
Supports parameter reassignment in RUN
Yes
• Reaction of non-programmed outputs
Return the output value which was valid before the
parameterization
Supports isochronous mode no
Number of outputs
8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
