Digital modules

3.36 Relay output module SM 322; DO 8 x Rel. AC 230 V/5 A; (6ES7322-1HF10-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

217

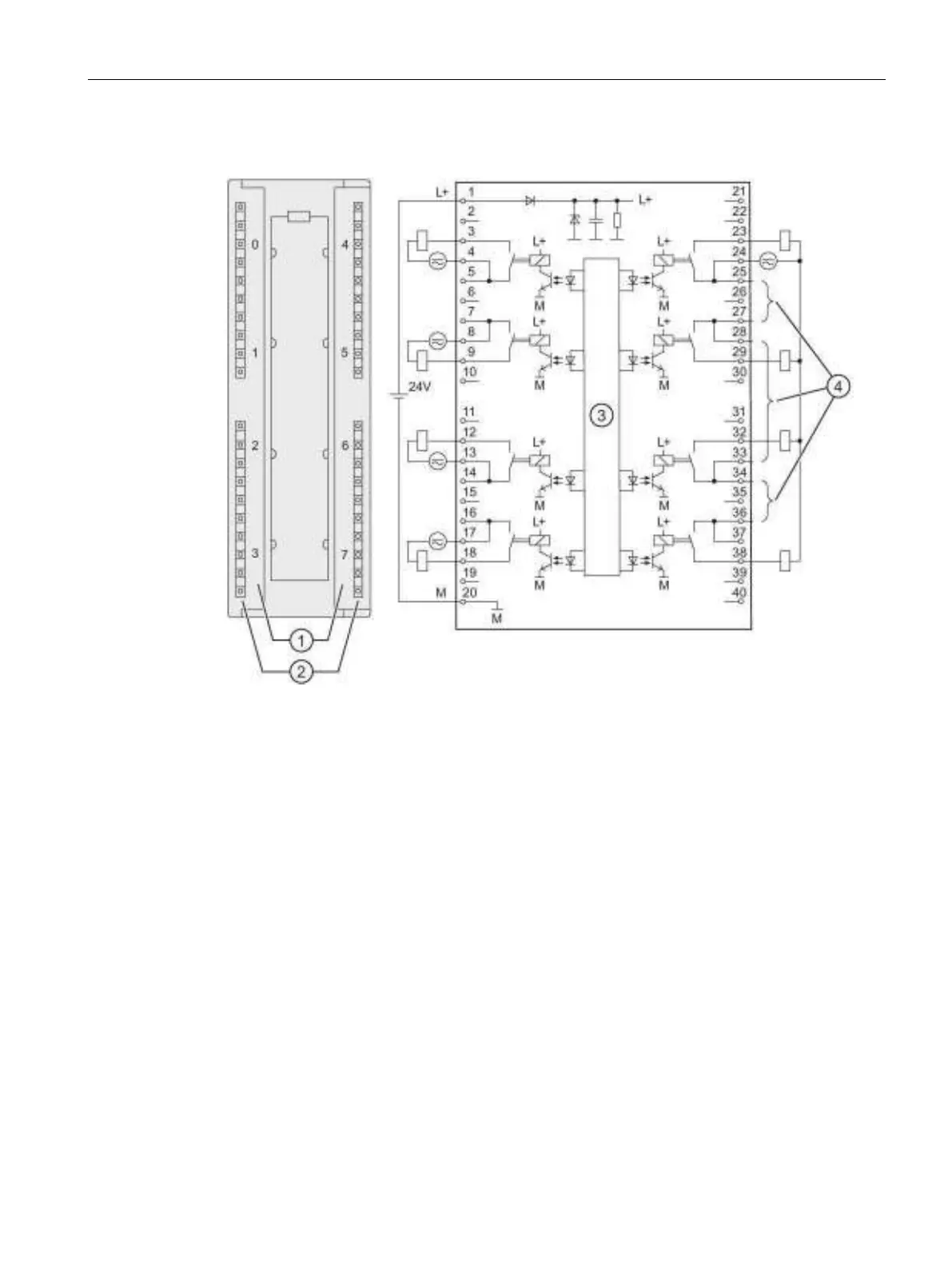

Wiring and block diagram of SM 322; DO 8 x Rel. 230 V AC / 5 A

①

Channel number

②

Status displays - green

③

Backplane bus interface

④

Options of looping the power supply to contacts

Accumulated current

≦ 8 A at T

≦ 30 °C

Accumulated current

≦ 5 A at T

≦ 60 °C
