Siemens SIMATIC User Manual

Digital modules
3.36 Relay output module SM 322; DO 8 x Rel. AC 230 V/5 A; (6ES7322-1HF10-0AA0)
S7-300 Module data
218 Manual, 06/2017, A5E00105505-AJ
Operation on safety extra-low voltage (SELV)
Make allowances for the special feature outlined below when operating relay output module
322-1HF10 on SELV:
To operate a terminal on SELV, the horizontally adjacent terminal may not be operated at a
rated voltage higher than 120 VUC. The creepage distances and air gaps of the 40-pin front
connector do not meet SIMATIC requirements in terms of safe electrical separation if
operated with voltages above 120 VUC.

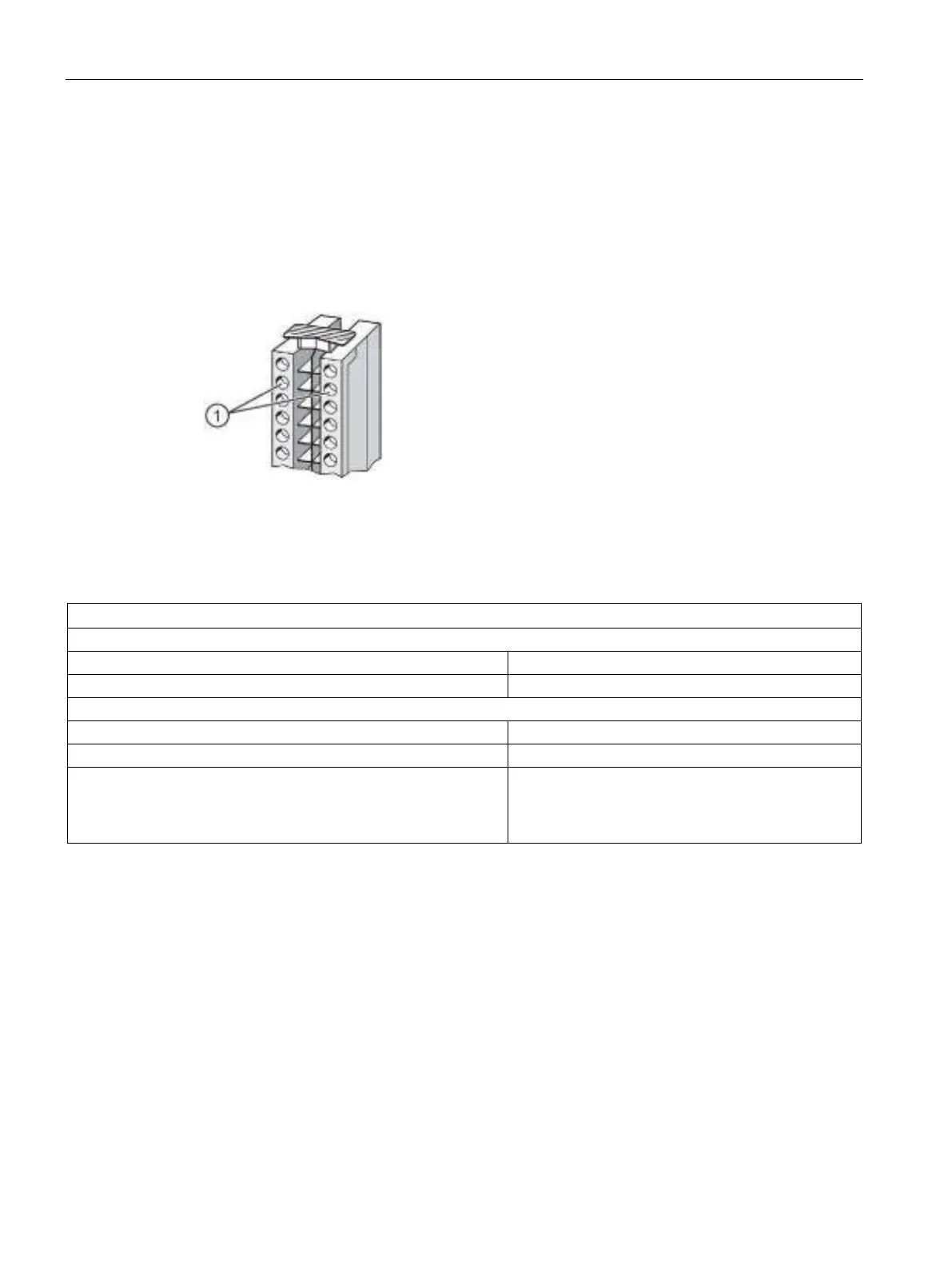

①
If one of two horizontally adjacent terminals is operated on SELV, the other terminal may not be
operated at more than 120 VUC.
Technical specifications of the SM 322; DO 8 x Rel. 230 V AC / 5 A
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm)
40 x 125 x 120
Weight
ca. 320 g
Module-specific data
Supports isochronous mode
no
Number of outputs
8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
