Principles of analog value processing

4.2 Wiring and connecting transducers to analog inputs

S7-300 Module data

242 Manual, 06/2017, A5E00105505-AJ

Wiring non-isolated transducer to electrically isolated AI

When connecting non-isolated transducers to electrically isolated modules, the CPU / IM 153

can be operated in grounded or ungrounded mode.

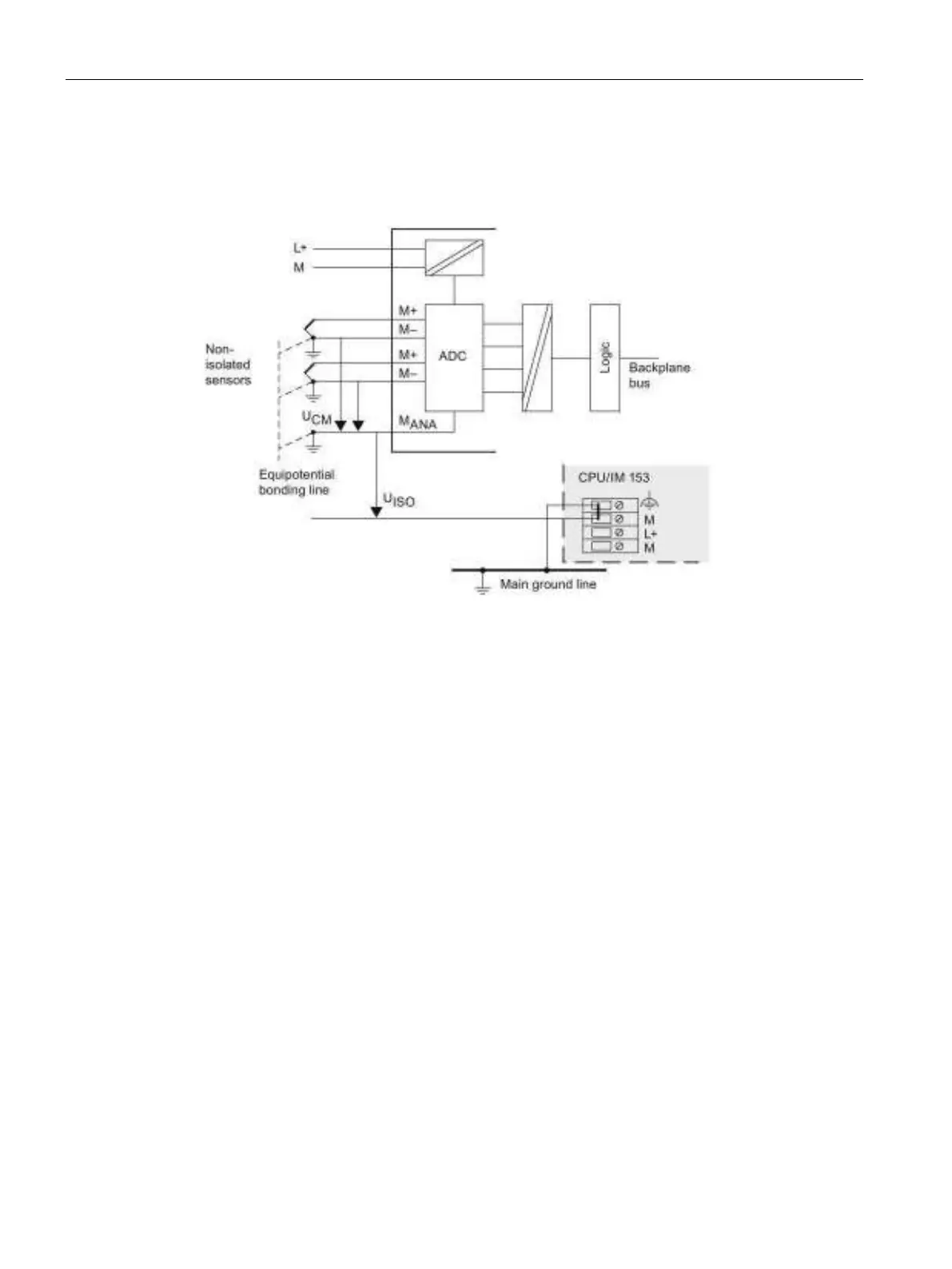

Figure 4-3 Wiring non-isolated transducer to electrically isolated AI
