Principles of analog value processing

4.2 Wiring and connecting transducers to analog inputs

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

243

Wiring non-isolated transducer to a non-isolated AI

Always operate the CPU / IM 153 in grounded mode if you connect non-isolated transducers

to non-isolated modules.

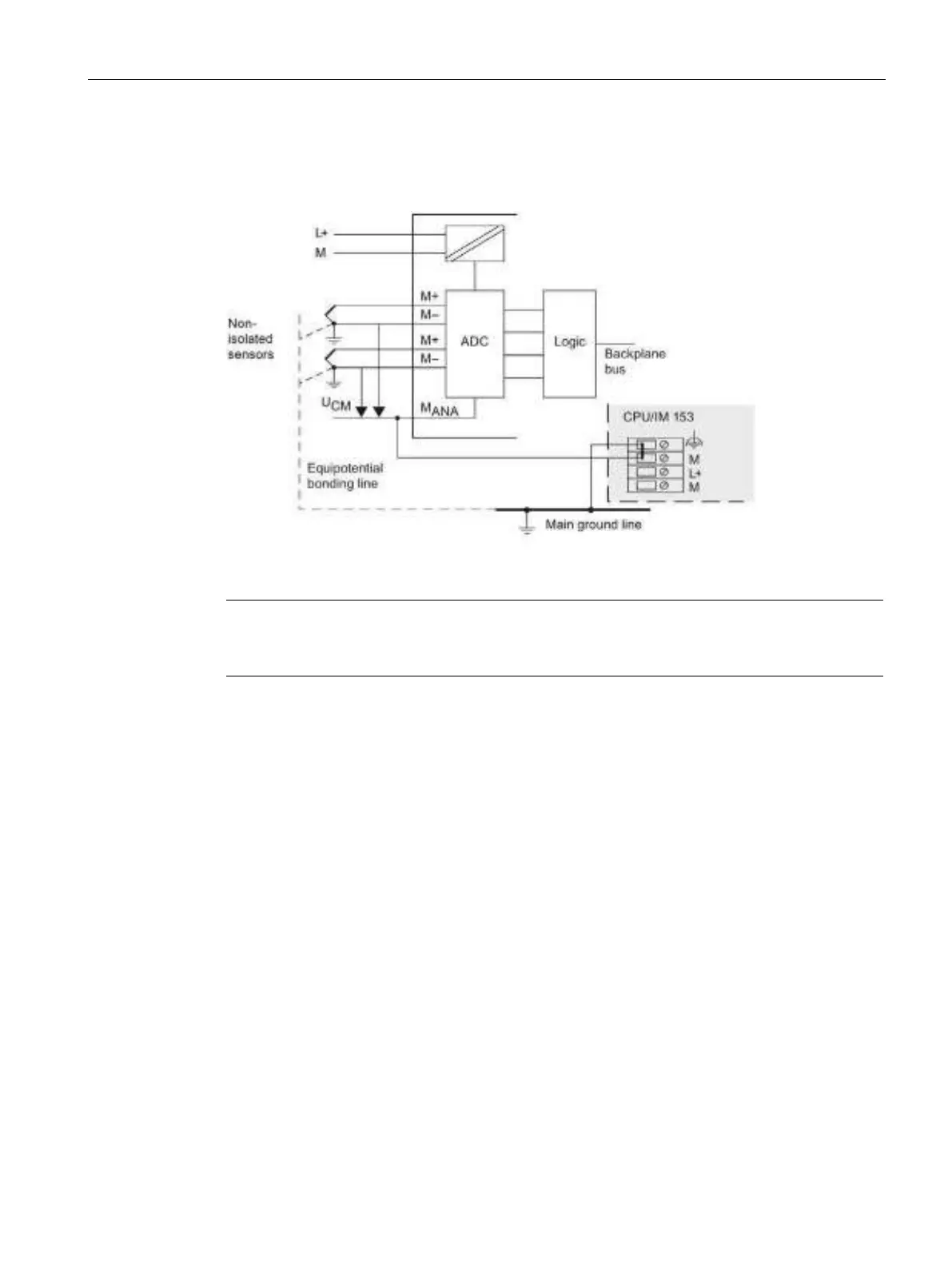

Figure 4-4 Wiring non-isolated transducers to a non-isolated AI

Note

You may not connect non

-isolated 2-wire transducers/resistive transducers to non-isolated

analog inputs!
