Analog modules

6.4 Analog input module SM 331; AI 8 x 16 Bit; (6ES7331-7NF10-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

319

Wiring: Voltage and current measurement

Connection possible at both sides to channels 0 to 7

①

Connection for voltage measurement

②

Equipotential bonding

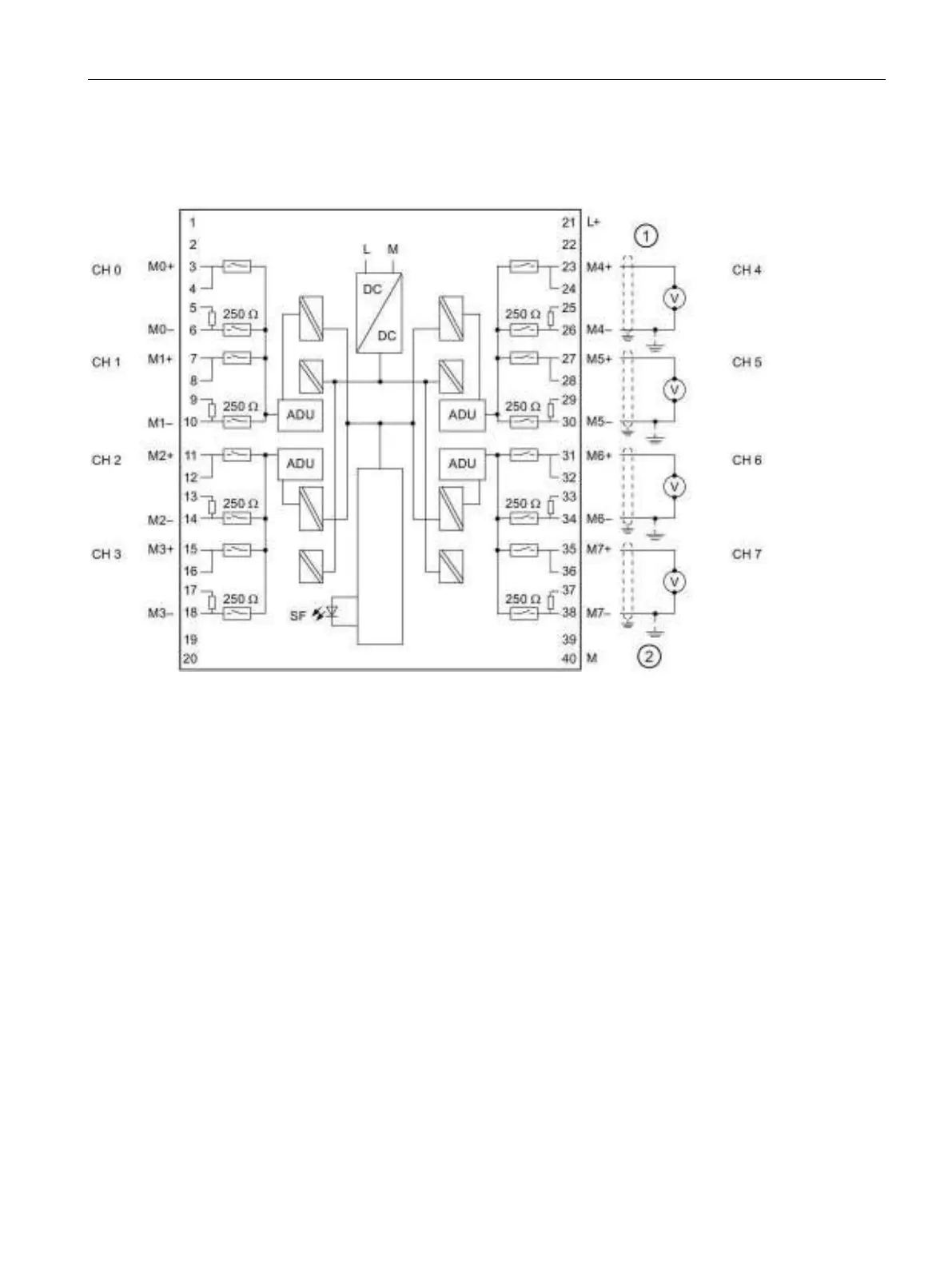

Figure 6-3 Wiring and block diagram
