Analog modules

6.4 Analog input module SM 331; AI 8 x 16 Bit; (6ES7331-7NF10-0AB0)

S7-300 Module data

320 Manual, 06/2017, A5E00105505-AJ

Wiring: 2-wire and 4-wire transducer

Connection possible at both sides to channels 0 to 7

①

2-wire transducer

②

4-wire transducer

③

Equipotential bonding

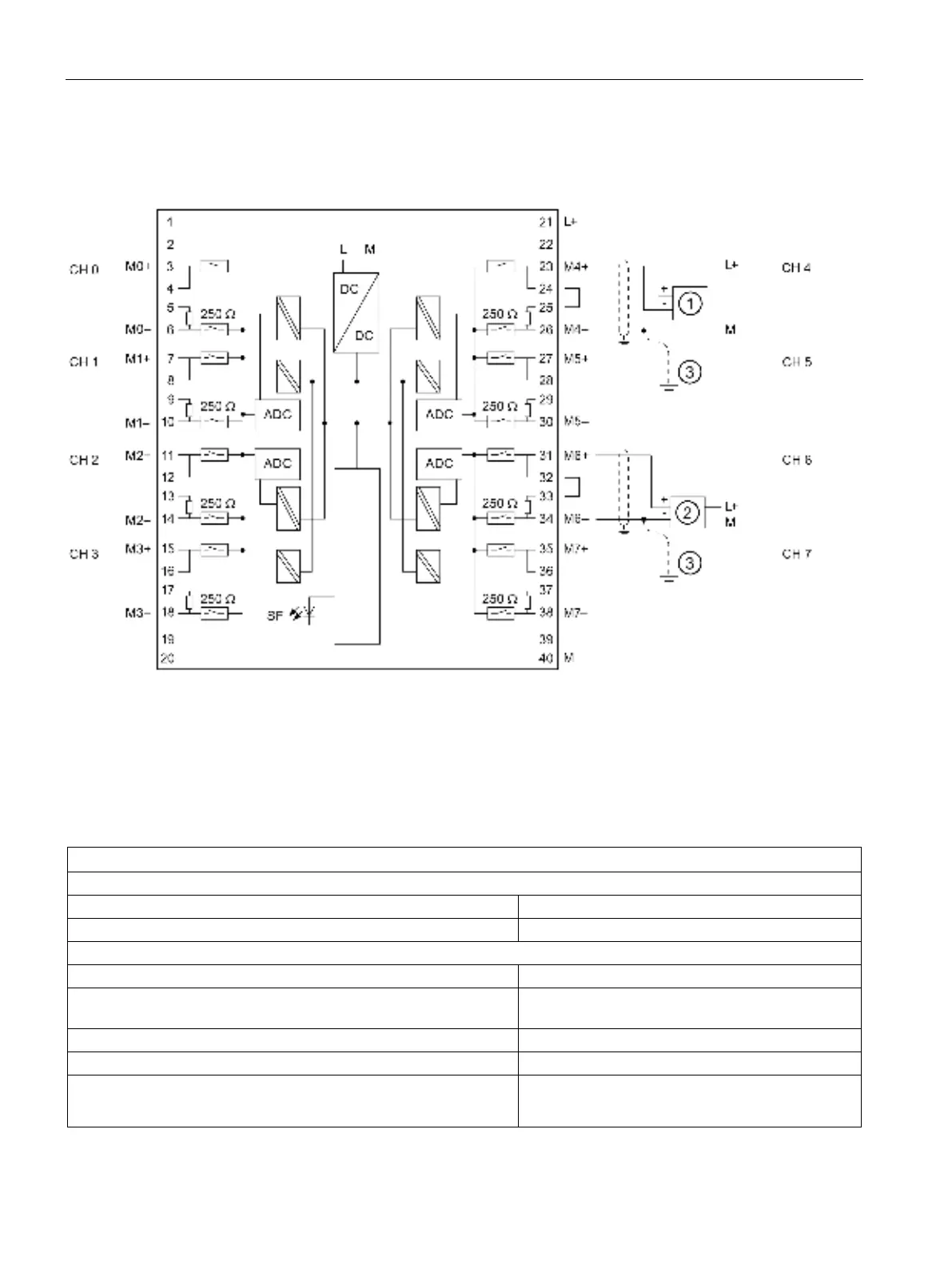

Figure 6-4 Wiring and block diagram

Technical specifications

Dimensions and weight

Dimensions W x H x D (mm)

40 x 125 x 117

Weight

ca. 272 g

Module-specific data

Supports parameter reassignment in RUN

Yes

Response of non-programmed inputs Return the process value which was valid before

configuration

Supports isochronous mode

Number of inputs

Cable length

• shielded

max. 200 m
