Analog modules

6.5 Analog input module SM 331; AI 8 x 14 Bit High Speed; isochrone; (6ES7331-7HF0x-0AB0)

S7-300 Module data

330 Manual, 06/2017, A5E00105505-AJ

Terminal assignment

The diagrams below show the various wiring options.

Wiring: Voltage measurement

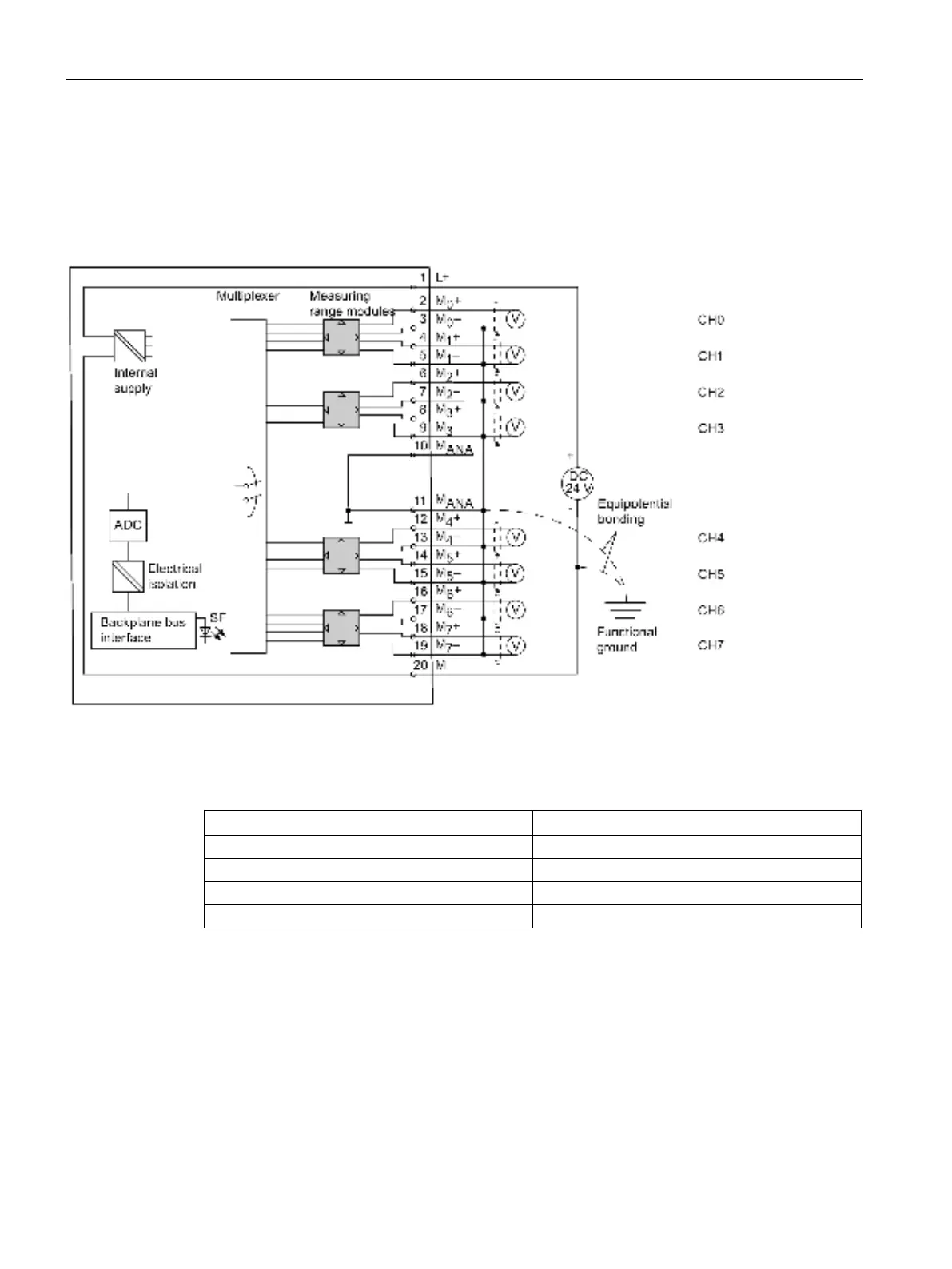

Figure 6-7 Block diagram and wiring diagram

Measuring range module settings

Measuring range

Measuring range module setting

± 1V

± 5V

± 10V

B (Default)

1 V to 5V
