Analog modules

6.6 Analog input module SM 331; AI 8 x 13 Bit; (6ES7331-1KF02-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

341

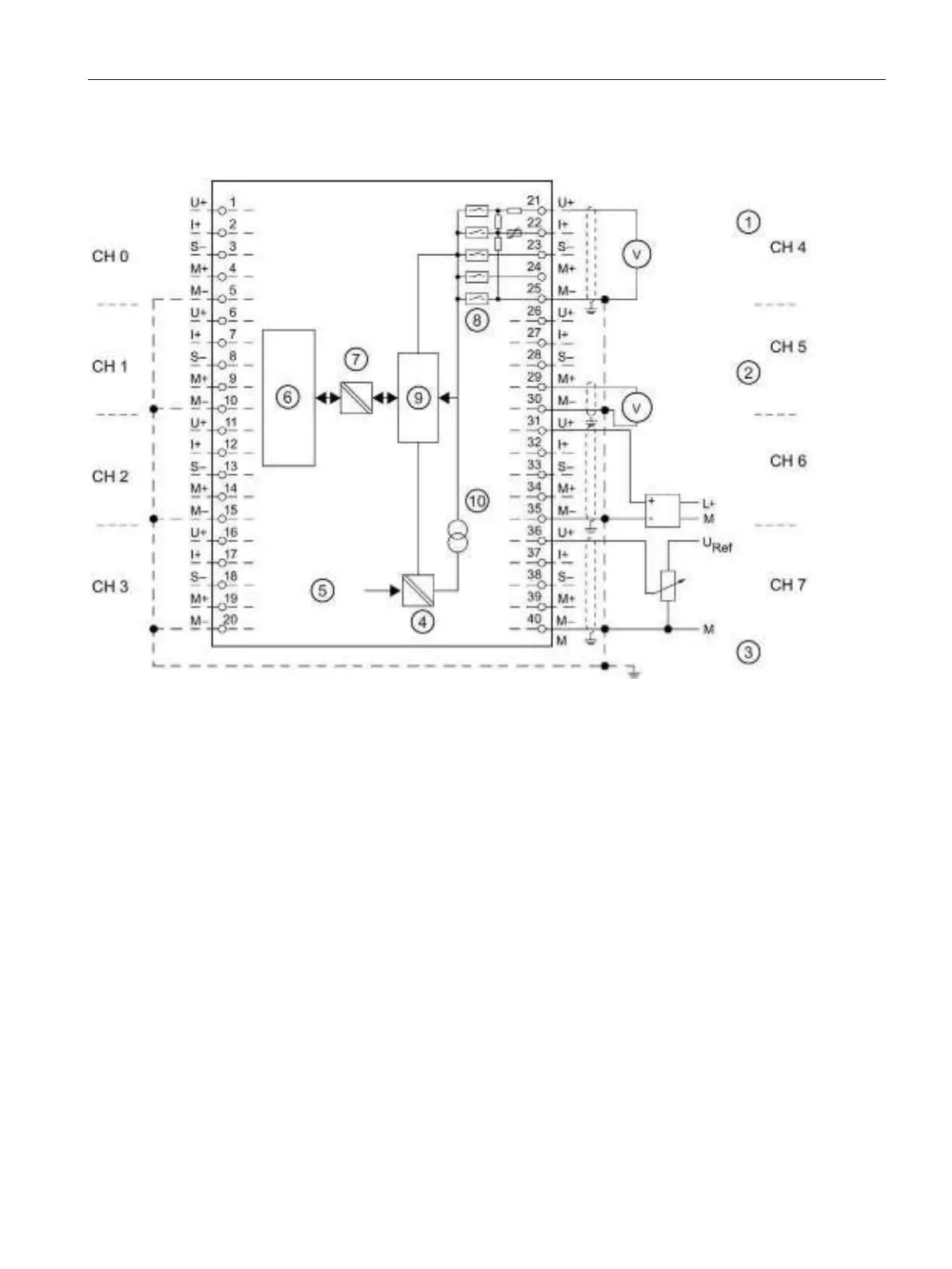

Wiring: Voltage measurement

①

Voltage measurement: (± 5V, ± 10V, 1 ... 5V, 0...10V)

②

Voltage measurement (± 50 mV, ± 500 mV, ± 1 V) (note the input resistance defined in the technical data)

③

Equipotential bonding

④

Internal supply

⑤

+ 5 V from backplane bus

⑥

Logic and backplane bus interface

⑦

Electrical isolation

⑧

Multiplexer

⑨

Analog to Digital Converter (ADC)

⑩

Current source

Figure 6-10 Block diagram and terminal diagram
