Analog modules

6.6 Analog input module SM 331; AI 8 x 13 Bit; (6ES7331-1KF02-0AB0)

S7-300 Module data

342 Manual, 06/2017, A5E00105505-AJ

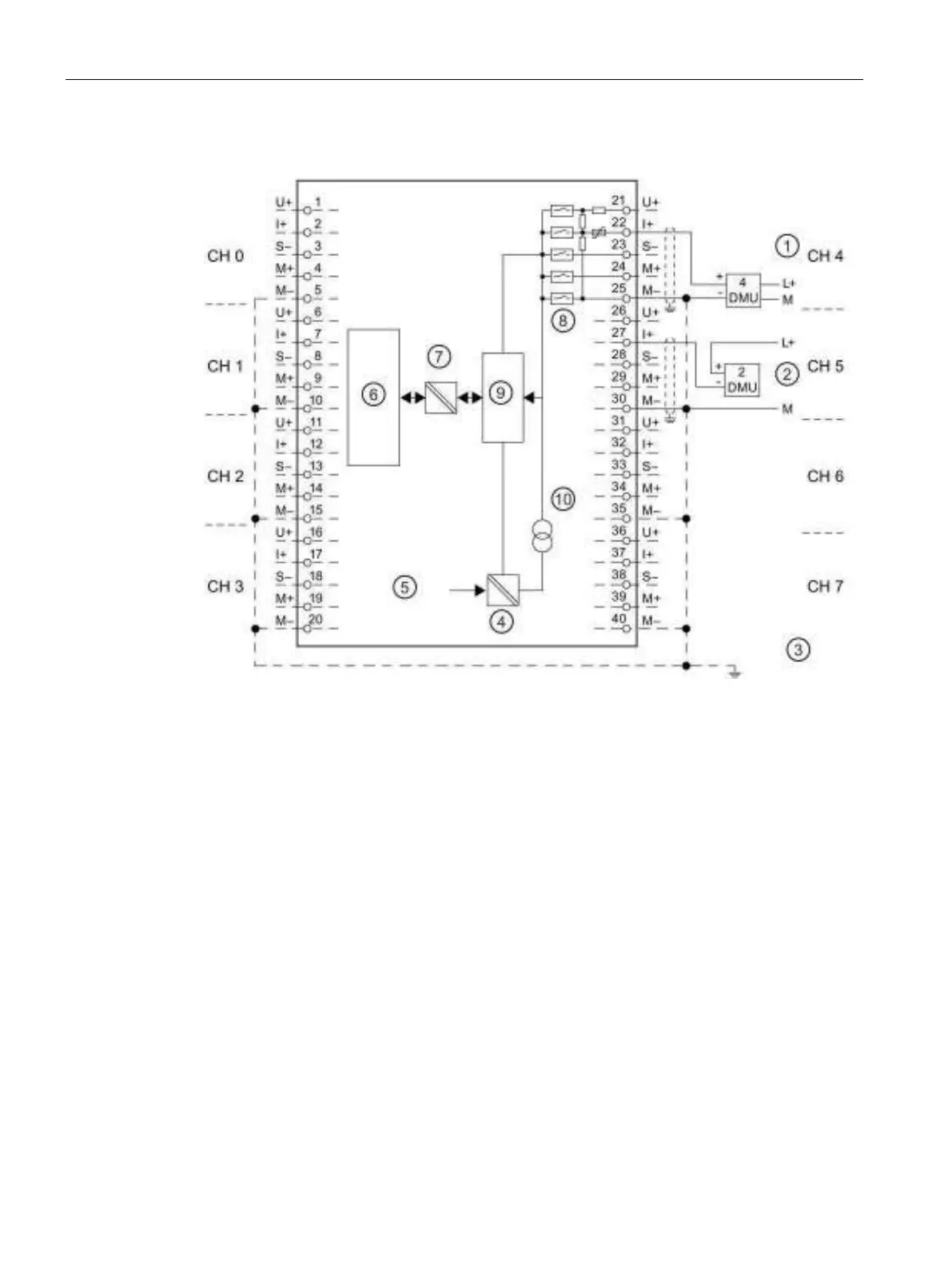

Wiring: 2-wire and 4-wire transducers for current measurement

①

4-wire transducer (0/4 mA to 20 mA or ± 20 mA)

②

2-wire transducer (4 mA to 20 mA)

③

Equipotential bonding

④

Internal supply

⑤

+ 5 V from backplane bus

⑥

Logic and backplane bus interface

⑦

Electrical isolation

⑧

Multiplexer

⑨

Analog to Digital Converter (ADC)

⑩

Current source

Figure 6-11 Block diagram and wiring diagram
