Analog modules

6.10 Analog input module SM 331; AI 8 x TC; (6ES7331-7PF11-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

397

Wiring: Thermocouple via reference junction

All 8 inputs are available as measurement channels if thermocouples are wired via reference

junctions which are regulated to 0 °C or 50 °C.

①

Thermocouple via reference junction

②

Reference junction regulated to 0 °C or 50 °C

for example, compensation box (per channel) or thermostat

③

Analog-to-Digital Converter (ADC)

④

Backplane bus interface

⑤

External cold spot comparison

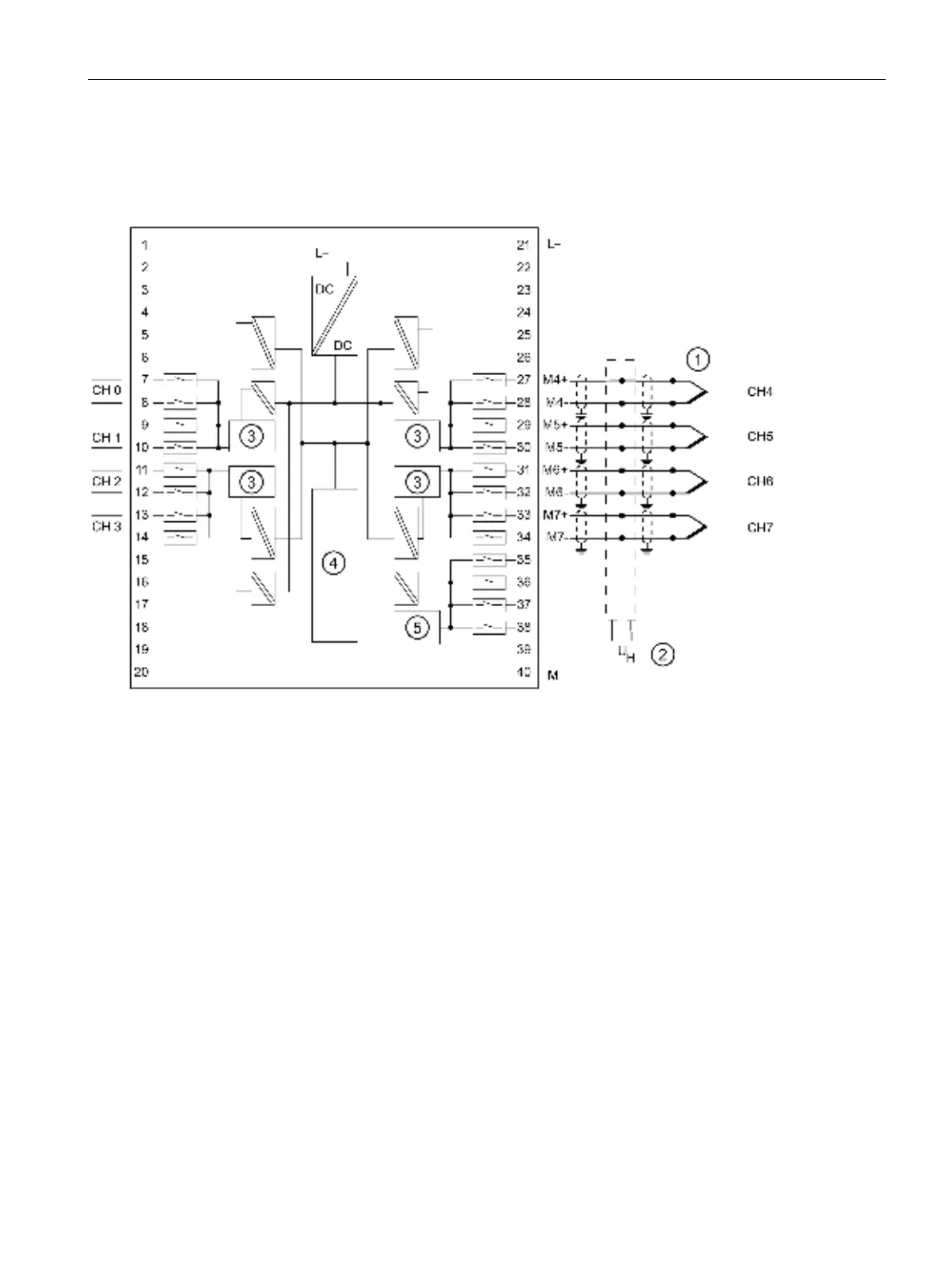

Figure 6-26 Wiring and block diagram
