Analog modules

6.10 Analog input module SM 331; AI 8 x TC; (6ES7331-7PF11-0AB0)

S7-300 Module data

398 Manual, 06/2017, A5E00105505-AJ

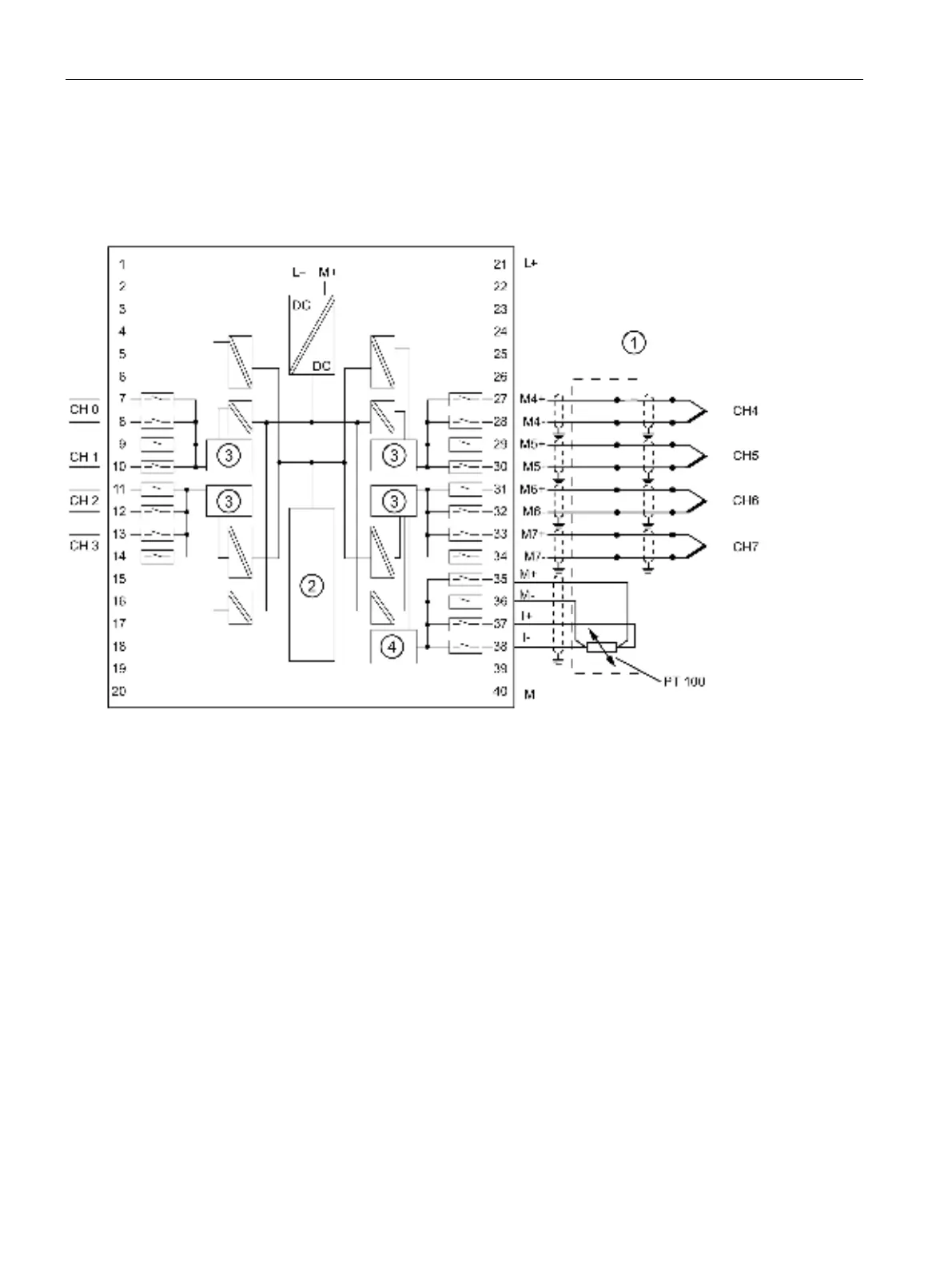

Wiring: Thermocouple with external compensation

With this type of compensation, the temperature of the terminals at the reference junction is

established using a resistance thermometer Pt100 with a temperature range of -25 °C to

85 °C (see terminals 35 to 38).

①

Thermocouple with external temperature compensation

②

Backplane bus interface

③

Analog-to-Digital Converter (ADC)

④

External cold spot comparison

Figure 6-27 Wiring and block diagram
