Analog modules

6.11 Analog input module SM 331, AI 6 x TC isolated (6ES7331-7PE10-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

415

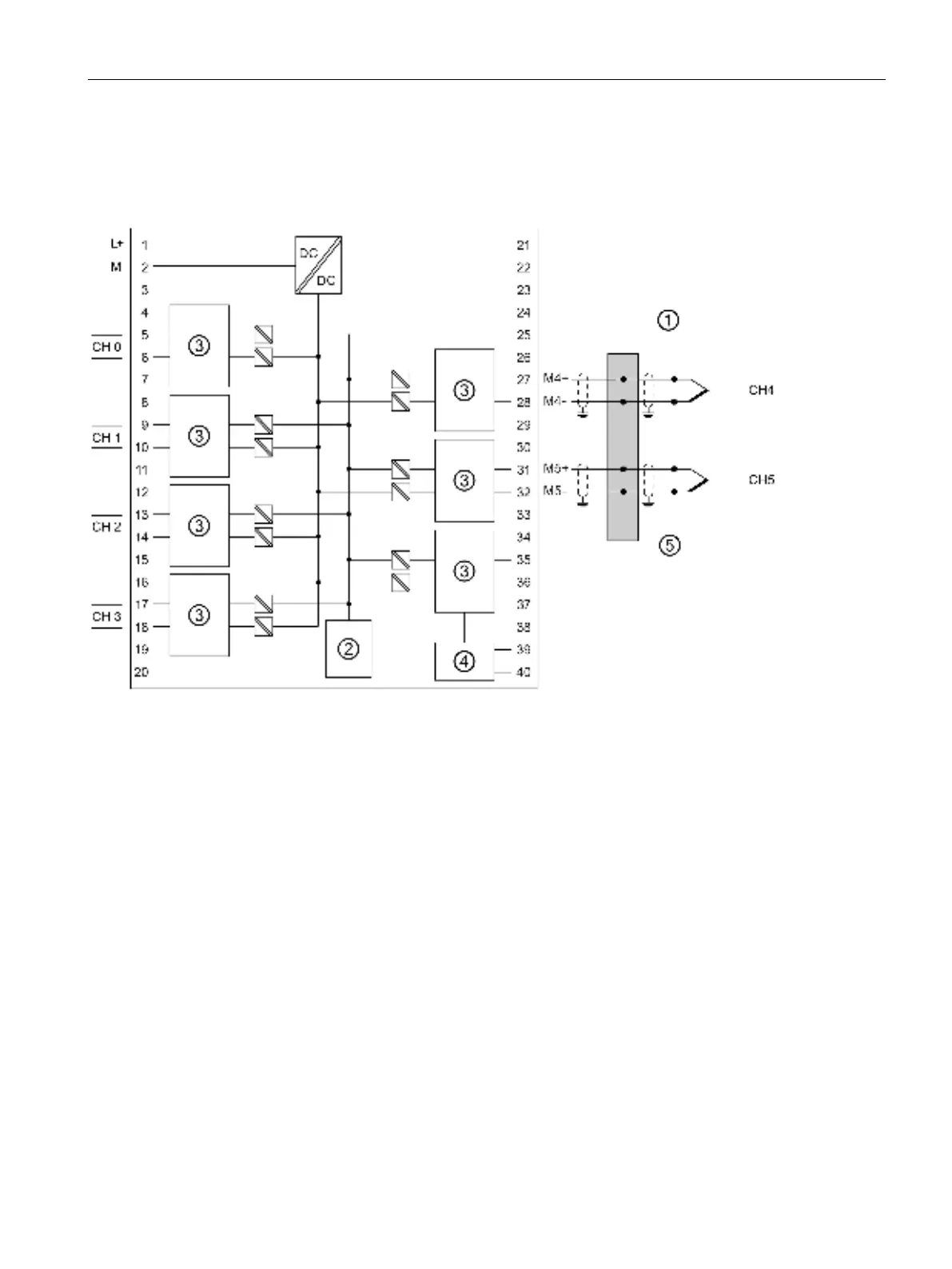

Wiring: Thermocouple via reference junction

With this kind of compensation, the temperature of the terminals at the reference junction is

regulated at 0 °C or 50 °C.

①

Thermocouple via reference-junction terminal with copper wire at front connector

②

Backplane bus interface

③

Analog digital converter (ADC)

④

External cold spot comparison (ADC and current source)

⑤

Reference junction regulated at 0 °C or 50 °C, for example, via compensation box (for each channel) or a thermo-

stat

Figure 6-34 Reference junction
